OMBEA ExpressTab ET01L-4G-FS Assembly Instructions

ExpressTab ET01L-4G-FS
Assembly Instructions
1
2
3
4
All manuals and user guides at all-guides.com

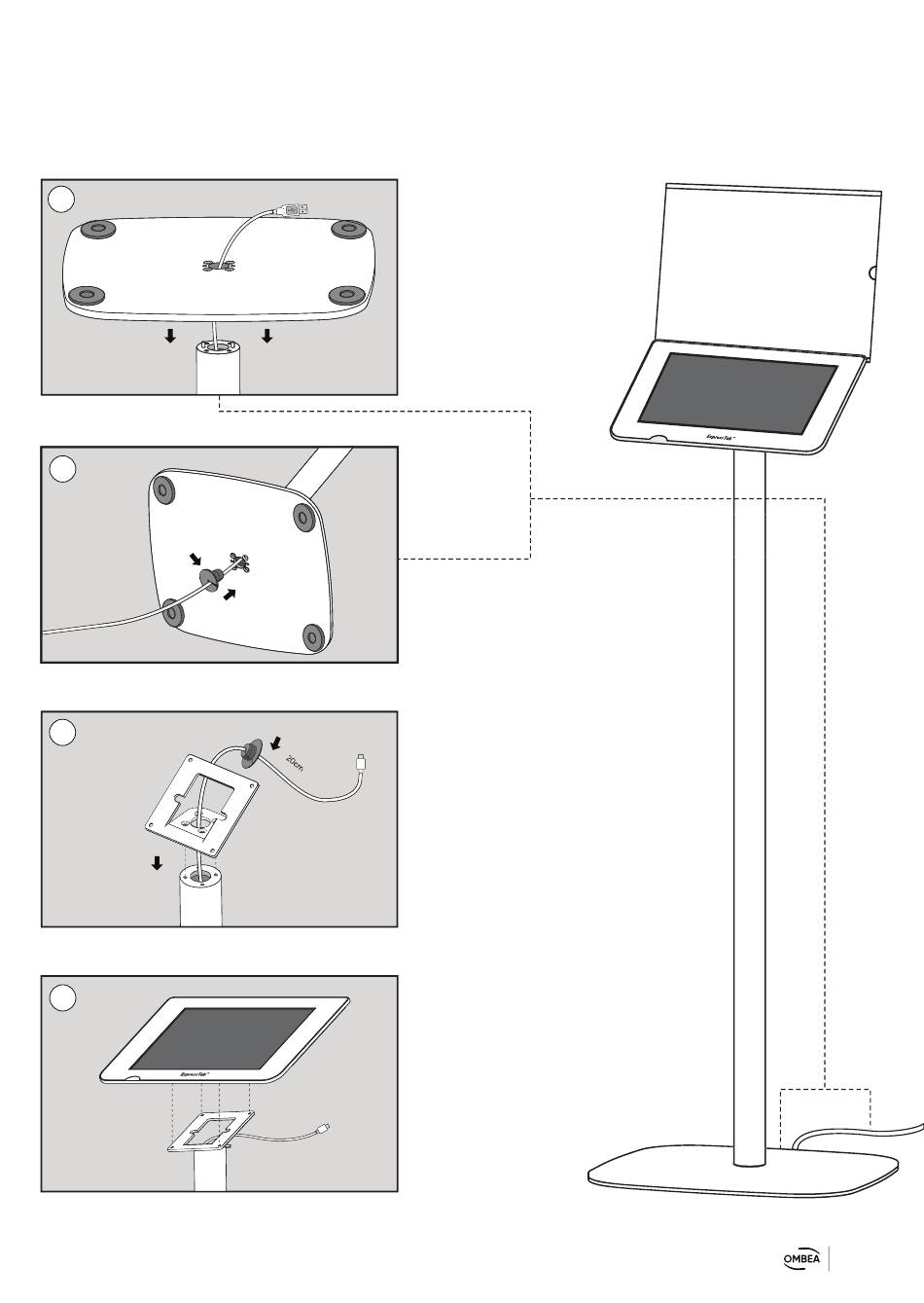

Secure the base to the bottom of the
pole with 4 screws (screw A).
Ensure the USB cable is passed
through the centre of the base and
the 2 pins on the bottom of the pole
sit into the corresponding holes on
the base. Leave the cable taped
down at the top of the pole.
Note: Be careful not to damage
the cable at the top of the pole
by putting the full weight of the
stand on it
Add 1 of the rubber plugs to the hole
at the bottom of the base and feed
the cable through the slit in the plug.
Securely press the plug into the hole.
Turn the stand the right way up and secure
the vesa bracket on the top of the pole with
the 4 screws provided (screw A).
First ensure the cable is through the bottom
of the bracket, as shown in the image.
Once secure, add the other rubber plug at
the top of the pole. You will only need a
maximum of 20cm of cable at the top, the
rest should be pulled through the bottom of
the pole.
Secure the ExpressTab to the bracket with
the 4 x screws (screw B) provided. Check the
tablet is the right way up.
Tip: The stand is heavy and is easiest to
secure the screws while upside down.
Note: please ensure these screws are securely
fastened as this is important to the stability of
the stand.
