Gentec-EO MAESTRO User Manual

Touch screen power & energy monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

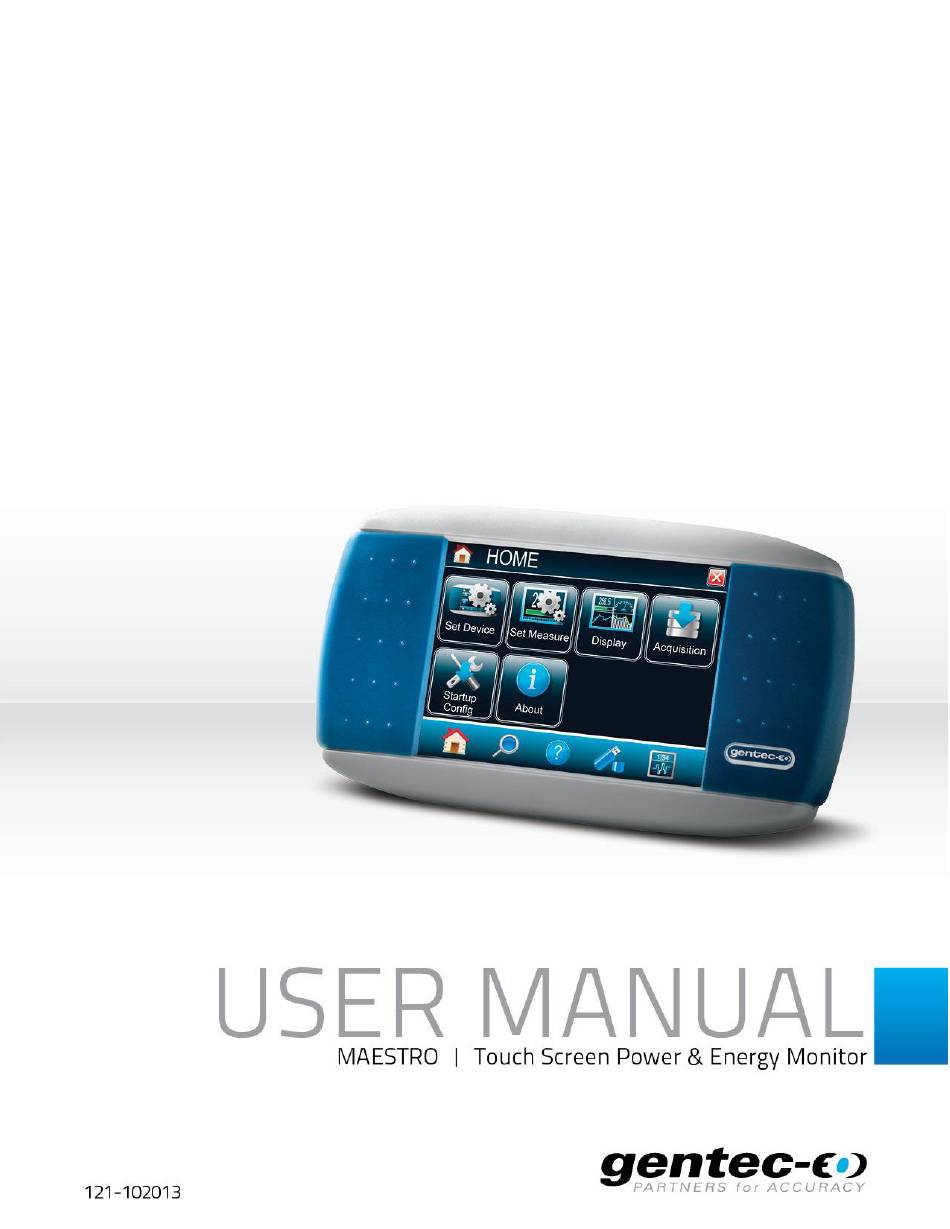

MAESTRO user manual
Revision 9.9
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAESTRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gentec-EO MAESTRO

Summary of Contents for Gentec-EO MAESTRO

  • Page 1 MAESTRO user manual Revision 9.9...
  • Page 2 All Gentec-EO products carry a one-year warranty from the date of shipment on material or workmanship defects when used under normal operating conditions. Gentec-EO will repair or replace, at its sole discretion, any product that proves to be defective during the warranty period.
  • Page 3 Revision 9.9 SAFETY INFORMATION Do not use a Gentec-EO device if the monitor or the detector looks damaged or if you suspect that the device is not operating properly. Appropriate installation must be done for water-cooled and fan-cooled detectors. Refer to the specific instructions for more information.

  • Page 4: Table Of Contents

    1.6. Top panel description ............................11 Getting started................................15 2.1. How to access the different menus of the MAESTRO’s user interface ..........16 2.2. Quick power and energy measurement procedure ..................18 2.3. Description of the MAESTRO navigation menu ..................20 2.4.
  • Page 5 Figure 3. Typical pulse shape of a pyroelectric detector ..................13 Figure 4. MAESTRO startup window ..........................15 Figure 5. Hierarchy of the MAESTRO’s user interface structure ................16 Figure 6. Display parameter menu bar to set the detector zero level ..............19 Figure 7.
  • Page 6 Figure 33. Startup configuration menu window ......................47 Figure 34. About window ..............................48 Figure 35. Search window .............................. 49 Figure 36. Info menu window ............................50 Figure 37. Manage USB menu window ........................51 Figure 38. MAESTRO Ethernet Communication Example application ..............53...

  • Page 7: Maestro

    The MAESTRO provides a statistical analysis of your measurements. It allows you to store data on an external USB key. Moreover, the MAESTRO can be updated by connecting a USB key with the new file available on our website in the download section.

  • Page 8: Specifications

    The 5µV offset can introduce an error into low power measurements with low sensitivity detectors. It is essential to use the zero offset to re-zero the MAESTRO before making a measurement in these conditions. It is always good practice to use the zero offset.
  • Page 9 MAESTRO user manual Revision 9.9 General specifications Digital display 112.9 x 84.7 mm RGB color LCD with touchscreen, 640 x 480 pixels 3 Hz numeric display Display rate 15 Hz bar graph and needle display Scope 500 divisions Data displays...

  • Page 10: Front Panel Description

    Pressing the I/O key quickly when the MAESTRO is turned off turns the MAESTRO on (do not hold the I/O key). To turn the MAESTRO off, press the I/O key. To prevent battery leakage and to increase battery life, we recommend switching the MAESTRO off when not in use.

  • Page 11: Top Panel Description

    PC. If your key is not recognized, try using a new one. Old and slow USB keys are not supported. Ethernet port This interface allows remote control and data transfers between the MAESTRO and a computer that has an Ethernet communication port. External power supply jack...
  • Page 12 Serial interface connector (RS-232, analog out, external trigger) RS-232 The RS-232 interface allows remote control and data transfer between the MAESTRO and a computer, a terminal or any device that has a serial communication port. To use the RS-232 port, you must have a special cable (part number 201860).

  • Page 13: Figure 3. Typical Pulse Shape Of A Pyroelectric Detector

    MAESTRO user manual Revision 9.9 External trigger To use the external trigger, you must use a special cable (part number 201956). The external trigger is TTL compatible. The maximum voltage is 25 volts, the trigger needs a positive voltage, the minimum width is 1 µs. The monitor detects the trigger on the rising side of the external trigger signal.
  • Page 14 PS-310 series version 1 and the PS-330 series version 1. These heads used a different technology and do not have the same pinout configuration. Any attempt to modify connectors of the early version heads to mate with the MAESTRO can result in damage to the monitor.

  • Page 15: Getting Started

    This section contains important information concerning the installation and operation of the MAESTRO. The MAESTRO is delivered ready to use. Just insert a detector head in the probe input jack (item 6 in Figure 2) and press the I/O key. The following window will appear on the monitor (Figure 4). It is separated into four different areas.

  • Page 16: How To Access The Different Menus Of The Maestro's User Interface

    2.1. HOW TO ACCESS THE DIFFERENT MENUS OF THE MAESTRO’S USER INTERFACE The powerful CPU of the MAESTRO, combined with the Windows CE operating system, provides an easy and intuitive access to all of its functions. You control the intuitive interface using the touchscreen. To access any option or functionality, simply touch the appropriate icon or button on the touchscreen.

  • Page 17: Table 2. Maestro Buttons And Icons

    MAESTRO user manual Revision 9.9 A set of different buttons and icons allows you to interact with the MAESTRO’s user interface. The following table describes the different buttons and icons present in the MAESTRO. Table 2. MAESTRO buttons and icons...

  • Page 18: Quick Power And Energy Measurement Procedure

    (not available) 2.2. QUICK POWER AND ENERGY MEASUREMENT PROCEDURE This section applies to all MAESTRO versions. It will show you the fastest way of making a laser power and energy measurement with the MAESTRO and a Gentec-EO power or energy detector.

  • Page 19: Figure 6. Display Parameter Menu Bar To Set The Detector Zero Level

    Revision 9.9 8. The power read by the MAESTRO when no laser beam is incident on the detector may not be exactly zero. For power measures, this is because the detector is not thermally stabilized OR there was a heat source in the field of view of the detector when the MAESTRO was turned on.

  • Page 20: Description Of The Maestro Navigation Menu

    Revision 9.9 2.3. DESCRIPTION OF THE MAESTRO NAVIGATION MENU This section describes the first group of menus essential to the MAESTRO operation. Refer to Figure 5 for a schematic view of the menu structure. The navigation menu bar provides access, at any time, to the five main options by touching the appropriate icon.

  • Page 21: Home

    MAESTRO user manual Revision 9.9 2.4. HOME The home menu allows you to access and change any settings for the MAESTRO and the connected detector head. You can choose between five options:  Set Device controls the MAESTRO basic parameters.

  • Page 22: Set Device

    Revision 9.9 2.4.1. Set device The set device button lets you set and save the MAESTRO with customized parameters. You can set the time and date of the device (not yet available), set the displayed significant digit, set the serial commands, configure the Ethernet and set the language (English, French, German or Japanese).

  • Page 23: Figure 10. Number Of Digits Menu Window

    In order to ease the integration of the MAESTRO with setups using our legacy monitors, select SOLO2 Serial Compatibility. Note that only the ASCII commands are available. This feature is only available when using the USB port for serial communication.

  • Page 24: Figure 11. Serial Commands Menu Window

    MAESTRO user manual Revision 9.9 To use the analog output using the special cable (part number 201958), select Analog Output. The MAESTRO will not need to be rebooted. This output allows the monitoring of the laser average power or energy with external equipment such as a chart recorder, a computer with an analog interface, a voltmeter, etc.

  • Page 25: Figure 12. Ethernet Configuration Menu Window

    IP address to the MAESTRO. If needed, you can change the port number. When you are done with the setup, simply touch the OK button and reboot the MAESTRO. If the address type was set to dynamic, access the Ethernet configuration menu to retrieve the assigned IP address.

  • Page 26: Figure 13. Languages Menu Window

    If you want to cancel the procedure before it is done, you will need to turn off the MAESTRO or plug a keyboard in the USB key port...

  • Page 27: Figure 14. Recalibrating Touchscreen

    MAESTRO user manual Revision 9.9 Figure 14. Recalibrating touchscreen Figure 15. Touchscreen is recalibrated...

  • Page 28: Set Measure

    MAESTRO user manual Revision 9.9 2.4.2. Set measure Options in the Set measure menu define user-adjustable measured data parameters. The button Wavelength can be used to change it in order to set it to the wavelength at which the detector is used. The button Range allows you to adjust the scale in order to obtain the best possible resolution.

  • Page 29: Figure 17. Wavelength Menu Windows

    MAESTRO user manual Revision 9.9 Wavelength The Wavelength button is used to select the proper wavelength at which the detector is used. It applies a correction to adjust for the variation in responsivity at different wavelengths. Pre-programmed wavelength correction factors dedicated to each detector head are available and automatically loaded from the detector EEPROM, for version 5 and higher detector heads.

  • Page 30: Figure 18. Popup Window To Enter A User-Defined Wavelength

    When the wavelength is set, touch the OK button to save the changes or touch the X button to ignore the changes. The MAESTRO only allows you to choose values that fall within the detector's range. If you enter an invalid value, a menu pops up to signal the error, and the MAESTRO automatically selects the default value which is the wavelength used for calibration at Gentec-EO during manufacturing or subsequent service.

  • Page 31: Figure 19. Range Menu Window

    To be sure to measure lower energies, set the scale manually to the lowest level and set the autoscale by pressing the Auto button. The MAESTRO will autoscale to the best scale. In this case, the pulses that saturated the scale while the autoscale was searching for the best scale will be invalid.

  • Page 32: Figure 20. Measure Mode Menu Window For A Thermopile Detector Head

    (you must enter the beam diameter after pressing OK) This function allows you to measure the energy contained in a laser pulse with a Gentec-EO power detector head. This mode of operation gives access to the same options as in the case of an energy pyroelectric joulemeter. The only restriction is that the time delay ...
  • Page 33 Also note that if an acquisition is done while the MAESTRO is in one of these modes, the saved data will also be in the same format. The moving average is available for those head types: ...

  • Page 34: Figure 21. Corrections Menu

    This number will be multiplied with or added to the actual measured value to calculate the corrected value. Once the correction values are set, touch the OK button to save the changes or the X to ignore the changes. The MAESTRO will then display the corrected value.

  • Page 35: Figure 22. Trigger Level Window

    Figure 22. Trigger level window Caution! If you select a high value trigger level, the MAESTRO may not be able to detect all the values of widely varying energy levels in auto range mode. The auto range function uses the energy level of the last pulse to set the scale level.

  • Page 36: Display

    Figure 23. Display menu window The MAESTRO allows you to have a single full-screen display or a dual-screen display. To select the desired display, touch the appropriate button. If you choose dual display, one of the displays must be in real time.

  • Page 37: Table 4. List Of The Display Parameters Menu Bar Options

    OR there was a heat source in the field of view of the Zero detector when the MAESTRO was turned on (for example, the hand or body of the user). Use this function once your power meter has achieved thermal equilibrium to ensure accurate measurements.

  • Page 38: Figure 25. Real-Time Display

    It is very useful for rapidly varying values. Figure 25. Real-time display With a MAESTRO, you can also choose between the high-resolution mode for the most significant digits available or the standard resolution to filter out unimportant fluctuations in measurement. You can adjust the...

  • Page 39: Figure 26. Scope Time Display

    MAESTRO user manual Revision 9.9 Scope display The Scope display gives a quick look at the laser beam long-term stability and trend as a function of time. The current data is also displayed at the top of the graphic display.

  • Page 40: Figure 27. Digital Needle Display

    MAESTRO user manual Revision 9.9 Needle display When you select Needle, a graphical interface shows a real-time digital needle. The deflection of the digital needle is proportional to the real-time measurement. The 0 is on the left-hand side of the needle, whereas the range’s maximum value is on the right-hand side of the needle.

  • Page 41: Figure 28. Averaging Display

    The averaging display is a bar graph that presents the statistics of a set of measures as a function of time. The MAESTRO measures a series of data during a user-defined period of time. Each bar represents the maximum, average and minimum values of the measured data. The top of the white bar represents the minimum value while the top of the blue bar represents the maximum value.

  • Page 42: Figure 29. Statistics Display

    You must understand your sample size well enough to know if this additional digit is significant. The MAESTRO uses default sample parameters unless you set them yourself. Touch the settings button to access the Statistics settings to set up the data sampling parameters for calculating the statistics. Use the defaults or select your own duration sample period to do the statistics.

  • Page 43: Figure 30. Statistics Settings Popup Window

    Figure 30. Statistics settings popup window You can set the MAESTRO either to calculate the statistics for a single sample and stop or to repeat continuously. Take data for a few seconds or a few days. You have the flexibility to handle any application, from analyzing a single short pulse with high resolution to sampling performance over a period of months.

  • Page 44: Table 5. Statistical Parameters

    MAESTRO user manual Revision 9.9 The statistical parameters that are calculated are listed in Table 5. Table 5. Statistical parameters Statistical parameters Power Energy Definition Current value   Value of the most recent measurement Average value Average from the start of values in the sample, E or P ...

  • Page 45: Acquisition

    2.4.4. Acquisition The MAESTRO allows you to easily acquire data and save it on a USB key for post analysis and processing. If you did not connect a USB key to the MAESTRO, the monitor will prompt an error message, and the acquisition option will not be available.

  • Page 46: Table 6. Data Acquisition Parameters

    The stop command stops the data recording before the end of the acquisition total duration. Even if the acquisition is stopped, the MAESTRO will continue to provide measurements to the display. If you want to be able to open the file in Excel, use .csv in your file name...

  • Page 47: Figure 33. Startup Configuration Menu Window

    MAESTRO’s current configuration will be saved. Even if the settings are changed after this operation, these changes will not be saved, and at the startup, the MAESTRO will be configured in the same manner as when the apply button was touched.

  • Page 48: About

    You can also find all the information concerning Gentec-EO for service support. If you should need help or additional information on the MAESTRO or any Gentec-EO products, do not hesitate to contact us. We will be glad to help you.

  • Page 49: Search

    Revision 9.9 2.5. SEARCH The Search option allows you to quickly look up and find the most common of the MAESTRO’s functions. The functions are displayed in alphabetical order. Just touch one of the displayed functions to directly access the corresponding menu window.

  • Page 50: Info

    MAESTRO user manual Revision 9.9 2.6. INFO The info menu window displays the information about the detector head connected to the MAESTRO and the current measurement settings. In a quick glance, you will be able to see the information listed below. ...

  • Page 51: Manage Usb

    Installation for Windows™ Plug the MAESTRO into a USB port on the PC. If the PC supports USB 1.1, Windows™ will detect the new device and prompt you for the software drivers. A “Found New Hardware – USB Device” window will open...

  • Page 52: Setting Up Communication To The Maestro

    “Local Echo” or the equivalent setting. Test the connection In the terminal window, type *VER. If the response you receive tells you the version of your MAESTRO, you are successfully connected and ready for serial command action. 3.2. ETHERNET COMMUNICATION The MAESTRO Ethernet communication is based on Transmission Control Protocol (TCP).

  • Page 53: Figure 38. Maestro Ethernet Communication Example Application

    9. Reboot the device. 10. Open the MAESTRO Ethernet Communication Example application on your PC. 11. Enter the MAESTRO’s IP address and port number. If the address type is dynamic, return to the Ethernet configuration page to retrieve the assigned address.

  • Page 54: Pc-Gentec-Eo User-Friendly Serial Data Software

    (www.gentec-eo.com). This software basically transforms your PC screen into a large MAESTRO screen enabling you to control and see your information from a distance, while saving data. LabVIEW™ drivers are also available to let you customize MAESTRO applications on your PC.

  • Page 55: Maestro Binary Mode Description

    Measurement in joule = current scale *value in decimal/16382 Example: For 151 mJ on the 300 mJ scale on Channel 1, the MAESTRO will send you: 40B6 HEX VALUE, where: 10 = 0 1000000. The first second bit (0) is the order of the MSB.

  • Page 56: Serial Command Directory

    Sets the internal trigger level when measuring pulse energy. Get Trigger Level Returns the trigger level value. Get Mode Display Returns the current display mode on MAESTRO. Measurement commands Measurement data acquisition Query Current Value Gets the value currently displayed on the screen.

  • Page 57: Serial Commands

    MAESTRO user manual Revision 9.9 3.4.4. Serial commands 3.4.4.1. Serial command format The serial command format is as such: *MUL + 8-character numeral value, e.g. « *MUL1.000000 » or « *MUL-1.34e-3 » or «*MUL0.000543 » *OFF + 8-character numeral value like above *STL + 4-character numeral value like «...
  • Page 58 MAESTRO user manual Revision 9.9 Range index Range 10 milliwatts or millijoules 30 milliwatts or millijoules 100 milliwatts or millijoules 300 milliwatts or millijoules 1 Watt or Joule 3 watts or joules 10 watts or joules 30 watts or joules...
  • Page 59 MAESTRO user manual Revision 9.9 Set range down This command is used to force the display of the current data into a lower range. Command Parameters Return None Set autoscale This command is used to force the display into autoscale.

  • Page 60: Measurement Commands - Data Acquisition

    Get mode display This command returns the MAESTRO’s power mode. Depending on the head, it can be the power mode in W, the power mode in dBm (DBM), the energy mode in J, the single shot energy mode in J (SSE), or simply no detector is connected to the MAESTRO.
  • Page 61 MAESTRO user manual Revision 9.9 Continuous transmission of data This command is used to send data to the serial port, according to the data sampling setting. The maximum transfer speed is 200 Hz. Power values are displayed in watts, with six significant digits. Energy values are displayed in joules, with five significant digits.

  • Page 62: Measurement Commands - Setup

    MAESTRO user manual Revision 9.9 Set the joulemeter binary mode This command is used to set the monitor in binary or ASCII mode. Refer to section 3.4.2 for the MAESTRO binary mode description. This is for joulemeters only. Command Parameters...

  • Page 63: Measurement Commands - Control

    MAESTRO user manual Revision 9.9 Get personal wavelength This command returns the wavelength in nm being used on the detector. Text command Parameters Return None Returns the wavelength value in nm Example Command: *GWL Answer: PWC: 1064<CR><LF> 3.4.4.5. Measurement commands – Control...
  • Page 64 Return 8-character numeral value The following example sets multiplier = 33. Example Command: *MUL00000033 Answer: *MUL3.3000e1 Get user multiplier This command returns the MAESTRO’s correction multiplier value. Text command Parameters Return None Current multiplier value Example Command: *GUM Answer: User multiplier: 1<CR><LF>...
  • Page 65 Answer: *OFF1.500e-3 The other option available is the zero-offset. The zero-offset operation is done first, before those of the multipliers and offsets. Get user offset This command returns the MAESTRO’s correction offset value. Text command Parameters Return None Current offset value...

  • Page 66: Instrument And Detector Information Commands

    0: off Example Command: *GAT Answer: Attenuator: 0<CR><LF> 3.4.4.6. Instrument and detector information commands Return acknowledgement This command is used to verify if the MAESTRO is still connected and responsive. Text command Parameters Return None Example Command: *KPA Answer: ACK<CR><LF>...
  • Page 67 Version number and device type. Example Command: *VER Answer: Maestro Version 1.04.26<CR><LF> Query status This command is used to query the device to get information about the following characteristics:  Measure mode (not yet available)  Maximum, minimum and current scale ...
  • Page 68 MAESTRO user manual Revision 9.9 Hexadecimal structure Converted Definition Valid Address Value Value 0011 0000 Minimum wavelength MSB (nm) 0012 0001 Is attenuator available LSB (1= yes 0 = no) 0013 0000 Is attenuator available MSB (1= yes 0 = no)
  • Page 69 MAESTRO user manual Revision 9.9 are written on 32 bits, which means that all the values are written on two lines. The first line represents the LSB, and the second line represents the MSB. The following table shows the output when a XLP12-3S-H2-D0 serial number 199672 is connected to the MAESTRO.

  • Page 70: Error Messages

    MAESTRO user manual Revision 9.9 Hexadecimal structure Converted Definition Valid Address Value Value 0032 0000 Is anticipation on? LSB 0033 0000 Is anticipation on? MSB 0034 0000 Is zero offset on? LSB 0035 0000 Is zero offset on? MSB 0036...

  • Page 71: Legacy Monitor Serial Commands

    Revision 9.9 3.4.5. Legacy monitor serial commands The MAESTRO has the ability to emulate the serial commands of our legacy monitors. Set the MAESTRO in the home/set device/serial commands to SOLO2 serial compatibility. You can make it the default setting when the MAESTRO boots up in the same window.
  • Page 72 MAESTRO user manual Revision 9.9 Display commands Command name Command Description Set scale Manually sets scale. Set high-resolution display SHL Changes to high-resolution display. Set dBm display Changes the on-screen display to dBm. Measurement commands Measurement data acquisition Command name...

  • Page 73: Commands (Solo2)

    MAESTRO user manual Revision 9.9 3.4.5.2. Commands (SOLO2) *SSA Set scale This command is used to force the display of the current data into a specific range. The lower range is always zero, and the higher ranges can be found in the table below. The autoscale applies the best scale for the current values in real time.
  • Page 74 300 megawatts or megajoules Example Command: *SSA<space>10 m<enter> Answer: ACK<CR><LF> and the MAESTRO is set to the 10 mW or 10 mJ range *SHL Set high-resolution display This command is used to add significant digits to the on-screen reading. Text command...
  • Page 75 MAESTRO user manual Revision 9.9 *VSU Query statistic data This command is used to read all the statistics data, provided that the device has previously been set into statistics mode. Text command Parameters Return Statistics In text mode, all the data and relevant identifiers are formatted into a tab-separated string. In binary mode,...
  • Page 76 MAESTRO user manual Revision 9.9 *CAU Download data This command is used to send data to the serial port, according to the data sampling setting. Text command Parameters Return None Data in ASCII *CSU Stop the CAU command This command is used to stop the real-time transfer enabled by the CAU command.
  • Page 77 Answer: ACK<CR><LF> *SOU Set offsets This command is used to set the offset’s value. Note that the MAESTRO only allows one offset instead of two unlike the SOLO2. This means that only offset 1 can be set. Text command Parameters Return Offset 1 + <Offset value>...
  • Page 78 Default: off *VER Query version This command is used to query the device to get information about the firmware version and the device type. Text command Parameters Return Version number and device type Example Command: *VER<enter> Answer: Maestro version 1.04.26...
  • Page 79 MAESTRO user manual Revision 9.9 *HEA This command is used to query the model name of the current head. Text command Parameters Return Name of the current head Example Command: *HEA<enter> Answer: Head: PH100-Si<CR><LF> *BAT Query battery power This command is used to query the device battery’s remaining power. In text mode, it returns a string mentioning whether the power is low or high.

  • Page 80: Error Messages For Solo2 Serial Mode

    MAESTRO user manual Revision 9.9 3.4.5.3. Error messages for SOLO2 serial mode Error Comment Error 1: command not found Command is invalid. Error 2: invalid parameter The parameter value is out of valid range or not of expected type (text, numeric, flag).

  • Page 81: Maintenance

    The MAESTRO may not function properly when the battery level is very low. In which case, connect the power supply to the MAESTRO to recharge the battery. You can operate the MAESTRO by plugging it into a USB port when the battery is low, or even removed, but it will not charge. Charging requires the external power supply.

  • Page 82: Declaration Of Conformity

    MAESTRO user manual Revision 9.9 5. DECLARATION OF CONFORMITY Application of Council Directive(s): 2014/30/EU EMC Directive Manufacturer’s Name: Gentec Electro Optics, Inc. Manufacturer’s Address: 445, avenue Saintt-Jean Baptiste, Suite 160 (Québec) Québec G2E 5N7 Canada European Representative’s Name: Laser Components S.A.S.

  • Page 83: Ukca Declaration Of Conformity

    MAESTRO user manual Revision 9.9 6. UKCA DECLARATION OF CONFORMITY Application of Council Directive(s): 2014/30/EU EMC Directive Manufacturer’s Name: Gentec Electro Optics, Inc. Manufacturer’s Address: 445, avenue Saint-Jean Baptiste, Suite 160 (Québec), Canada G2E 5N7 European Representative’s Name: Laser Components S.A.S.

  • Page 84: Appendix A: Qed

    When using an oscilloscope or When using a Gentec-EO MAESTRO, above. Make sure that the energy level is below the detector’s damage threshold and your laser still has good stability.

  • Page 85: Appendix B: Weee Directive

    8. APPENDIX B: WEEE DIRECTIVE Recycling and separation procedure This section is used by the recycling center when the monitor reaches its end of life. Breaking the calibration seal or opening the monitor will void the MAESTRO warranty. The complete Monitor contains: ...
  • Page 86 MAESTRO user manual Revision 9.9...
