- Page 1 Operation Manual PAM-SDU SD/USB MODULE * 본 제품을 사용하기 전에 반드시 방송방식 및 전원 전압을 확인하여 사용하시기 바랍니다.
- Page 2 Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Table Of Contents
Contents Welcome ................4 Unpacking ................4 Installation Environment.................5 Important Safety Instructions ..........5 Features ................7 Contents and Accessories ..........7 Part Names and Function ...........8 Block Diagram..............11 Specification..............12 Service Procedures ................13 Schematic ................13 Parts List ................13 Warranty ................13... -
Page 4: Welcome
Welcome A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 5: Installation
11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the ap- paratus. When a cart is used, use caution when moving the cart/ap- S3125A PAM-SDU(SD/USB MODULE) - Page 6 - DO NOT OPEN THE CASE OR ATTEMPT REPAIRS OR MODIFICATIONS YOURSELF This product contains no user-serviceable parts. Refer all maintenance to qualified Inter-M service personnel. Opening the case and/or tampering with internal cir- cuitry voids the warranty. - ALWAYS POWER OFF BEFORE MAKING CONNECTIONS Always turn the AC mains OFF before connecting or disconnecting cables.
-
Page 7: Features
※ It cannot be used in No.1 bay of PAM-120A. Contents and Accessories 1. PAM-SDU x 1EA 2. Screws for PAM-Series x 4EA 3. Power and Audio Cable x 1EA 4. Operation Manual x 1EA... -

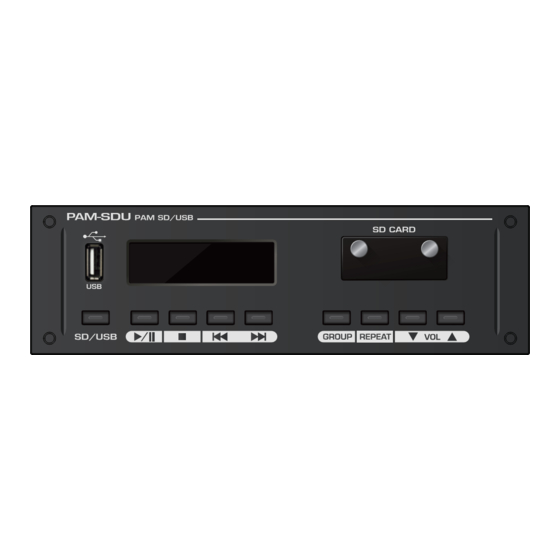

Page 8: Part Names And Function
This is a terminal to mount USB memory, which can play audio file from USB. 2. OLED DISPLAY This is a window to display status information of PAM-SDU. The sound source file, FOLDER, TRACK, playback time, RE- PEAT status, volume information, etc., are displayed. - Page 9 REPEAT ALL: Repeats all the folders and tracks in order. REPEAT ONE: Repeats the currently playing sound source file. REPEAT FLD: Repeats the sound source files in the currently playing folder in order. RANDOM ALL: Plays all the folders and tracks randomly. PAM-SDU(SD/USB MODULE)
- Page 10 You can adjust the output volume from 100 (maximum) to 0 (minimum) by each level. Each time you press the VOLUME button, the volume is in- creased or decreased step by step. Press and hold the VOLUME button to increase or decrease the volume continuously. PAM-SDU(SD/USB MODULE)
-
Page 11: Block Diagram
Block Diagram PAM-SDU(SD/USB MODULE) -
Page 12: Specification
Operating temperature -10˚C~+40˚C Power Source DC 24V Weight(Set) 0.47kg/1.04lb 184(W) x 55(H) x 182(D)mm Dimensions(Set) 7.24(W) x 2.16(H) x 7.16(D)in * Design and specification are subject to be changed for the improvement of product quality without pre notice. PAM-SDU(SD/USB MODULE) -
Page 13: Service
To obtain specific warranty information and available serv- ice locations contact Inter-M directly or the authorized Inter- M Distributor for your specific country or region. PAM-SDU(SD/USB MODULE) - Page 14 NOTE...
- Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
