- Page 1 Operation Manual PAM-BTU PAM Bluetooth USB MODULE ® * 본 제품을 사용하기 전에 반드시 방송방식 및 전원 전압을 확인하여 사용하시기 바랍니다.
- Page 2 Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Table Of Contents
Contents Welcome ................4 Unpacking ................4 Installation Environment.................5 Important Safety Instructions ..........5 Features ................7 Contents and Accessories ..........7 Part Names and Function ...........8 Method to Bluetooth Module ...........10 ® Block Diagram..............15 Specification..............16 Service Procedures ................17 Schematic ................17 Parts List ................17 Warranty ................17... -
Page 4: Welcome
Welcome A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 5: Installation
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the ap- paratus. When a cart is used, use caution when moving the cart/ap- S3125A PAM-BTU(PAM Bluetooth USB MODULE) ®... - Page 6 - DO NOT OPEN THE CASE OR ATTEMPT REPAIRS OR MODIFICATIONS YOURSELF This product contains no user-serviceable parts. Refer all maintenance to qualified Inter-M service personnel. Opening the case and/or tampering with internal cir- cuitry voids the warranty. - ALWAYS POWER OFF BEFORE MAKING CONNECTIONS Always turn the AC mains OFF before connecting or disconnecting cables.
-
Page 7: Features
※ It cannot be used in No.1 bay of PAM-120A. Contents and Accessories 1. PAM-BTU x 1EA 2. Screws for PAM-Series x 4EA 3. Power and Audio Cable x 1EA 4. Operation Manual x 1EA... -

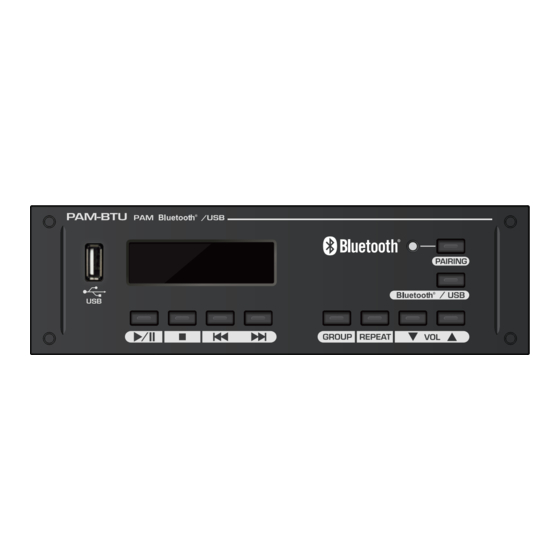

Page 8: Part Names And Function
1. USB TERMINAL This is a terminal to mount USB memory, which can play audio file from USB. 2. OLED DISPLAY This is a window to display status information of PAM-BTU. The USB play information, Bluetooth connecting status, are ®... - Page 9 (minimum) by each level. - Each time you press the VOLUME button, the volume is in- creased or decreased step by step. - Press and hold the VOLUME button to increase or decrease the volume continuously. PAM-BTU(PAM Bluetooth USB MODULE) ®...
-
Page 10: Method To Bluetooth Module
1. How to install the module 1) Turn off the PAM-Series amplifier before installation. 2) Connect the PAM-BTU module to the terminal of the PAM-Se- ries main body using the enclosed 5-pin connector. Then, slide the module into the slot until it is fully mounted. Terminal infor- mation by product is as follows: ※... - Page 11 - PAM-340A/480A PAM-340A/480A HEAT SINK MAIN B’D CN10 CP701 PAM-BTU - PAM-510/520 PAM-510/520 HEAT SINK MAIN B’D CN_CD CP701 PAM-BTU PAM-BTU(PAM Bluetooth USB MODULE) ®...
- Page 12 Bluetooth® Selection button to display BT Standby on its OLED display. 2) PAIRING - Press the PARING button in the PAM-BTU to switch into Pairing mode. - Once in Pairing mode, you can search for the PAM-BTU on the Bluetooth device to connect to.
- Page 13 ※ The Pairing mode lasts for 2 minutes and 30 seconds, and then it switches back to BT Standby mode. - Check whether the PAM-BTU is detected in the Bluetooth device to connect. When you select a ® device to connect to, the pairing is complete.
- Page 14 - Auto-Connect Function: The Bluetooth® device that has being connected once is automatically connected without the pairing process by turning the PAM-BTU's power ON / OFF or activating / deactivating the Bluetooth mode of the Blue- ® tooth device to be connected. (The last con- ®...
-
Page 15: Block Diagram
Block Diagram PAM-BTU(PAM Bluetooth USB MODULE) ®... -
Page 16: Specification
Operating Power DC 24V Weight(Set) 0.46kg/1.01lb 184(W) x 55(H) x 182(D)mm Dimensions(Set) 7.24(W) x 2.16(H) x 7.16(D)in * Design and specification are subject to be changed for the improvement of product quality without pre notice. PAM-BTU(PAM Bluetooth USB MODULE) ®... -
Page 17: Service
To obtain specific warranty information and available serv- ice locations contact Inter-M directly or the authorized Inter- M Distributor for your specific country or region. PAM-BTU(PAM Bluetooth USB MODULE) ®... - Page 18 NOTE...
- Page 19 NOTE...
- Page 20 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
