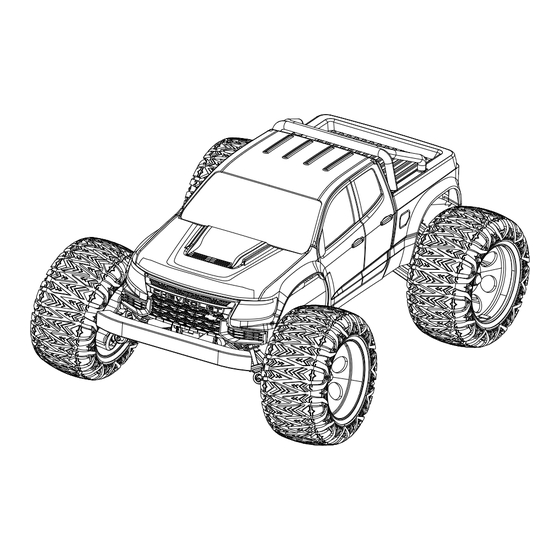

- Page 1 TAKE CONTROL, LET'S ROLL 1:18 Chevrolet Colorado 1/18 科罗拉多大脚卡车 Instruction Manual 操作手册...
- Page 3 安装车壳 Install Car Shell Aline the 4 holes of the car shell with holders, then install it. 将车壳4个孔位对准车壳支架装入。 Insert the 4 clips into the holes to lock the car body. 将4个车壳扣插入锁紧车壳。...
- Page 4 抬头轮安装 Install the Head Wheels Fix the head wheels into the rear of the car via 4 screws. 将抬头轮架用4颗螺丝固定在车 身尾部。 (Please disassemble 2 screws of rear bumper firstly) （车尾2颗螺丝需先拆下） 安装电池 Install the Battery ①Turn the battery lock knob and flip up the cover; ②Connect the receiver plug to the battery;...
- Page 5 EAZYRC 1:18 Chevrolet Colorado with excellent grip, making it easy to run smoothly on almost any road.
- Page 6 产品参数 Specification 140mm 42mm 174mm 310mm 222mm ● 车长: 310mm ● Length:310mm ● Width:222mm ● 车宽: 222mm ● Height:140mm ● 车高: 140mm ● Wheelbase:174mm ● 轴距: 174mm ● Minimum Ground Clearance: 42mm ● 最小离地间隙: 42mm ● Motor: 370 brushless motor ●...
- Page 7 遥控器 Transmitter Panel Flip Cover Steering Trim (ST.TRIM +) 功能面板保护盖 方向微调按键（ST.TRIM+） Steering Reverse Switch (ST.REV) Throttle Trim (TH.TRIM +) 方向倒置开关（ST.REV） 油门微调按键（TH.TRIM+） Power indicator LED (R. LED) Steering D/R (ST.D / R +) 电源指示灯红色LED（R.LED） 方向比例调节按键（ST.D/R+） Steering Trim (ST.TRIM-) Lanyard Eye 方向微调按键（ST.TRIM-） 挂绳孔...
- Page 8 接收器 Receiver Antenna 天线 To ensure signal quality, the antenna should be perpendicular to the model body and placed upright. 为保证信号质量，天线应与模型机身保持垂直，且天线竖立摆放。 风扇 (MOTOR FAN) 电调 (ESC) 转向舵机 (SERVO)
- Page 9 开关 Power Switch 1. Turn on the power switch of the transmitter, the signal indicator light of transmitter flashes. 2. Press the power button of car, which is on the side of the ESC; the indicator light of car flashes. 3.
-
Page 10: Light Control
（转向舵机微调） ST.TRIM (Steering servo strimmer) If the car cannot go straightly during driving, it can be adjusted through the ST.TRIM. 车辆行驶过程中如无法直线行驶，可通过此微调进行调整。 灯控 Light control Short press the CH4 button, the light of car can be controlled to turn on or turn off. 按CH4按键时，控制灯光开启或关闭。... - Page 11 前防撞组件（包含LED) Front Bumper Assembly (With LED) Screw 螺丝 2.6x8mm 2PCS Round head screws 圆头平尾螺丝 2.3x5mm 1PCS Round head screws 圆头平尾螺丝 E1114 前摆臂组件 Front Swing Set Screw 螺丝 2.6x12.5mm 2PCS E1125 Countersunk flat head screws 沉头平尾螺丝 16230 Bearing 轴承 2PCS Ball bearing 滚珠轴承...
- Page 12 全金属主传动组件 Metal Gears Main Driving Set Screw 螺丝 Bearing 轴承 E1141 2PCS 2x10mm 1PCS Ball bearing Countersunk flat 滚珠轴承 head screws 沉头平尾螺丝 2PCS Ball bearing 滚珠轴承 E1142 全金属齿轮差速箱 Metal Gears Diff Assembly Screw 螺丝 Bearing 轴承 2PCS 2x12mm 4PCS Ball bearing Countersunk flat 滚珠轴承...
-
Page 13: Steering Assembly
油压避震 Oil Filled Shock Add shock oil 添加避震油 Shock absorbers adjuster Spin the suspension adjuster to adjust the shock absorbers’strength. 避震调节器 可旋转避震调节器以调整避震力度。 E1144 转向组件 Steering Assembly Screw 螺丝 2.3x12mm 3PCS Countersunk flat E1137 head screws 沉头平尾螺丝 2.6x6.5mm 2PCS Step flat screws 台阶平尾螺丝... - Page 14 电机组件 Motor Assembly Screw 螺丝 2.5x8mm 2PCS Countersunk flat head screws 沉头机丝螺丝 3x15mm 2PCS Machine screws 机丝螺丝 E1145 3x3mm 1PCS Hexagon socket machine screw 内六角机丝螺丝 E1146 E1138 E1139...
- Page 15 总装 Car Assemble Screw 螺丝 2.3x8mm 4PCS Round head screws 圆头平尾螺丝 2.6x6mm 2PCS E1124 Round head screws 圆头平尾螺丝 E1120 2.6x10mm 10PCS Round head screws 圆头平尾螺丝 2.3x10mm 6PCS Round head screws 圆头平尾螺丝 E1140 2.6x8mm 4PCS E1140 Round head screws 圆头平尾螺丝 2.3x11mm 1PCS E1143 Countersunk flat...
- Page 16 总装 Car Assemble E1132 E1122 Screw 螺丝 2.3x12mm 1PCS (2PCS) Countersunk flat head screws 沉头平尾螺丝 3x29mm 4PCS Round head half thread screws 圆头平尾半牙螺丝 2.6x10mm 1PCS Round head screws 圆头平尾螺丝 2.3x10mm 4PCS Round head screws 圆头平尾螺丝 2.6x8mm 5PCS Round head screws 圆头平尾螺丝...
- Page 17 总装 Car Assemble Screw 螺丝 2.3x12mm 4PCS (8PCS) Countersunk flat head screws 沉头平尾螺丝 2.6x8mm 4PCS Round head screws 圆头平尾螺丝 E1144 E1144...
-
Page 18: Spare Parts List
总装 Car Assemble Iron shaft 铁轴 1PCS (4PCS) Wheel hex pins 六角套铁轴 1PCS (4PCS) Wheel hex 六角套 螺母 1PCS (4PCS) M4 Wheel lock nut M4螺母 E1133 E1131 配件表 Spare parts list E1149 BK car body (w/ painting) 车壳总成黑 E1127 Front C hub 转向座... - Page 19 The instruction sheet for this product is just for your reference. We reserve the right to make changes or adjustments on the product without prior notification. Please refer to the official information. 本产品说明书内容仅供参考。本公司有权对产品进行更改或调整，恕不再另行通知，具体请以官方为准。 警告 Warning Choking hazard! This product contains small parts. NOT suitable for children under 3 years. Contains electrical components and should be kept dry at all times.
- Page 20 • 遥控器使用4节 1.5V“AA”号电池； • 安装或更换电池时请注意极性； • 充电电池只能在成人监护下充电； • 不可混用新旧或不同型号的电池； • 电池电量用尽后，应从模型内取出； 将耗尽电量的电池交给专门的环保部门处理！ • • 接线端不应短路； 非充电电池不可充电； • • 充电电池充电前应从模型中取出； 请不要将坏的电池、电池组分解或扔到火中、水里，以免发生意外; • • 充电器的额定输入电压必须与当地的家用电压相符； 在充电过程中，充电器和电池出现微温，属于正常现象。 • • 不可吞咽电池！ 将电池放在凉爽、干燥避光及小孩接触不到的地方！ • • 如果出现电池漏液现象且液体不慎入眼，请立刻用大量的清水清洗，并就近去往医院就诊。 安全注意事项 Safety Precautions • It is a radio control model, not a toy! •...
- Page 21 安全操作模型 Operating Your Model Safely Do NOT operate the model in the following places and situations. （(Non-observance may lead to accident!) 不可在以下地方或情形下使用本车(不遵循操作惯例可能会导致事故发生） • Operate your model in spacious and safe areas! Do not operate it: 1. On road! 2. In places where children and many people gather. 3.
- Page 22 Appendix 1 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 23 产品名称：1/18 科罗拉多大脚卡车 E-mail:support@eazyrc.com Add: Yihe Center, Yihe Road 2, Beijiao Town, Shunde District, Foshan City, Guangdong Province 邮箱：support@eazyrc.com 地址：广东省佛山市顺德区北滘镇怡和路2号怡和中心...
