PSXX-AR & PSXX-ARSC Manual
*info@tonystrains.com
*Designed by Larry Maier
*Developed by DCC Specialties
*US Patent 7,810,435
New Timing Delay Features
New Programmable Power Up Status
New Auto Stop
For DCC Use Only
The PSXX-AR series is a product of years of research into problems dealing with false overloads
that cause premature shut down of DCC Boosters and other Circuit Breakers. These false overloads
are caused by large capacitors used in sound systems, decoders, and lighted passenger cars. The
overload appears as a short circuit until the capacitors are charged. The logic on the PSXX-AR
Series determines if the load is a true short or just an overload due to a discharged capacitor. A
PSXX-AR also has the logic & power to control switch machines at the throat of a reversing loop.
Versions:
PSXX-AR [Tortoise] & PSXX-ARSC [Kato, Peco, Atlas Snap Coils]
PSXX-AR & PSXX-ARSC are functionally identical EXCEPT the turnout motor type control
Compatible with PSXX, Frog-AR and earlier PSX & PSX-AR units
Automatic Coordination of Auto Reverse and Circuit Breaker Tasks:
auto reverser and circuit breaker.
Automates Reverse Loop Turnouts:
automatically lines up switch machines when the polarity is reversed. Switch machine can
also be controlled with standard DCC Accessory Commands and push buttons.
Track Output Terminal J11
Block Detection:
block and to trigger a Block Occupied output. The current trigger level is programmable.
Auto Stop with DCC Reset:
the photocell will not cause any action. If the photocell is armed with a DCC command, the
PSXX-AR will turn off the next time the photocell is covered. A DCC command can restore the
track power when desired.
All Solid-State Operation:
Adaptive Load Reset:
capacitance in sound decoders or lighted passenger cars.
Over Voltage Protection:
voltage spikes on your layout.
Integrated Stall Motor or Snap Coil Decoder,
indicates when phase/turnout is normal or reversed by LED status.
Either a photocell or block current draw can be used to detect a train in a
A photocell can be connected a PSXX-AR input. Normally, covering
Fast, solid-state design, reliable quiet action, no clicks or sparks.
Electronically determines if the overload is a real short or due to excess
The PSXX-AR incorporates a voltage suppression diode that limits
Rev: A Software Rev: A

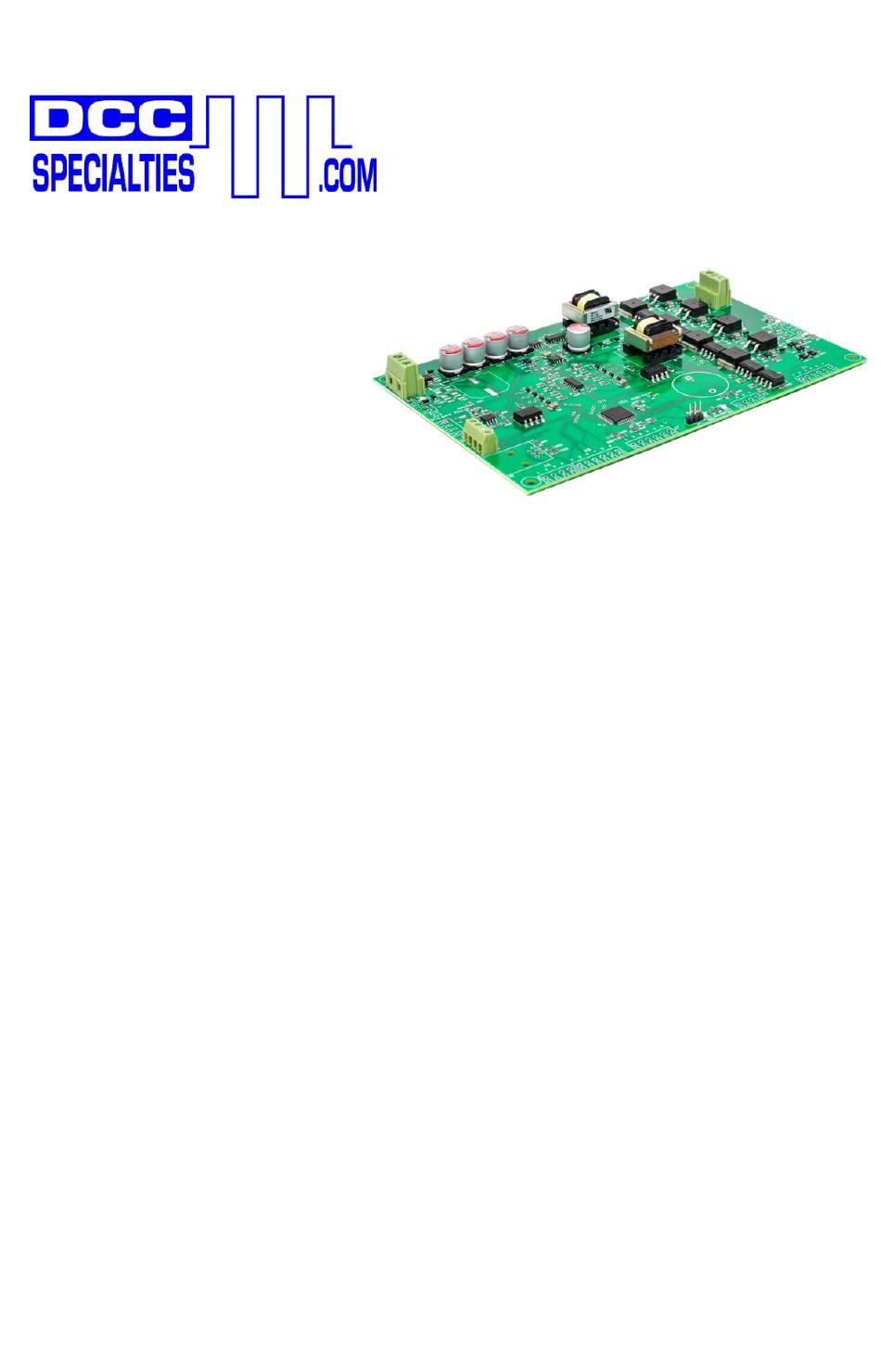

The PSXX-AR Series
DCC Circuit Breaker & Auto Reverser
Integrated Turnout Control for Loop Automation
Intelligent, Solid State
Block Detection and Network Feed Back
Manual Rev A [03.22], Software Rev A [03.22]
1
The PSXX-AR is both an

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSXX-AR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DCC Specialties PSXX-AR Series

  • Page 1 New Auto Stop For DCC Use Only The PSXX-AR series is a product of years of research into problems dealing with false overloads that cause premature shut down of DCC Boosters and other Circuit Breakers. These false overloads are caused by large capacitors used in sound systems, decoders, and lighted passenger cars. The overload appears as a short circuit until the capacitors are charged.
  • Page 2 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A • Wide Range of Current Trip Setting: The breaker trip current can be adjusted over a range of 1 to 10 amperes. Trip current values are selected by setting a CV. Certain selected values can be set by placing jumpers on the board.
  • Page 3 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A...
  • Page 4: Quick Start

    PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A A. Quick Start PSXX-AR & PSXX-ARSC are functionally identical EXCEPT the turnout motor type control 2. All connections involve two wire inputs from the DCC Booster [or Main DCC Power Bus] into a PSXX-AR and two wire Outputs to the isolated reversing section or loop.
  • Page 5 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A B. User Guidelines 1. Ensure the Programming Jumper is on pins JP1.2-JP1.3 to operate [Pin JP1.1 is nearest the center of the PSXX-AR circuit board] 2. Cut isolating gaps in the rails between PSXX/PSXX-AR zones. a.
  • Page 6 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A 6. We recommend rail drops to the track bus every 3-5 feet. Insufficient feeders can cause your track voltage to be significantly lower than your booster output voltage. 7. When wiring more than one PSXX or PSXX-AR [PSXX-2, PSXX-3, PSXX-AR] insure all input/output polarities are the same.
  • Page 7 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A C. How to Determine Power Districts There are two types of power districts: Single power district per booster or multiple power districts on a single booster. In either case, you want a PSXX or PSXX-AR protecting each power district.
  • Page 8 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A ***PSXX-AR LED Outputs do not require resistors***...
  • Page 9 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A Based on our experience, a typical HO scale 5 Amp system can support up to 10 operators using a 12-14 AWG bus and 20 AWG feeders. Many users overestimate the amount of Booster power needed.
  • Page 10 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A We recommend using stranded pair wire such as speaker or lamp cord wire for bus wiring. If you’re using two individual stranded wires, make sure to twist the wire 4 to 6 times every foot.
  • Page 11 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A...
  • Page 12 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A F. Terminal Wiring Descriptions J1 Input Power Connector ● J1-1 DCC Power Input A [from DCC Booster] ● J1-2 DCC Power Input B [from DCC Booster] J2 Output Power Connector ● J2-1 Switched DCC Power Output A [“normal”...
  • Page 13 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A J6 Trip Current Settings by Jumpers ● No Jumpers = 1.8 amperes [default] ● J6-1 to J6-2 = 2.7 amperes ● J6-3 to J6-4 = 0.9 amperes ● J6-1 to J6-2 & J6-3 to J6-4 = 3.6 amperes. ●...
  • Page 14: Terminal Functions

    PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A G. Terminal Functions – DCC power input connections from the DCC booster. – DCC track power output terminal from the PSXX-AR circuit breaker to the track. – Programming & Operation jumper. •...
  • Page 15 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A J4-3 [+] and J4-4 [-] are connected together [up to 5 mA] when the breaker has detected a short circuit and open during normal operation. This is an optically isolated open collector transistor and provides no power [See diagram p.20] J4-5 [+] and J4-6 [-]...
  • Page 16 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A Do not make any connections. Used to program factory software J10-1 [+] and J10-2 [-] output is on any time that D12 [GREEN] is on. • This output should ONLY be connected to an isolated LED. •...
  • Page 17: Default Address

    PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A H. PSXX-AR Accessory Addresses • The easiest way to address a PSXX-AR is at your workbench • PSXX-AR addresses are SET by moving the program jumper as described below and issuing an accessory command like operating an accessory by using your DCC Throttle.
  • Page 18 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A 12. Put the program jumper back to JP1-2 and JP1-3 unless you are going to program CV settings. 13. Note the default addresses are 2042, 2043, and 2044 The table below shows how the DCC Manufactures identify the Normal [Clear] and/or the Thrown [Diverging] Route to operate accessories.
  • Page 19 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A j. Install a wire between J7-1 and J4-6 k. Set CV50=1 l. Set CV66=0. m. This will set the photocell to also control the block detector output [which has the LED connected now] n.
  • Page 20 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A The third PSXX-AR accessory address [Default address 2044, 999 for Digitrax] is used to control the switch connected to either J12 [Tortoise] or J13 [snap coil]. • Sending an accessory command to this address will operate the switch points. •...
  • Page 21 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A Specific DCC Systems need to follow specific programming sequences to reliably program a PSXX-AR. The easiest way to program PSXX-AR circuit breakers is at your work bench. Programming CV values is done using the Programming On Main [POM] function. Refer to your DCC system manual for specific directions on how to perform Program On Main functions.
  • Page 22 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A J. CV Settings CV49 Current Limit/Trip Current value ● Default Trip Rate = 1.8 amps ● If CV49=0, then the Current Limit/Trip Current jumpers on J6 are enabled. Remember to use either the Jumpers or the CV settings, NOT BOTH! ●...
  • Page 23 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A CV53 Enable Block Current Auto-Calibration ● Default = 0, no calibration. ● CV53=66 enables Block Current Auto-Calibration the next time the PSXX-AR is turned on. ● CV53 is set to 66, power is removed, and JP1 is returned to the 2-3 position. ●...
  • Page 24 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A CV58 Reverse Delay Adjust ● The default = 0. ● The value in ms added to the inherent delay from the short detection to the phase reversal of output on J2 ●...
  • Page 25 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A CV66 controls how the PSXX outputs power to the track when the associated booster is turned on. ● Default=1 ● CV66=0 The PSXX J2 output will always be OFF after the booster powers up. ●...
  • Page 26: All Systems

    PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A K. Special Programming Instructions Specific DCC Systems need to follow specific programming sequences to reliably program a PSXX-AR. All systems: Program CV’s using Program on Main Method. Do not use Program track or accessory programming For all systems, whenever you enter an address or CV value, you should see D23 flash.
  • Page 27 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A L. Add On Circuits for the PSXX-AR by Don Fiehmann The PSXX-AR reverser/circuit breaker has become a very popular way to control polarity in reverse loops and wyes. The PSXX-AR also has many features that can be used when wired to a layout.
  • Page 28 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A M. System Sequential Programming Instructions for Setting Address and Programming CV’s Digitrax Using the DT400/402/500 Setting PSX Addresses: Disconnect PSX from DCC power Move PSX Jumper to Program Position Pins 1 & 2 Turn DCC power on “PWR”+ “...
  • Page 29 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A Lenz Programming PSX CVs: Using the LH100 Turn DCC power off. Move PSX JP1 Jumper to Program Position Pins 1 & 2 Turn DCC power on. Select a locomotive number with the keypad that is unused on your layout. Press the “F”...
  • Page 30 PSXX-AR & PSXX-ARSC Manual Rev: A Software Rev: A MRC Setting PSX Addresses: Using the Prodigy Advance Cab Turn DCC Power off. Move PSX JP1 Jumper to Program Position Pins 1 & 2 Turn DCC Power on. Press ACCY key. Enter the new switch number using the numerical keypad.
