Summary of Contents for ORGA L240

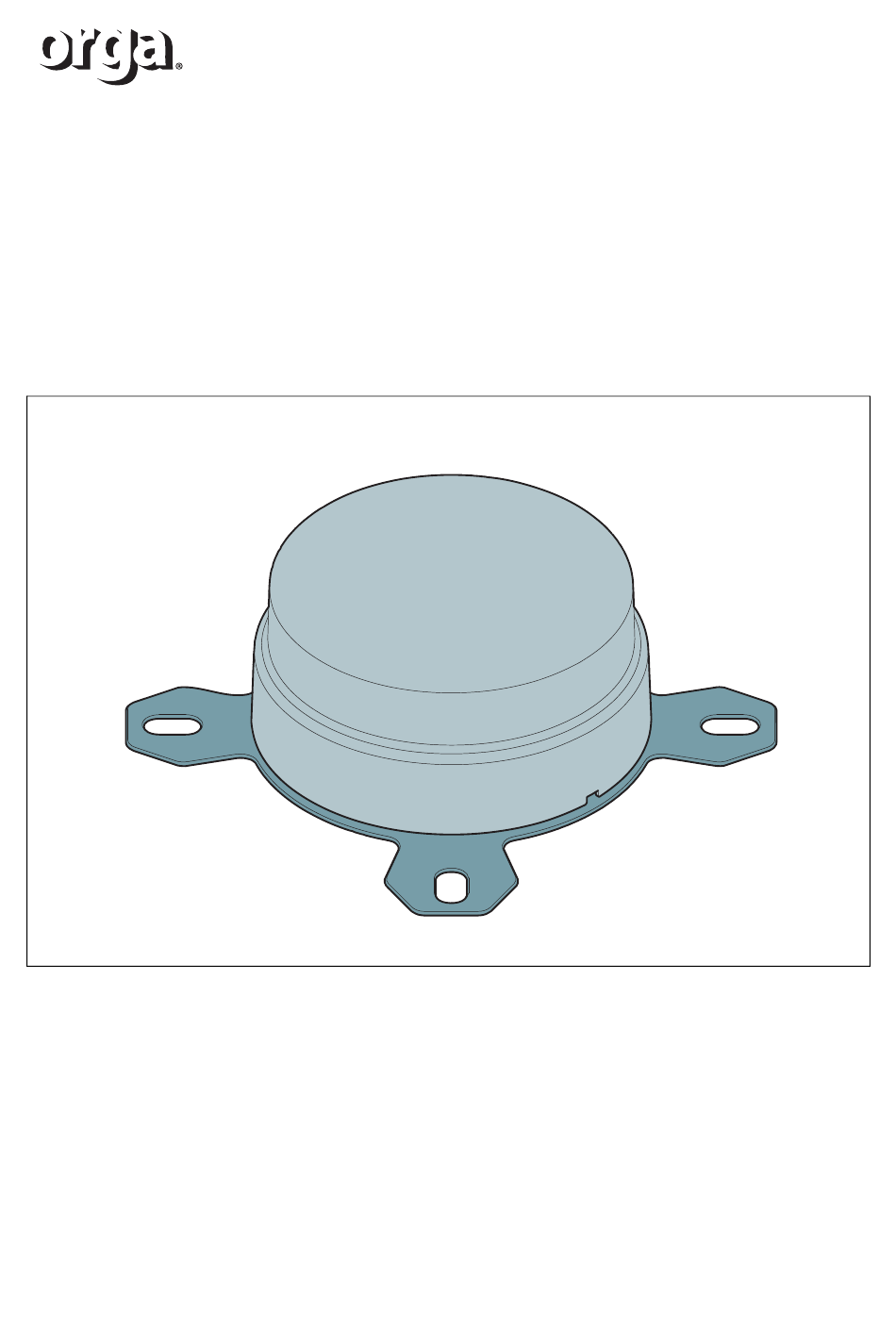

- Page 1 L240 Low intensity light Installation, operation and maintenance manual Orga Aviation BV Strickledeweg 13 3125 AT SCHIEDAM The Netherlands T +31 (0) 10 208 5555 E info@orga.nl I www.orga.nl Version 1.2...
- Page 2 Copyright (c) Orga. All rights reserved. Disclaimer While every effort has been made to provide a complete, up-to-date, accurate manual, Orga will accept no liability claims for damages resulting from any errors or omissions in this manual.
-
Page 3: Table Of Contents
Table of contents ABOUT THIS DOCUMENT Before you start ........................4 Icons used in this document ....................4 SAFETY Intended use........................... 5 Safety instructions ........................5 Safety instructions for operation ..................... 5 Warranty policy........................6 DESCRIPTION Overview and function of the lighting fixture................8 Labels ............................. -
Page 4: About This Document
• Maintenance • Troubleshooting From here on, this document refers to the L240 light as the ‘lighting fixture’. Before you start WARNING Do not continue before you understand the contents in this manual. Make sure that you know and understand the contents in this manual. -
Page 5: Safety
SAFETY SAFETY Intended use The lighting fixture provides pilots with visual information on the proximity and height of objects. Safety instructions WARNING • Make sure that the mains power supply is disconnected before you do work on the system. • Do not touch the electrical system for at least 2 minutes after the mains power supply is disconnected. -
Page 6: Warranty Policy
(c) All Products repaired or replaced hereunder shall be warranted only for the unexpired portion of the original warranty period. If Orga is of the opinion that the complaint about the defect is justified, Orga will repair or replace at its own option any faulty Product returned within the warranty period at its cost (including material and labour costs, excluding shipping costs). - Page 7 Any accident, contamination, foreign object damage, abuse, misuse, neglect, negligence or any other circumstances after delivery to Buyer; or Any damage induced by failure of an Orga supplied Product not under warranty or by any Product not supplied by Orga.
-
Page 8: Description
DESCRIPTION Overview and function of the lighting fixture The L240 is a light source for the marking of aviation hazards, typically highrise structures as wind turbines, communication towers, broadcast antennas, electricity transmission and distribution towers, chimneys, bridges and buildings, and can be used stand-alone or as a part of a obstacle light system. -
Page 9: Labels
This label is an example. The actual label may vary and is dependant of the version of your product. Strickledeweg 13 NL - 3125AT Schiedam T +31 (0)10 208 5555 0344 info@orga.nl - www.orga.nl XXXXXXXXXXXXXXXXX XX-XXVac; XX-XXHz XX W; XVA Ex e mb IIC Tx Gb II 2G... -
Page 10: Installation
Unpack the delivery Do a check on the delivery for completeness. Do a check on the delivery for damage. Report damages or missing parts immediately to Orga. Refer to the last page for the contact information. Requirements on the location and orientation Make sure that the location of the lighting fixture obeys these conditions: •... -
Page 11: Do A Pre-Installation Test
INSTALLATION Do a pre-installation test WARNING Do not look directly at the light from a short distance. The bright light can temporarily dazzle you. It is recommended to do a test before you install the lighting fixture. Refer to section 4.7.4 for the wire colour code. Connect the power wires to the mains power supply. -
Page 12: Fasteners For Installation
Note This procedure shows the steps for the connection for stand-alone operation. If the light is part of an Orga obstacle light system, connect the cable to the CIP control panel. Refer to the manual of the CIP control panel. -
Page 13: Prepare The Cable
Black Neutral (N) Blue White Earth/Ground Green/Yellow Green Data cable Orange Orange (Used for communica- Yellow Yellow tion with an Orga CIP Screen (SCN) Shrink sleeve Shrink sleeve control panel) Fail output wires Common (Used for stand-alone Purple Purple operation) -
Page 14: Maintenance
Make sure that the system is off, before you do inspections or maintenance on the lights. The light can flash, the bright light can temporarily dazzle you. Preventive maintenance on the light is not necessary. However, Orga recommends to do a visual check on the lighting fixture if a qualified engineer is present. -
Page 15: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Troubleshooting table Problem Fail signal Possible cause Solution (A part of) The light does The light is disconnected. Correct the connection. not come on. The light is defect. Replace the light. The wrong type or sub- Configure the correct light type is programmed. - Page 16 EU-Declaration of Conformity Deze conformiteitsverklaring wordt afgegeven onder volledige verantwoordelijkheid van de fabrikant Orga B.V.. This declaration of conformity is issued under the sole responsibility of the manufacturer Orga B.V.. Voorwerp van de verklaring: Object of the declaration: AERONAUTICAL OBSTRUCTION LIGHT type L240...
- Page 17 UK Declaration of Conformity Deze conformiteitsverklaring wordt afgegeven onder volledige verantwoordelijkheid van de fabrikant Orga B.V.. This declaration of conformity is issued under the sole responsibility of the manufacturer Orga B.V.. Voorwerp van de verklaring: Object of the declaration: AERONAUTICAL OBSTRUCTION LIGHT type L240...
- Page 18 For information about maintenance or repair that is not in this manual, please contact the Orga service support department. Orga Aviation BV Strickledeweg 13 3125 AT SCHIEDAM The Netherlands +31 (0) 10 208 5550 servicedesk@orga.nl www.orga.nl...
