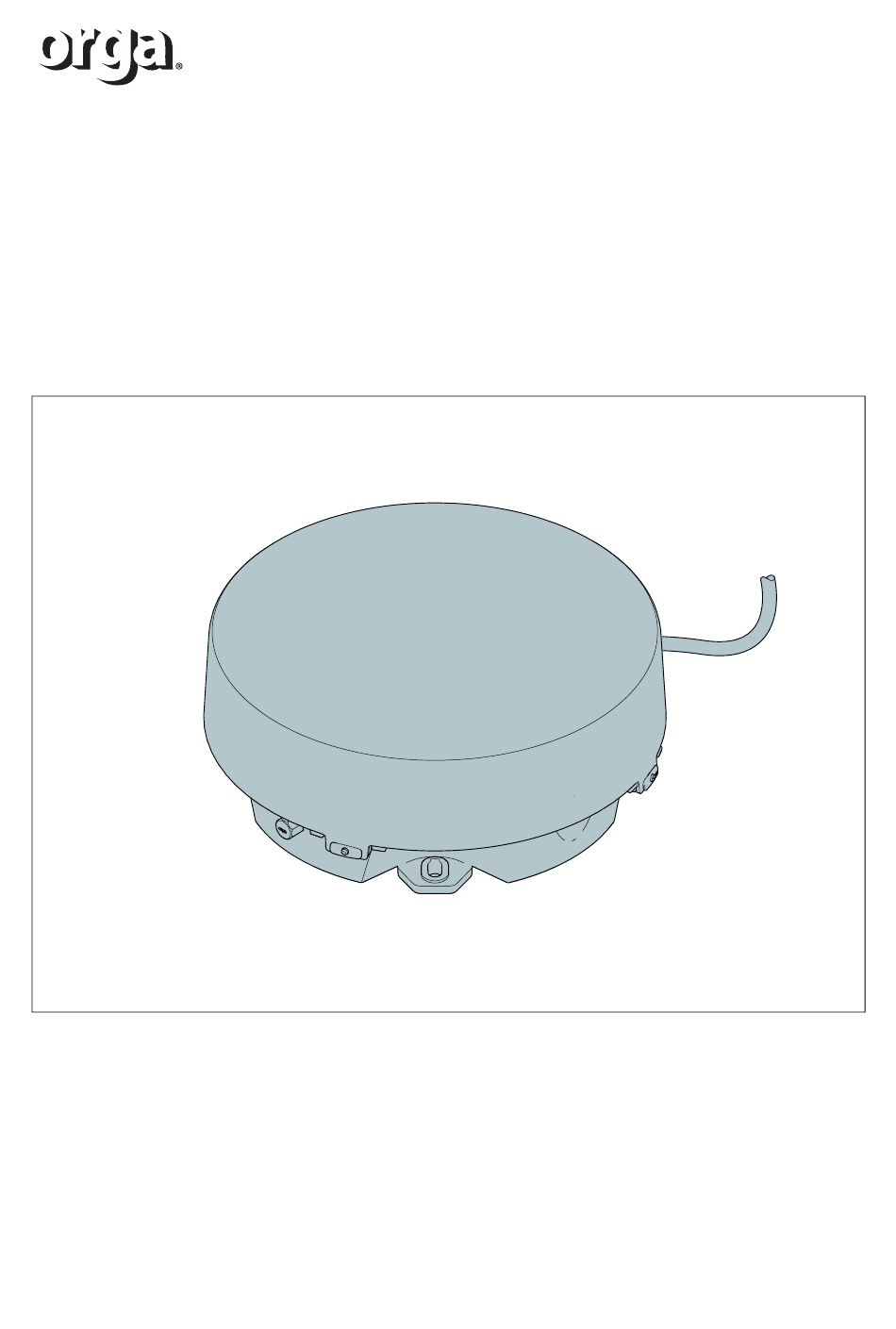

- Page 1 L550 Medium intensity light Installation, operation and maintenance manual Orga Aviation BV Strickledeweg 13 3125 AT SCHIEDAM The Netherlands T +31 (0) 10 208 5555 E info@orga.nl I www.orga.nl Version 5.1 June 2023...
- Page 2 Copyright (c) Orga. All rights reserved. Disclaimer While every effort has been made to provide a complete, up-to-date, accurate manual, Orga will accept no liability claims for damages resulting from any errors or omissions in this manual.
-
Page 3: Table Of Contents
Table of contents ABOUT THIS DOCUMENT Before you start ........................4 Icons used in this document ....................4 Terminology..........................5 SAFETY Intended use........................... 6 Safety instructions ........................6 Warranty policy........................7 DESCRIPTION Overview and function of the lighting fixture................9 Labels ........................... -
Page 4: About This Document
• Maintenance • Troubleshooting From here on, this document refers to the L550 as the ‘lighting fixture’. Before you start WARNING Do not continue before you understand the contents in this manual. Make sure that you know and understand the contents in this manual. -
Page 5: Terminology
ABOUT THIS DOCUMENT Terminology Abbreviation / term Description Civil Aviation Authority Communication & Interface Processor Electromagnetic compatibility Federal Aviation Authority Global Positioning System HHS light Helicopter hoist status light. ICAO International Civil Aviation Organisation International Electrotechnical Commission Label Sticker or type plate with information of the product. SRO light Search and Rescue Operations light. -
Page 6: Safety
SAFETY SAFETY Intended use The obstacle light variant provides pilots with visual information on the proximity and height of objects. The HHS light variant provides pilots with visual information on the turbine status during helicopter hoist operations (wind turbines). The SRO light variant provides pilots with visual information on the target turbines and/or windparks in case of emergency. -
Page 7: Warranty Policy
(c) All Products repaired or replaced hereunder shall be warranted only for the unexpired portion of the original warranty period. If Orga is of the opinion that the complaint about the defect is justified, Orga will repair or replace at its own option any faulty Product returned within the warranty period at its cost (including material and labour costs, excluding shipping costs). - Page 8 Any accident, contamination, foreign object damage, abuse, misuse, neglect, negligence or any other circumstances after delivery to Buyer; or Any damage induced by failure of an Orga supplied Product not under warranty or by any Product not supplied by Orga.
-
Page 9: Description
DESCRIPTION Overview and function of the lighting fixture The L550 obstacle light is a light source for the marking of aviation hazards, typically on highrise structures as wind turbines, communication towers, broadcast antennas, electricity transmission and distribution towers, chimneys, bridges and buildings. -
Page 10: Labels
This label is an example. The actual label may vary and is dependant of the version of your product. Strickledeweg 13 NL - 3125AT Schiedam T +31 (0)10 208 5555 0344 info@orga.nl - www.orga.nl XXXXXXXXXXXXXXXXX XX-XXVac; XX-XXHz XX W; XVA Ex e mb IIC Tx Gb II 2G... -
Page 11: Installation
Unpack the delivery Do a check on the delivery for completeness. Do a check on the delivery for damage. Report damages or missing parts immediately to Orga. Refer to the last page for the contact information. Requirements on the location and orientation Make sure that the location of the lighting fixture obeys these conditions: •... -
Page 12: Do A Pre-Installation Test
INSTALLATION Do a pre-installation test WARNING Do not look directly at the light beam from a short distance. The bright light can temporarily dazzle you. It is recommended to do a functional test before you install the lighting fixture. Refer to section 4.6.2 for the wire colour code. Connect the power wires to the mains power supply. -
Page 13: Fasteners For Installation
INSTALLATION Fasteners for installation Number Fastener Description Material Torque Threaded rod Length: 90 - 120 mm (3.5 - 4 “) Silicon bronze (If this is not Diameter: M12 (1/2 “) possible, use stainless steel.) Nuts M12 (1/2 “) Same as the threaded rod 10-12 Nm Plain washers M12 (1/2 “) Same as the threaded rod Spring lock... -
Page 14: Connect The Lighting Fixture
This procedure shows the steps for the connection for stand-alone operation. If the lighting fixture is part of an Orga obstacle light system, connect the cable to the CIP control panel. Refer to the manual of the CIP control panel. -
Page 15: Maintenance
Disconnect the mains power supply. Wait 2 minutes. Disconnect the cable. Remove the lighting fixture and the cable. Install the new lighting fixture. Refer to section 4.4. If you return the old lighting fixture: Fill in the RMA form on http://www.orga.nl/service/. -
Page 16: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Troubleshooting table Problem Fail signal Possible cause Solution (A part of) The light does The lighting fixture is dis- Correct the connection. not come on. connected. The lighting fixture is Replace the lighting fix- defect. ture. The wrong type or sub- Configure the correct light type is programmed. - Page 17 EU-Declaration of Conformity Deze conformiteitsverklaring wordt afgegeven onder volledige verantwoordelijkheid van de fabrikant Orga B.V.. This declaration of conformity is issued under the sole responsibility of the manufacturer Orga B.V.. Voorwerp van de verklaring: Object of the declaration: AERONAUTICAL OBSTRUCTION LIGHT type L550...
- Page 18 UK Declaration of Conformity Deze conformiteitsverklaring wordt afgegeven onder volledige verantwoordelijkheid van de fabrikant Orga B.V.. This declaration of conformity is issued under the sole responsibility of the manufacturer Orga B.V.. Voorwerp van de verklaring: Object of the declaration: AERONAUTICAL OBSTRUCTION LIGHT type L550...
- Page 19 For information about maintenance or repair that is not in this manual, please contact the Orga service support department. Orga Aviation BV Strickledeweg 13 3125 AT SCHIEDAM The Netherlands +31 (0) 10 208 5550 servicedesk@orga.nl www.orga.nl...
