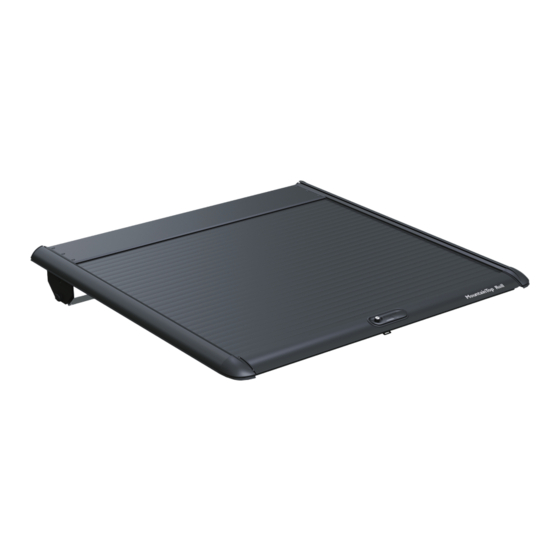

  • Page 1 Mountain Top Roll ® Owner’s manual, Ford Ranger Wildtrak PRINT FORMAT: A5 BOOKLET ISSUE 06 / 27/09-2017 / MTI 886 023 © 2017 Mountain Top Industries APS...
  • Page 2 General maintenance calendar...

  • Page 3: Table Of Contents

    Contents Mountain Top Roll - Ford Ranger Wildtrak, Owner’s manual ® Conditions of use p. 2 Warnings p. 4 Functions p. 5 Release locking system p. 6 Spring adjustment p. 8 Maintenance General cleaning p. 9 Cleaning the canister p. 10 Lubrication p.

  • Page 4: Conditions Of Use

    Temperature range: -30 to +80 degrees Celsius. The purpose of The Mountain Top Roll cover is to cover the bed from rain and dirt: Designed to withstand rain water, some water ingress may occur. In the tailgate area there will be water ingress.
  • Page 5 (Fig. 2) If the Roll cover is closed and has water, snow, ice or dirt on the cover, it might enter into the bed as the cover retracts. To avoid this, clean off the top surface of the cover prior to opening.

  • Page 6: Warnings

    Wash the Roll cover regularly using normal car shampoo and a soft, lint free cloth or brush. If washed in any carwash, or if any chemicals are used on the roll cover, please ensure a max PH value of 8 is used, to avoid damage to the coating. 04/12...

  • Page 7: Functions

    Pull back on the handle, and press down on the lock cylinder. The lock is now dis engaged, and can be moved. (Fig. 11) Use the pull strap to gently open the Roll cover to any position, as long as the lock is not engaged. (Fig. 12)

  • Page 8: Release Locking System

    The Mountain Top Roll cover features a locking system with multiple locking points along the profi les. The Roll cover will stop at the locking points only when the lock is engaged. When the locking system is engaged, the Roll cover will lock in these 4 positions: Fully open.
  • Page 9 (Fig. 17+18) When the Roll cover is fully opened, a lock activator is automatically triggered, engaging the locking system. (Fig.19) For the Roll cover to close correctly, the locking system must be engaged before the cover is closed. (Fig. 20) 07/12...

  • Page 10: Spring Adjustment

    Fig. 23 Spring adjustment Before adjusting the spring, make sure the Roll cover is cleaned and lubricated properly. The main spring is positioned in the main shaft in the canister. The spring tension has been adjusted by delivery and is ready to use.

  • Page 11: General Cleaning

    Fig. 24 Fig. 25 General cleaning The Roll cover should be cleaned on a regular basis using water with normal car shampoo (PH < 8). (Fig. 24) Drains should be cleaned often to ensure proper function of water management (Fig. 25) When cleaning, use a soft, lint free cloth or brush.

  • Page 12: Cleaning The Canister

    Fig. 26 Fig. 27 Fig. 28 Fig. 29 Cleaning the canister The canister should be cleaned at least once a year removing dirt and debris. The lid over the canister needs to be removed for this operation and should be carefully reassembled. Take care not to lose the plastic screw caps Remove the 6 screws on the lid.

  • Page 13: Lubrication

    Fig. 30 Fig. 31 Lubrication The lock should be lubricated regularly using a suitable lock lubricant (e.g. Würth lock spray), or similar. (Fig. 30) Seals and side profi les should be cleaned and lubricated regularly using silicone (e.g. Würth Silicone Oil), or similar. (Fig.

  • Page 14: Re-Tightening The Bolts

    Fig. 32 Fig. 33 Fig. 34 Fig. 35 10mm 10Nm 10mm 10Nm 0 mm Re-tightening the bolts Over time, some of the bolts may loosen due to vibrations. To re-tighten the bolts correctly, fi rst locate the 4 angle brackets underneath the side rails (fi...
  • Page 15 ausgestellt von: nach § 22 in Verbindung mit § 20 Straßenverkehrs-Zulassungs-Ordnung (StVZO) für einen Typ des folgenden Genehmigungsobjektes issued by: according to § 22 and 20 Straßenverkehrs-Zulassungs-Ordnung (StVZO) for a type of the following approval object Nummer der Genehmigung Erweiterung Nr.: Approval No.
  • Page 16 Nummer der Genehmigung: Erweiterung Nr.: Approval No. Extension No.: Bemerkungen: Remarks: Änderungsabnahme gemäß § 19 (3) StVZO: Acceptance test of the modification as per § 19 (3) StVZO: Die Genehmigung wird Approval Grund (Gründe) für die Erweiterung der Genehmigung (falls zutreffend): Reason(s) for the extension (if applicable): Ort: Place:...
  • Page 17 Nummer der Genehmigung: Jede Einrichtung, die dem genehmigten Typ entspricht, ist gemäß der angewendeten Vorschrift zu kennzeichnen. Das Genehmigungszeichen lautet wie folgt: Die Einzelerzeugnisse der reihenweisen Fertigung müssen mit den Genehmigungs- unterlagen genau übereinstimmen. Änderungen an den Einzelerzeugnissen sind nur mit ausdrücklicher Zustimmung des Kraftfahrt-Bundesamtes gestattet.
  • Page 21 28.08.2017 MOUNTAIN TOP ROLL - Int. Models Mountain Top Vehicle Manufacture/Trade MTI part no. name Type approval no. Type Variant Year Weight (kg) FIAT Fullback e1*2007/46*1398*00 KT0T MTR FI 90 16-TD Fullback e1*2007/46*1398*00 KT0T MTR FI 91 16-TD FORD Ranger...
  • Page 22 TOYOTA Hilux e11*2007/46*2587*00 AN1P MTR TO 90 15-TD Hilux e11*2007/46*2587*00 AN1P MTR TO 91 15-TD Hilux e11*2007/46*2587*00 AN1P MTR TO 92 15-TD Amarok e1*2007/46*0356* MTR VW 12-TD Amarok e1*2007/46*0356* MTR VW 80 09-TD Amarok e1*2007/46*0356* MTR VW 80 H 09-TD Amarok e1*2007/46*0356* MTR VW 82...
  • Page 24 Customer Service +45 4810 2950 (08:00 - 16:00 CET) +45 4810 2960 Support info@mountaintop.dk Website www.mountaintop.dk Address Pedersholmparken 10, 3600 Frederikssund, Denmark...
