OWNER MANUAL

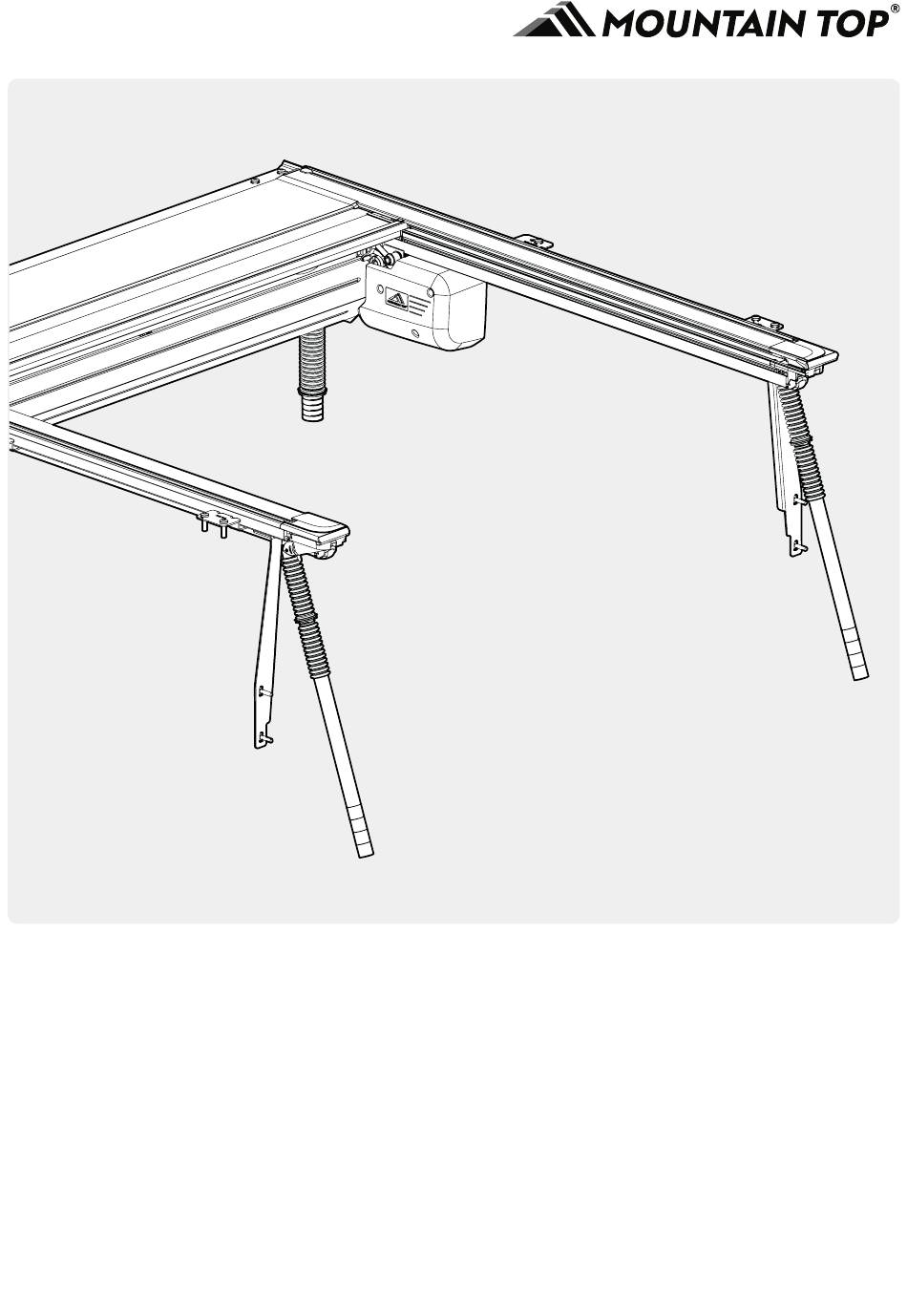

MOUNTAIN TOP® EVOe ROLL COVER
© 2023 Mountain Top / Print format: A5 Booklet
Issue 02 / 03/07-2023 / 880 909

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVOe and is the answer not in the manual?

Questions and answers

Related Manuals for Mountain Top EVOe

Summary of Contents for Mountain Top EVOe

  • Page 1 OWNER MANUAL MOUNTAIN TOP® EVOe ROLL COVER © 2023 Mountain Top / Print format: A5 Booklet Issue 02 / 03/07-2023 / 880 909...
  • Page 2 02/25 880 909 / Issue 02...
  • Page 3 Do not operate with motor cover removed! Temperatures can be very high under the cover when closed. We do not recommend washing the EVOe roll cover in a brushless carwash, as the coating may be damaged due to use of chemicals.
  • Page 4 04/25 880 909 / Issue 02...

  • Page 5: Conditions Of Use

    Due to profiles which relatively quick heats up and cools down according to weather conditions can cause condensation on the inside. The EVOe roll cover is not designed for loading although it can support normal snow loads. Goods in the bed must be secured during transportation to prevent damage.
  • Page 6 To open or close the EVOe roll cover, press the button on the remote for 1 second. 1 sec. 3.2 - Stop To stop the EVOe roll cover, press the button on the remote for 1 second during operation. STOP Press again for 1 second to resume operation.The EVOe roll cover will move in the opposite direction.
  • Page 7 3.5 - Auto Calibration To calibrate / reset the EVOe roll cover, and press and hold the button on the remote for 12 seconds. During calibration, the roll cover will open com- pletely, then close. The lights will slowly fade on and off.
  • Page 8 4.2 - Motor Overload 2 min. If the motor is overloaded, it will stop, and the lights will flash slowly. After a 2 minute pause, the EVOe roll cover will resume normal operation. STOP Motor overload can be caused by incorrect instal- lation, or dirt and debris.

  • Page 9: Maintenance

    MAINTENANCE Loosen screw and place to the side. Use the multi tool to remove the plastic covers on the side profiles. 880 909 / Issue 02 09/25...
  • Page 10 Compressed air Remove dirt and debris using compressed air. Mount plastic covers. Compressed air Clean the side profiles. 10/25 880 909 / Issue 02...
  • Page 11 Open the canister. 880 909 / Issue 02 11/25...
  • Page 12 Vacuum cleaner Clean the canister. Close the canister. 12/25 880 909 / Issue 02...
  • Page 13 Water & sponge Clean the drainage channels on the side profiles. Shampoo Water & sponge The EVO roll cover should be cleaned regularly. 880 909 / Issue 02 13/25...
  • Page 14 WET LUBE WET LUBE ONLY FOR DOUBLE CAB Regularly, and following cleaning, apply a PTFE-free all-conditions wet lube product to the inside of the canister ends. 14/25 880 909 / Issue 02...
  • Page 15 CHECK MEASUREMENTS MAINTENANCE C = D +/- 3mm Ensure the cross measurements are identical. A = B +/- 3mm 880 909 / Issue 02 15/25...

  • Page 16: Belt Adjustment

    BELT ADJUSTMENT STEP 1 Reset ~12 sec. STEP 2 POWER CUT OFF STEP 3 16/25 880 909 / Issue 02...
  • Page 17 STEP 4 STEP 5 10mm STEP 6 880 909 / Issue 02 17/25...
  • Page 18 10mm 8.5Nm 10mm STEP 7 2.4Nm POWER ON STEP 8 Reset ~12 sec. STEP 9 18/25 880 909 / Issue 02...
  • Page 19 REPEAT STEP 1 - 10 STEP 10 If operation of the roll cover is not improved after tightening the belt drive, or ab- normal sounds persists, refer to section Check glide rails maintenance on page 21. 880 909 / Issue 02 19/25...
  • Page 20 CHECK GLIDE RAILS MAINTENANCE If abnormal sounds occur during operation of the roll cover, inspect the glide rails for debris or damage. If the glide rails are damaged or worn, then replacement glide rails are needed. 20/25 880 909 / Issue 02...

  • Page 21: Replace Parts

    REPLACE PARTS BATTERY CR2032 3V 880 909 / Issue 02 21/25...
  • Page 22 FUSE POWER CUT OFF 22/25 880 909 / Issue 02...
  • Page 23 SERVICE p . 10 p. 1 2 p . 13 p . 20 p . 14 p . 15 p . 10 p. 1 2 p . 13 p . 20 p . 14 Recommended part change Years Side profiles 100.000 Rear profiles 200.000...
  • Page 24 ACCESSORIES Mountain Top Cargo Carrier combined load capacity of 45 Kg. See more accessories and spareparts www.mountaintop.dk. 24/25 880 909 / Issue 02...
  • Page 25 Maintenance EVOe manager Date Done by Type of Maintenance 880 909 / Issue 02 25/25...
  • Page 26 Customer Service +45 4810 2950 (08:00 - 16:00 CET) Support info@mountaintop.dk Website www.mountaintop.dk Address Pedersholmparken 10, 3600 Frederikssund, Denmark Scan for more information...
