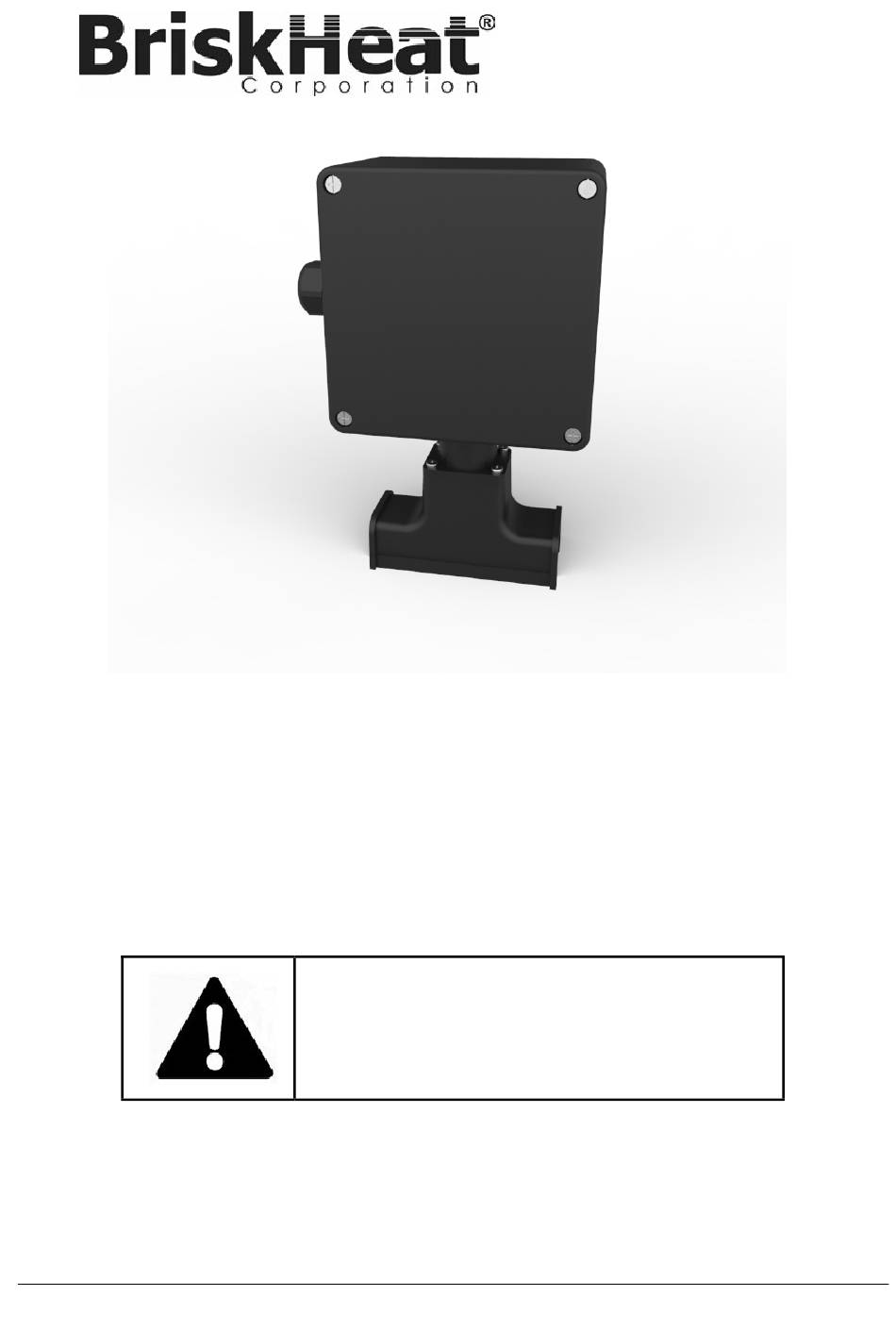

BriskHeat PTBS-GET Instruction Manual

Square multiple-entry junction box power connection kit
Hide thumbs

Advertisement

Table of Contents

English
PTBS-GET
Square Multiple-Entry Junction Box
Power Connection Kit
Instruction Manual
Read and understand this manual before installing,
operating, or servicing this junction box. Failure to
understand these instructions could result in an accident
causing serious injury or death. Only qualified personnel
should install, operate, or service this junction box.
