English

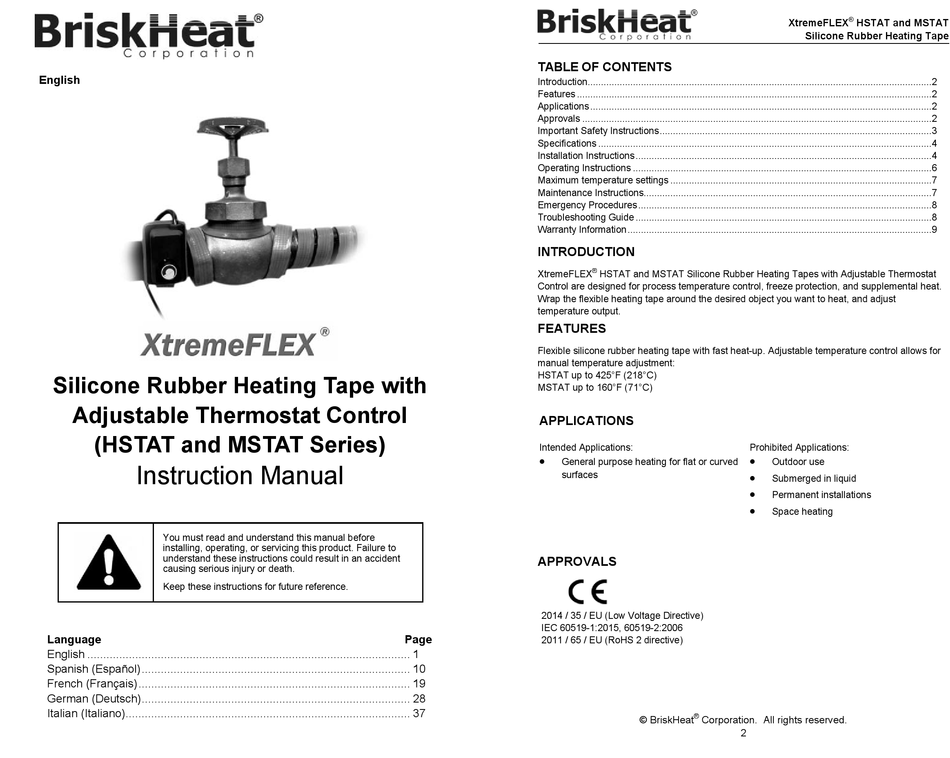

Silicone Rubber Heating Tape with
Adjustable Thermostat Control
(HSTAT and MSTAT Series)
Instruction Manual
You must read and understand this manual before
installing, operating, or servicing this product. Failure to
understand these instructions could result in an accident
causing serious injury or death.
Keep these instructions for future reference.
Language
English ..................................................................................................... 1
Spanish (Español) .................................................................................... 10
French (Français) ..................................................................................... 19
German (Deutsch) .................................................................................... 28
Italian (Italiano) ......................................................................................... 37
TABLE OF CONTENTS
Introduction .................................................................................................................................2
Features .....................................................................................................................................2
Applications ................................................................................................................................2
Approvals ...................................................................................................................................2
Important Safety Instructions ......................................................................................................3
Specifications .............................................................................................................................4
Installation Instructions ...............................................................................................................4
Operating Instructions ................................................................................................................6
Maximum temperature settings ..................................................................................................7
Maintenance Instructions............................................................................................................7
Emergency Procedures ..............................................................................................................8
Troubleshooting Guide ...............................................................................................................8
Warranty Information ..................................................................................................................9
INTRODUCTION
XtremeFLEX
Control are designed for process temperature control, freeze protection, and supplemental heat.
Wrap the flexible heating tape around the desired object you want to heat, and adjust
temperature output.
FEATURES
Flexible silicone rubber heating tape with fast heat-up. Adjustable temperature control allows for
manual temperature adjustment:
HSTAT up to 425°F (218°C)
MSTAT up to 160°F (71°C)
APPLICATIONS
Intended Applications:

General purpose heating for flat or curved
surfaces
APPROVALS
2014 / 35 / EU (Low Voltage Directive)
IEC 60519-1:2015, 60519-2:2006
Page
2011 / 65 / EU (RoHS 2 directive)
®
HSTAT and MSTAT Silicone Rubber Heating Tapes with Adjustable Thermostat
Prohibited Applications:

Outdoor use

Submerged in liquid

Permanent installations

Space heating
®
© BriskHeat
Corporation. All rights reserved.
2
®
XtremeFLEX
HSTAT and MSTAT
Silicone Rubber Heating Tape
