Summary of Contents for Floor iQ D4.0

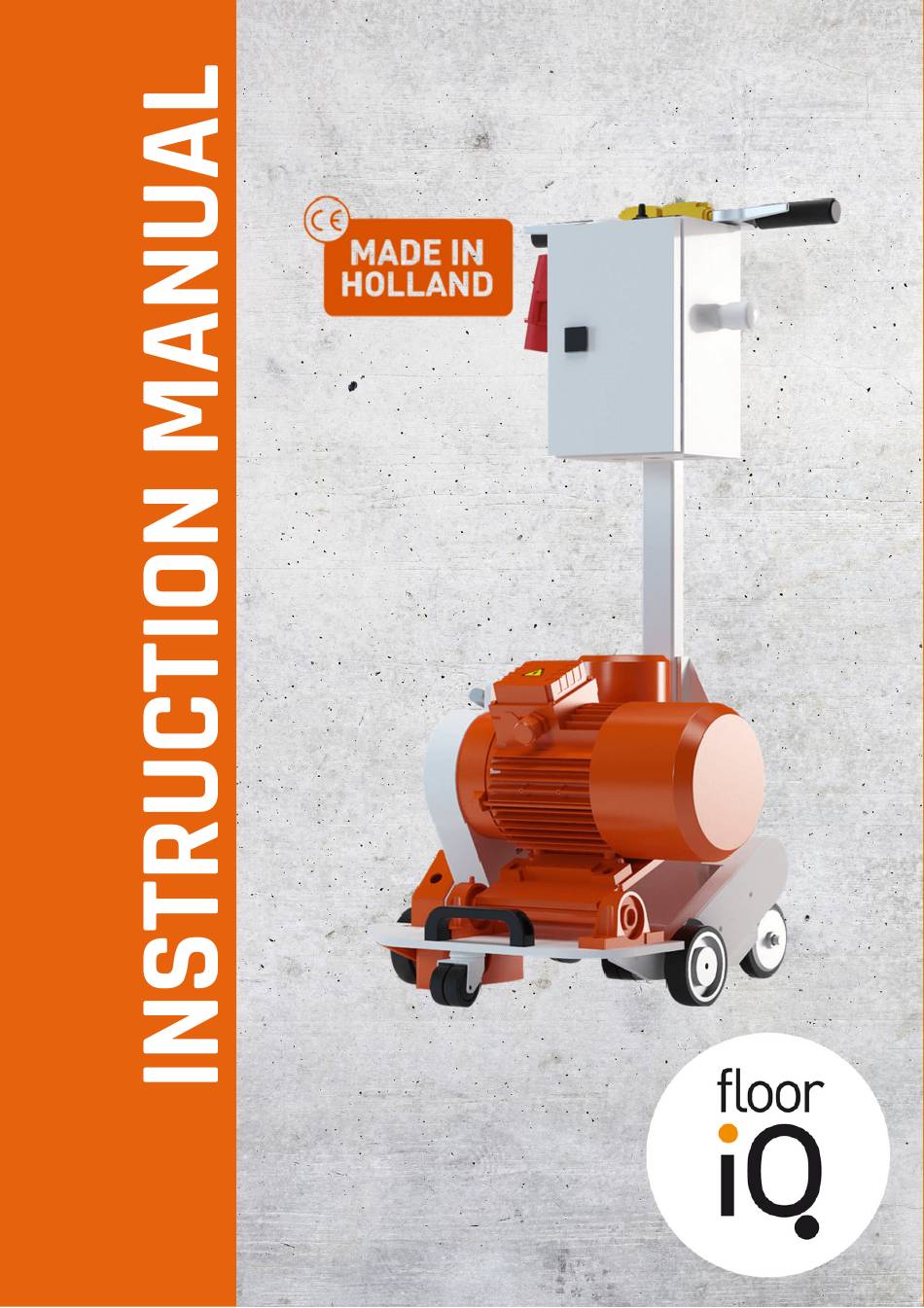

- Page 1 D4.0...
-
Page 2: Table Of Contents
1. INTRODUCTION Introduction 2. DEVICE DESCRIPTION Applications Accessories Safety function 3.SAFETY GUIDELINES Environmental conditions Protective equipment Electrical hazards Milling blades Warning symbols 4. MANDATORY CHECKS BEFORE USE 9/10 5. OPERATION Removing the milling blade Mounting the milling blade Setting the depth Activating/deactivating The propulsion system 6. -
Page 3: Introduction
1. INTRODUCTION Thank you for choosing a floor milling machine from Floor iQ. This manual provides a description of the type VLFR-D4.0. This manual contains important information for the correct and safe operation of your machine. Do you perform maintenance on your machine or... -
Page 4: Device Description
The upper half of the milling blade is shielded by a metal guard fitted with a vacuum-cleaner connection. The floor milling machine type VLFR-D4.0 allows you to carry out both dry and wet operations. When used in combination with the right vacuum cleaner, the floor milling machine allows you to work in a dust-free environment. -
Page 5: Safety Guidelines
3 SAFETY GUIDELINES Read the following safety instructions carefully before using the floor milling machine. KEEP THESE SAFETY INSTRUCTIONS with the machine so that you can refer to them at any time. Environmental conditions Do not use the floor milling machine if there are flammable liquids or gases at or near the work site. -
Page 6: Protective Equipment
Loading and unloading You can detach the VLFR-D4.0 in three parts, so the floor milling machine can be carried by several people. The two transport wheels make it easier to move the machine during transport. Personal Protective Equipment De volgende persoonlijke beschermingsmiddelen zijn verplicht om te dragen;... -
Page 7: Electrical Hazards
Do not use milling blades with an incorrect shaft hole or with a smaller or larger diameter than prescribed. Make sure the floor milling machine type VLFR-D4.0 is clean (keep handles dry and free of oil or grease). Always unplug the machine first when changing a diamond milling blade and before removing the dust cover’s plastic nuts. -
Page 8: Warning Symbols
Warning symbols Stickers with the following commands and warning pictograms are attached to the VLFR-D4.0. Hearing protection mandatory! Instruction/manual Electrical voltage warning Crush hazard warning page 8... -
Page 9: Mandatory Checks Before Use
4 REQUIRED CHECKS BEFORE USING THE FLOOR MACHINE The following checks are mandatory before using the floor milling machine type VLFR-D4.0: The milling machine must not be used if one or more of the above checks show that either the power supply or the machine is not working completely correctly. - Page 10 Before turning on the milling machine: Check that the control switch is OFF so that the milling machine does not start up when the plug is connected to the mains. Check that the safety functions work properly. Check that the control switch works properly. If not, replace this switch before you start.
-
Page 11: Operation
Ensure that the machine is not unnecessarily stressed during milling. Never block the milling blade by applying pressure to its side. Use Floor iQ’s diamond milling blades, which are specially developed for our floor milling machine and give the very best results. -
Page 12: Mounting The Milling Blade
Mounting the milling blade: Assembling the milling blade is done in reverse order: Slide the milling blade over the drive shaft. Screw the 6-sided nut onto the shaft and tighten it firmly with the correct spanners. Carefully tilt the motor back and reattach the plastic nut to the electric depth adjuster. -
Page 13: Activating/Deactivating
The speed is determined by the hardness/resistance of the floor. This may be a maximum of 9 amps for type VLFR-D4.0. Please note that it is very dangerous to block the handles as the driving system does not stop immediately when you release the handles. -
Page 14: Maintenance
Contact your Floor iQ supplier for repairs to your VLFR-D4.0. Minor repair? Ask your supplier for the service page. If repairs to floor milling machine VLFR-D4.0 have not been carried out by a competently trained person, this will void your warranty. -
Page 15: Technical Data
Rounds per min. ca. 6800 tpm Noise level 86 dB (A) ca 102 kg Weight Floor iQ reserves the right to change the above technical data without prior notice in connection with the ongoing, innovative development of the machine. page 15...
