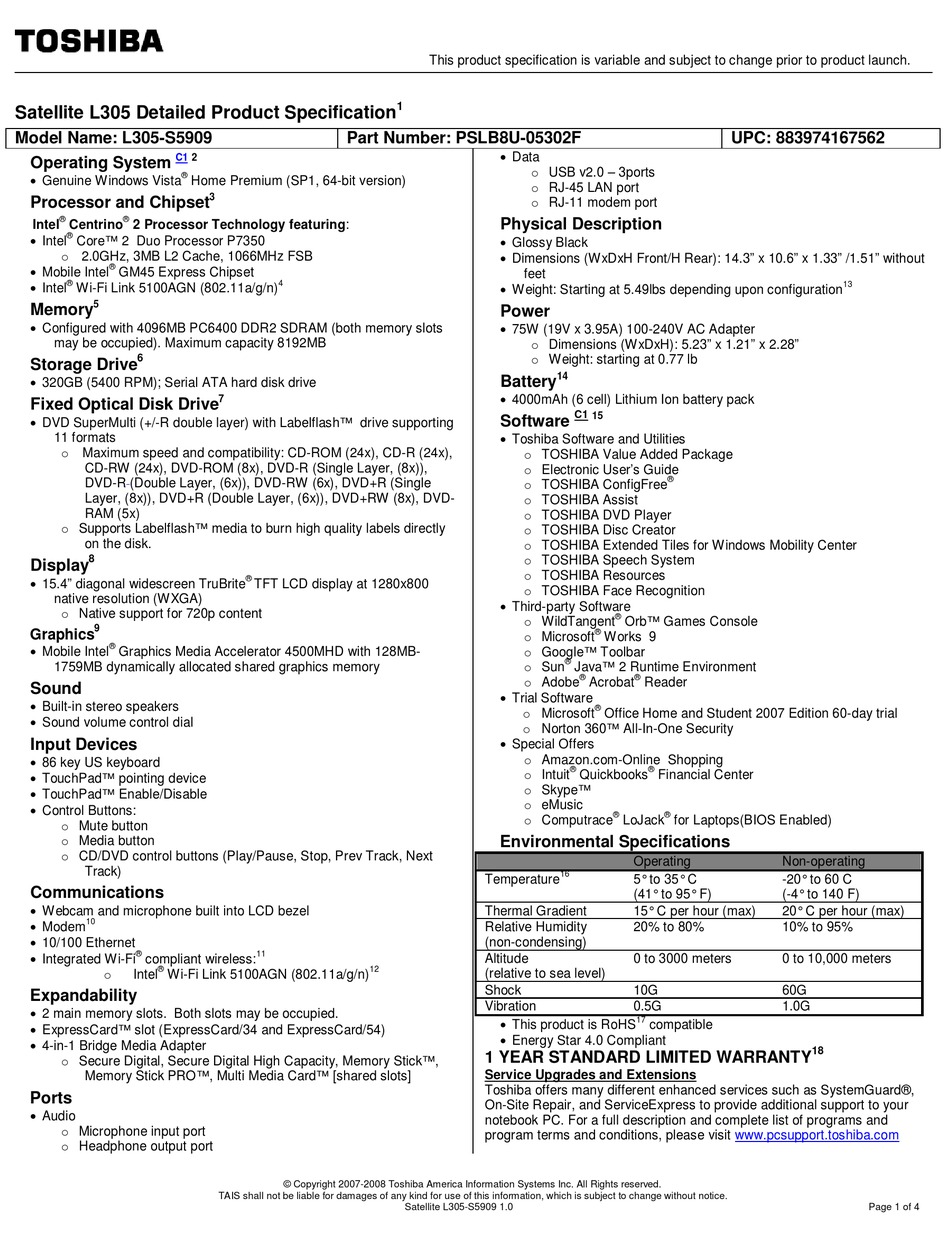

Toshiba Satellite L305-S5909 Specifications

Satellite L305 Detailed Product Specification
Model Name: L305-S5909
C1 2
Operating System
®
 Genuine Windows Vista Home Premium (SP1, 64-bit version)
Processor and Chipset
® ®
Intel Centrino 2 Processor Technology featuring:
®
 Intel Core™ 2 Duo Processor P7350
o 2.0GHz, 3MB L2 Cache, 1066MHz FSB
®
 Mobile Intel GM45 Express Chipset
®
 Intel Wi-Fi Link 5100AGN (802.11a/g/n)
5
Memory
 Configured with 4096MB PC6400 DDR2 SDRAM (both memory slots
may be occupied). Maximum capacity 8192MB
6
Storage Drive
 320GB (5400 RPM); Serial ATA hard disk drive
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) with Labelflash™ drive supporting
11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (24x), DVD-ROM (8x), DVD-R (Single Layer, (8x)),
DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R (Single
Layer, (8x)), DVD+R (Double Layer, (6x)), DVD+RW (8x), DVD-
RAM (5x)
o Supports Labelflash™ media to burn high quality labels directly
on the disk.
8
Display
 15.4" diagonal widescreen TruBrite
native resolution (WXGA)
o Native support for 720p content
9
Graphics
®
 Mobile Intel Graphics Media Accelerator 4500MHD with 128MB-
1759MB dynamically allocated shared graphics memory
Sound
 Built-in stereo speakers
 Sound volume control dial
Input Devices
 86 key US keyboard
 TouchPad™ pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Mute button
o Media button
o CD/DVD control buttons (Play/Pause, Stop, Prev Track, Next
Track)
Communications
 Webcam and microphone built into LCD bezel
10
 Modem
 10/100 Ethernet
®
 Integrated Wi-Fi compliant wireless:
®
Intel Wi-Fi Link 5100AGN (802.11a/g/n)
o
Expandability
 2 main memory slots. Both slots may be occupied.
 ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)
 4-in-1 Bridge Media Adapter
o Secure Digital, Secure Digital High Capacity, Memory Stick™,
Memory Stick PRO™, Multi Media Card™ [shared slots]
Ports
 Audio
o Microphone input port
o Headphone output port
Part Number: PSLB8U-05302F
3
4
7
®
TFT LCD display at 1280x800
11
12
© Copyright 2007-2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
 Data
o USB v2.0 – 3ports
o RJ-45 LAN port
o RJ-11 modem port
Physical Description
 Glossy Black
 Dimensions (WxDxH Front/H Rear): 14.3" x 10.6" x 1.33" /1.51" without
feet
 Weight: Starting at 5.49lbs depending upon configuration
Power
 75W (19V x 3.95A) 100-240V AC Adapter
o Dimensions (WxDxH): 5.23" x 1.21" x 2.28"
o Weight: starting at 0.77 lb
14
Battery
 4000mAh (6 cell) Lithium Ion battery pack
C1
Software
 Toshiba Software and Utilities
o TOSHIBA Value Added Package
o Electronic User's Guide
o TOSHIBA ConfigFree
o TOSHIBA Assist
o TOSHIBA DVD Player
o TOSHIBA Disc Creator
o TOSHIBA Extended Tiles for Windows Mobility Center
o TOSHIBA Speech System
o TOSHIBA Resources
o TOSHIBA Face Recognition
 Third-party Software
o WildTangent
o Microsoft
o Google™ Toolbar
®
o Sun Java™ 2 Runtime Environment
o Adobe
 Trial Software
o Microsoft
o Norton 360™ All-In-One Security
 Special Offers
o Amazon.com-Online Shopping
®
o Intuit
o Skype™
o eMusic
o Computrace
Environmental Specifications
16
Temperature
Thermal Gradient
Relative Humidity
(non-condensing)
Altitude
(relative to sea level)
Shock
Vibration
 This product is RoHS
 Energy Star 4.0 Compliant
1 YEAR STANDARD LIMITED WARRANTY
Service Upgrades and Extensions
Toshiba offers many different enhanced services such as SystemGuard®,
On-Site Repair, and ServiceExpress to provide additional support to your
notebook PC. For a full description and complete list of programs and
program terms and conditions, please visit
Satellite L305-S5909 1.0
UPC: 883974167562
15
®
®
Orb™ Games Console
®
Works 9
® ®
Acrobat Reader
®
Office Home and Student 2007 Edition 60-day trial
®
Quickbooks Financial Center
® ®
LoJack for Laptops(BIOS Enabled)
Operating
5° to 35° C
(41° to 95° F)
15° C per hour (max)
20% to 80%
0 to 3000 meters
10G
0.5G
17
compatible
www.pcsupport.toshiba.com
13
Non-operating
-20° to 60 C
(-4° to 140 F)
20° C per hour (max)
10% to 95%
0 to 10,000 meters
60G
1.0G
18
Page 1 of 4
