OWNER'S MANUAL

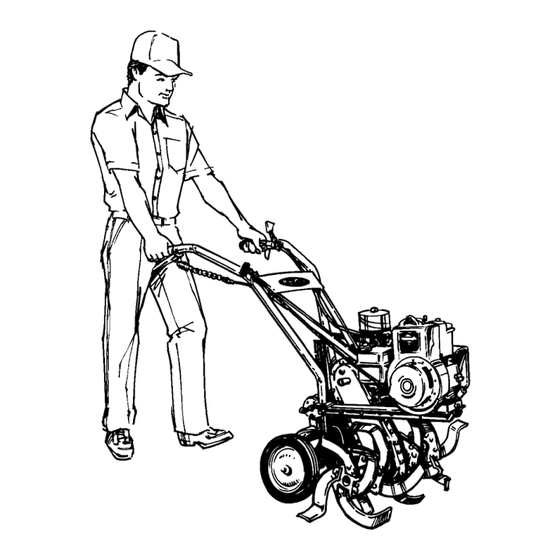

Suburban Merry Tiller
Models: ST5.5H ST750IC ST6.5V
CAUTION:
Before using this product, read this
manual and follow all Safety Rules and
Operating Instructions.
MACKISSIC, INC. P.O. BOX 111, PARKER FORD, PA 19457-0111
Phone: (610) 495-7181
e-mail: info@mackissic.com
FAX (610) 495-5951
www.mackissic.com
PART # 709-3400
05/18/2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Merry Tiller ST5 5H Series
Summary of Contents for Merry Tiller ST5 5H Series
- Page 1 OWNER’S MANUAL Suburban Merry Tiller Models: ST5.5H ST750IC ST6.5V CAUTION: Before using this product, read this manual and follow all Safety Rules and Operating Instructions. MACKISSIC, INC. P.O. BOX 111, PARKER FORD, PA 19457-0111 Phone: (610) 495-7181 e-mail: info@mackissic.com FAX (610) 495-5951 www.mackissic.com...
-
Page 2: Table Of Contents
Transmission Assembly Drawing ..Tiller Drawing ........Parts List ..........Warranty ......... MERRY TILLER ACCESSORIES AVAILABLE WHEREVER MERRY TILLER PRODUCTS ARE SOLD MT-951 Finger Tine Assemblies - Right and Left Inside MT-952 Finger Tine Assemblies - Right and Left Outside MT-956... -
Page 3: Safety
SECTION I - SAFETY This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate your tiller. Failure to comply with these instructions may result in personal injury. - Page 4 OPERATORS INSTRUCTIONS STARTING: 1. Remove or rotate wheels to up position. 2. Adjust drag bar for desired depth. 3. Stand between handlebars. 4. Allow clutch lever to drop into disengaged position. 5. Move throttle lever to run position. 6. Reach forward to set choke lever to choke position. 7.
-
Page 5: General Preparation
GENERAL PREPARATION • • Read the owner’s manual carefully and in its Disengage clutch before starting the engine entirety before attempting to assemble this (motor). • machine. Be thoroughly familiar with the Never attempt to make any adjustments controls and the proper use of the equipment while the engine (motor) is running (except before operation. -
Page 6: Repair And Maintenance Safety
• REPAIR AND MAINTENANCE SAFETY • is equipped with a fuel shut off valve, be sure to Use extreme care in handling gasoline and other turn it to the off position. fuels. They are extremely flammable and the • vapors are explosive. Check the belt and engine mounting screws at •... -
Page 7: Assembly Instructions
SECTION II - ASSEMBLY INSTRUCTIONS PACKAGE CONTENTS POLYBAG BOLT BAG • • • • OWNER’S MANUAL TILLER 1 EA CLUTCH SPRING 2 EA 10-32 X 1 1/4 RHMS • • • • HANDLE BARS (2) ENGINE MANUAL 1 EA PULL CORD HOLDER 5 EA 1/4 X 20 NYLOCK NUT •... - Page 8 STEP III - Attaching the Throttle Control Cable, Clutch Cable and Starter Rope 1. Insert throttle control (item #52, pg. 16/17) through cable guide (item #50, pg. 16/17). Attach throttle control to handlebar with 2 ea. 10-32 x 1 1/4 machine screw (item #33, pg. 19) and 2 ea. 10-32 Kep nut (item #32, pg. 19) provided in the bolt bag.
-
Page 9: Lubrication & Engine Start Up
SECTION III - LUBRICATION & ENGINE START UP FOR INFORMATION ABOUT: ❑ ❑ FUEL ❑ STARTING ❑ STOPPING ❑ RECOMMENDED MAINTENANCE ❑ SERVICE ❑ STORAGE ❑ ENGINE WARRANTY INFORMATION REFER TO THE ENGINE OWNER’S MANUAL. THE ENGINE ON YOUR SUBURBAN TILLER HAS BEEN SHIPPED DRY. BE SURE TO SERVICE THE ENGINE ACCORDING TO THE ENGINE OWNER’S MANUAL PRIOR TO STARTING. -
Page 10: Operation
SECTION IV - OPERATION TILLING - This tiller is equipped with a set of rear wheels. These wheels are designed only for transporting the tiller to and from the tilling area. They should never be used during the tilling process. When at the tilling site, lean the tiller forward until resting on the frame rails. -
Page 11: Service - Maintenance - Repair
SECTION V - SERVICE - MAINTENANCE - REPAIR The transmission has been factory serviced with “00” grease. No additional lubrication is necessary or recommended. Belt tension should be checked, and adjusted if necessary, after initial 20 to 30 minutes of operation. Follow directions below. Belt and Clutch Adjustment CAUTION: DO NOT ADJUST BELT OR CLUTCH WITH THE ENGINE RUNNING! •... -
Page 12: Service Notes
When it is necessary to make internal repairs to the transmission, it is advisable to take your tiller to an authorized MERRY TILLER dealer, especially if there are signs of excessive wear. Following are some suggestions that will help to determine the amount of wear. - Page 13 The inner seal faces into the transmission and is designed to keep lubricant from escaping from the transmission. The outer seal faces outward and is designed to keep dirt out of the transmission. The Merry Tiller transmission is lubricated with heavy “00” grease. If the seals fail, it may not be noticed due to the heavy consistency of the grease.
-
Page 14: Storage
SECTION VI - STORAGE • Clean the tiller thoroughly. • Wipe down the tiller with an oiled rag to prevent rust (use a light oil or silicone). • Store the unit in a clean, dry area. Do not store next to corrosive material, such as fertilizer. NOTE: If storing in an unventilated or metal storage shed, rustproof the equipment by coating with a light oil or silicone. - Page 15 709-1933 TRANSMISSION ASSEMBLY ITEM NO. PART NO. DESCRIPTION QTY. 709-1934 L.H. Case Half Assembly (includes 1A-1D) 706-0342 Drive Shaft Seal 706-0343 Tine Shaft Bearing 706-0344 Oil Seal 706-0345 Bearing 709-1935 R.H. Case Half Assembly (includes 2A-2D) 020-0014 Soft Plug 706-0343 Tine Shaft Bearing 706-0344 Oil Seal...
- Page 17 SUBURBAN PARTS LIST ITEM NO. PART NO. DESCRIPTION QTY. 709-1933 Transmission Assembly 030-0623 ST750IC - B&S Engine 706-3404 ST5.5H - Honda Engine ST6.5V – Vanguard Engine 030-0658 Guide ¾”L 500-0058 1/4” Flat Washer 090-0232 090-0470 1/4-20 Nylock Locknut 030-0109 Pulley - Transmission 1/4-20 x 1”...
-
Page 19: Warranty
LIMITED WARRANTY Any product manufactured by MacKissic, Inc. and found, in the judgment of MacKissic, Inc., to be defective in material or workmanship, will be repaired or replaced by an Authorized MacKissic Service Dealer without charge for parts and labor to the original owner of the MacKissic product. The MacKissic product including any defective part must be returned to an Authorized MacKissic Service Dealer within the warranty period.
