GEK-34055

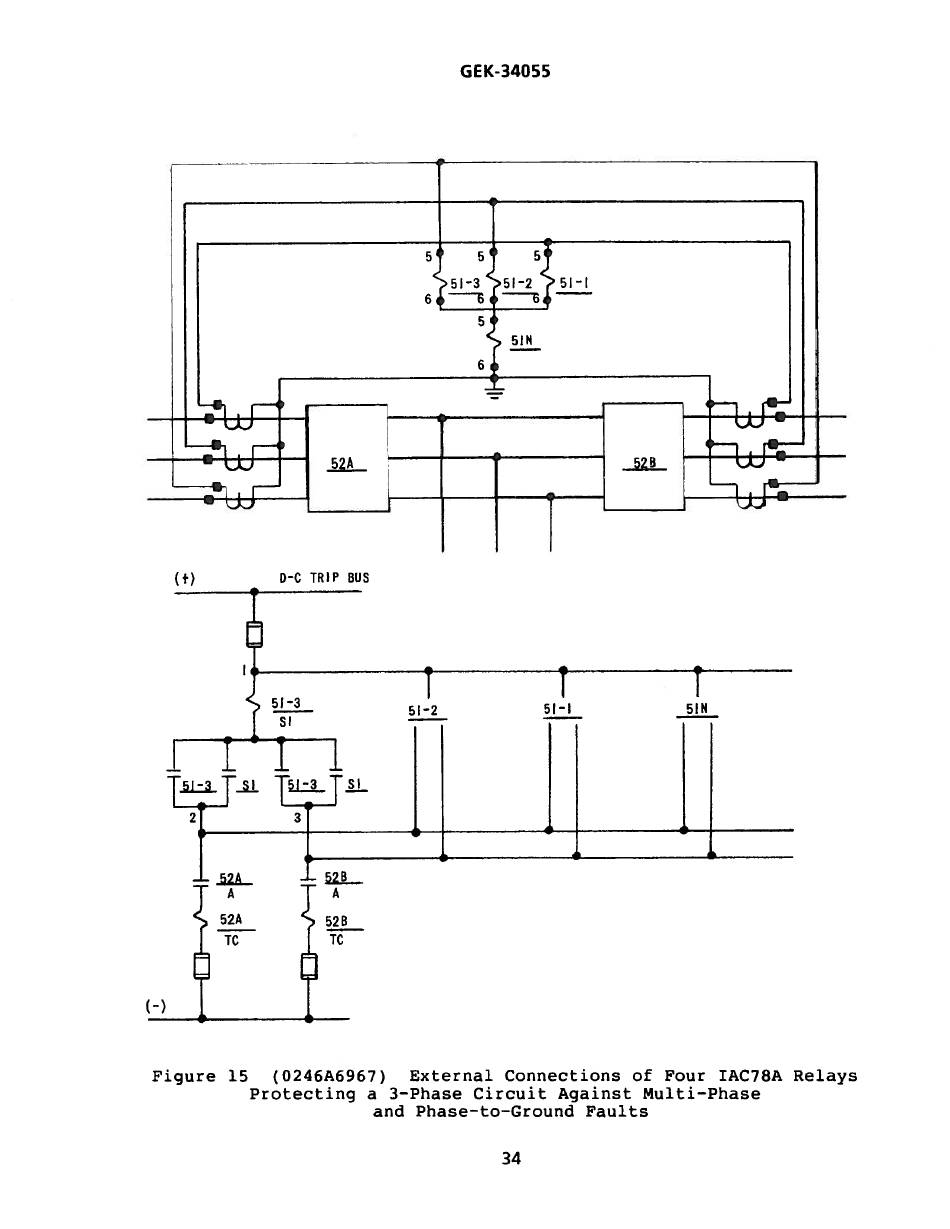

Figure 15
(0246A6967)
External Connections of Four IAC78A Relays
Protecting a 3—Phase Circuit Against Multi—Phase
and Phase—to—Ground Faults
