GEK-34055
CONNECTING PLUG
MAIN
BRUSH
NOTEAFTER ENGAGING AUXILIARY BRUSH, CONNECTING PLUG
TRAVELS 1/4 INCH BEFORE ENGAGING THE MAIN BRUSH ON
THE TERMINAL BLOCK

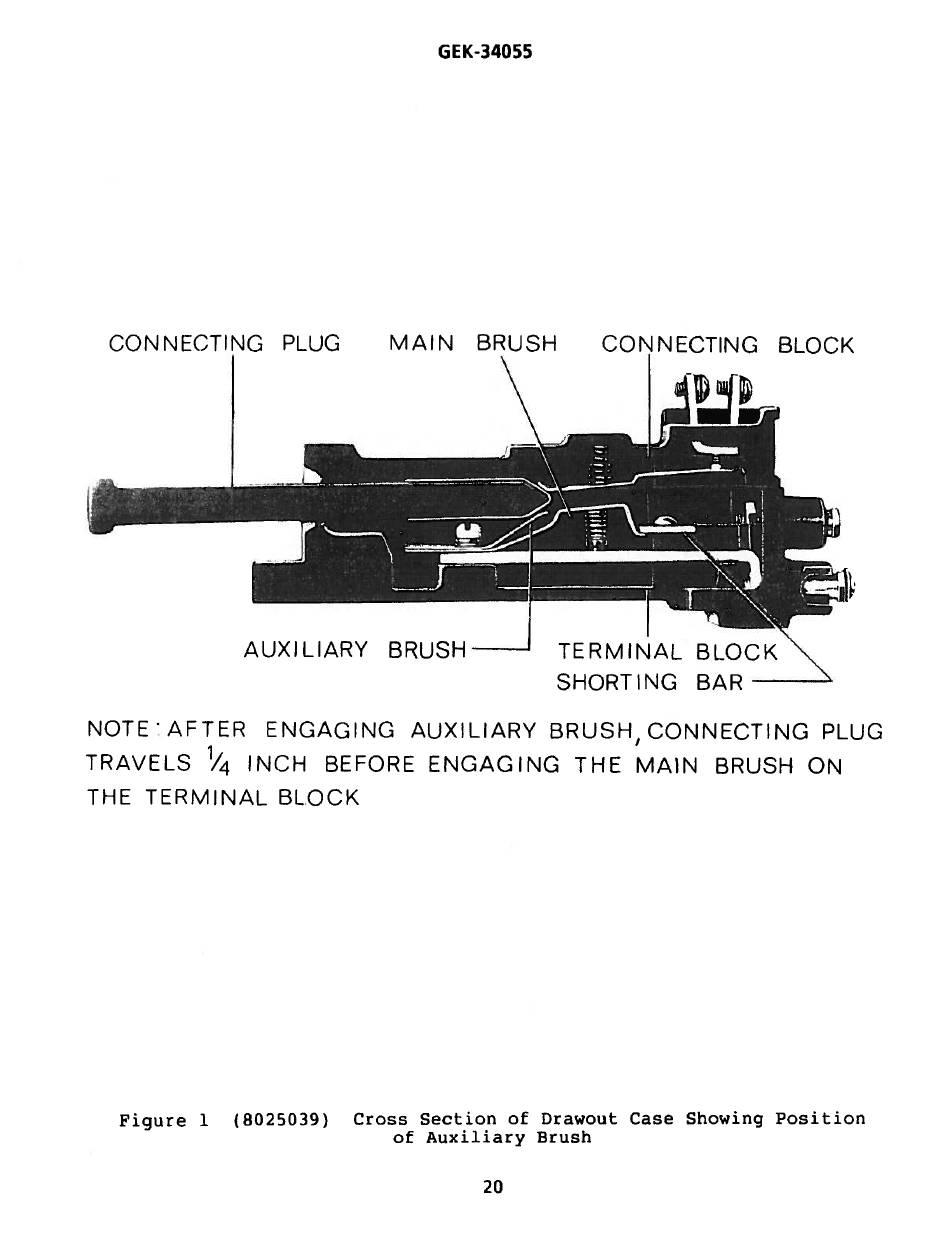

Figure 1
(8025039)
Cross Section of Drawout Case Showing Position
of Auxiliary Brush
CONNECTING
BLOCK
AUXILIARY BRUSH
TERMINAL BLOCK \
SHORTING BAR
20
