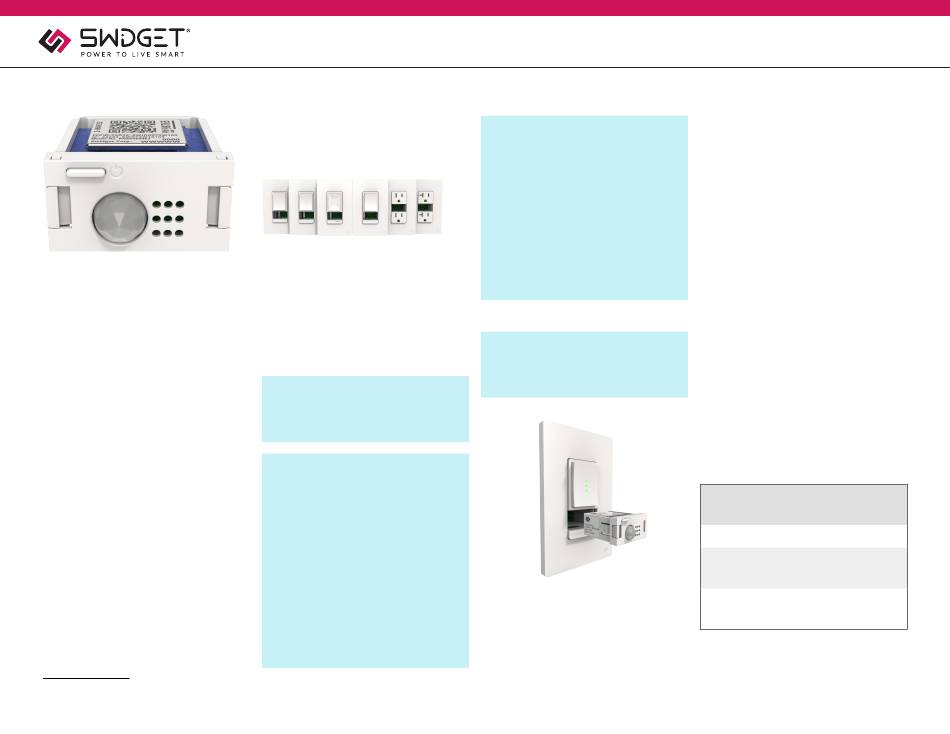

Swidget Z-WAVE ZW006UWA Manual

Z-WAVE™ CONTROL + TEMPERATURE, HUMIDITY, AND MOTION INSERT
Model Number: ZW006UWA
Electrical Rating: 5VDC
Description
TM
The Z-Wave Control Insert allows the user to
control and monitor a Swidget Wiring Device.
Users can use the various available Swidget
Inserts to create sensor-based automation,
where air quality, temperature, humidity, and
pressure conditions can trigger actions in Swidget
wiring devices, send notifications, and more. Z-
Wave is a standardized mesh network protocol
used by many devices and hubs. Swidget
certification to this standard means compatibility
with other Z-Wave certified devices or hubs.
Please consult your Z-Wave controller/hub
manufacturer for instructions on how to add a
new Z-Wave device. This product can be operated
in any Z-Wave network with other Z-Wave
certified devices from other manufacturers. All
non-battery operated nodes within the network
will act as repeaters regardless of vendor to
increase reliability of the network.
Features
• Remote ON/OFF control via external Z-Wave
controller/hub.
• Manual ON/OFF control via front panel push
button.
• Instantaneous W and kWh consumption for
1
host wiring device.
• Independent meter reports for each receptacle
when used with a Swidget 15A or 20A outlet.
1 *Not applicable to Auxiliary and 20-40-60 Control Switch.
1 ©2023 SWIDGET CORP. ALL RIGHTS RESERVED.
IMPORTANT SAFETY INSTRUCTIONS
Swidget Wiring Devices
The Insert must be installed in a Swidget Wiring
Device to operate. The following Wiring Devices
are available:
1. S16009WA - Auxiliary Control Switch
2. S16008WA - 20/40/60 Control Switch
3. SD3002WA - Dimmer Switch
4. S16001WA - On/Off Switch
5. R1015SWA - 15A Outlet
6. R1020SWA - 20A Outlet
The final features and functionalities will depend
on your selection of Insert + Wiring Device
combination.
IMPORTANT
This Insert must only be installed and used with
an approved/certified Swidget Wiring Device.
Usage with any other devices is not permitted
and will result in the warranty becoming void.
WARNING
• While not required, it is recommended to
avoid any risk of shock or death, turn off
power at the circuit breaker or fuse and test
that the power is off before installing or
removing any Insert.
• Not for use to control medical or life support
equipment.
• For INDOOR use only: 0°C to 40°C (32°F to
104°F).
• Insert can only be installed in one
orientation. Rear alignment pins prevent
incorrect installation. Do not forcibly install
an Insert.
• Do not use Z-Wave devices to control
electric heaters or any other appliances
which may present a hazardous condition
due to unattended or unintentional or
automatic power on control.
• Requires a certified Z-Wave hub for
operation.
• Double check any external Z-Wave settings
for accuracy before using them.
• This device complies with Z-Wave standard
of open air, line of sight transmission. Actual
performance in a home depends on the
numbers of walls and obstacles between the
Insert and other Z-Wave devices / hubs.
• This device must be used in conjunction with
an S2 Security Enabled Z-Wave Controller
to fully utilize all implemented security
functions.
Installation
CAUTION
It is recommended to turn off power at the
circuit breaker or fuse and to test that the
power is off before installing or removing an
insert.

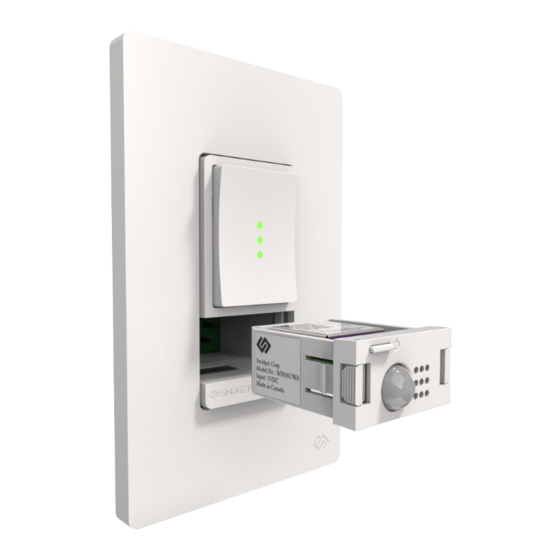

1. This Insert is to be installed in a Swidget
Wiring Device ONLY.
2. Orient the Insert to line up with the pins in
the Wiring Device cavity. NOTE: alignment
pins will prevent incorrect installation.
3. Push Insert into the Wiring Device cavity
until the two side latches engage.
4. Re-enable power to the circuit breaker.
5. For a first time installation or after an Insert
reset, the Insert requires network ADD
pairing / joining (see below).
6. For Inserts being moved, the Insert will
power up with the previous location settings.
For any required adjustments, consult the
manual of the connecting Z-Wave controller /
hub.
Association Groups
An Association Group in Z-Wave technology
is a list of linked devices that allows direct
communication between them, bypassing the
need for a hub or controller. Each group, or
set of devices, is linked with a specific event,
such as motion detection. The device initiating
the communication, known as the "source, " can
send commands to the "target" devices within
the group. The number of Association Groups a
Swidget Insert can support will vary depending
on the Insert features and the Swidget Wiring
Device it is installed in. Each association group
can support up to 5 targets (nodes). Please
refer to the Swidget Z-Wave Product Manual for
additional information.
Command Classes
Command Ver Required Supported
Class Security Swidget
Class Wiring
Devices
Z-Wave Plus™ 2 None All
Info
Basic 2 Highest All
Granted
Security
Class
Binary Switch 2 Highest All except
Granted Dimmer
Security Switch
Class
Z-Wave Control + THM Insert Instructions
