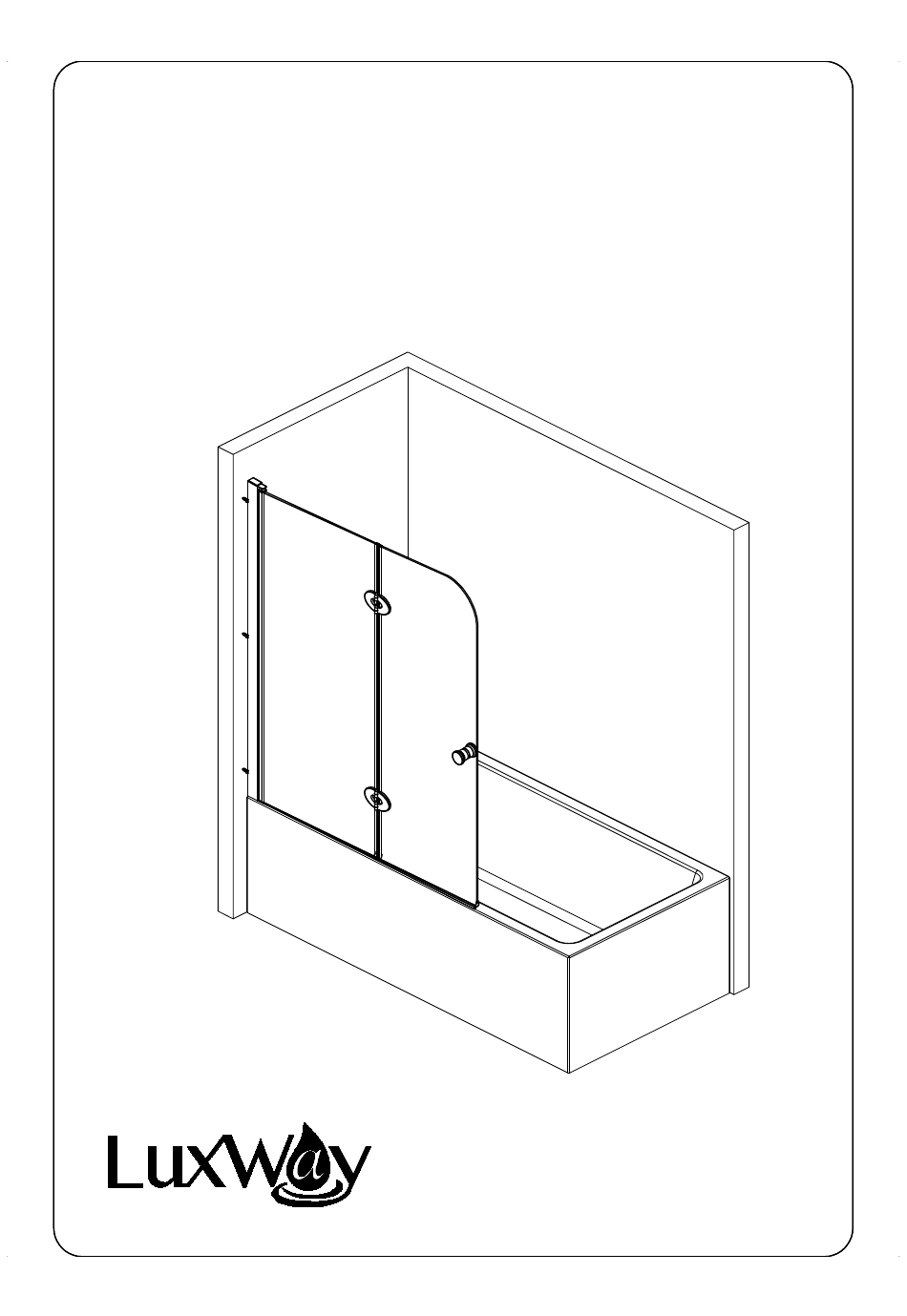

- Page 1 Installation Manual OAK BI-FOLD SHOWER TUB DOOR C0795-A00-02...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PACKAGE CONTENTS TOOLS REQUIRED &SAFETY INFORMATION LEVEL & PLUMB CONDITIONS LEFT OR RIGHT BATHSCREEN INSTALLATION WALL JAMB INSTALLATION FIXED PANEL INSTALLATION HINGE & DOOR KNOB INSTALLATION SEAL INSTALLATION SEALING WARRANTY TERMS... -
Page 3: Package Contents
PACKAGE CONTENTS... - Page 4 PACKAGE CONTENTS Wall Jamb Fixed Panel Wall Anchor 3+1pcs 3+1pcs Hinge Vertical Seal 2pcs 3pcs 3+1pcs Cover Door glass Bottom Seal Plastic Pad Fitting Door Knob 1+1pcs 3pcs...
-
Page 5: Tools Required &Safety Information
TOOLS REQUIRED Allen Key Suitable Drill Bits Impact Drill Spirit Level Screw Driver Gloves 5/16"mm dia. * 1/8"mm dia. Rubber Hammer Pencil Glue Tape Measure Utility Knife Goggles Right Angle Ruler Sealant Wood SAFETY INFORMATION SAFETY INFORMATION *Please read the entire installation manual before attempting to assemble, operate or install the product of shower door and/or bathtub-door. -
Page 6: Level & Plumb Conditions
LEVEL & PLUMB CONDITIONS Bathtub curb and shower wall should be reasonably level and plumb. The "telescoping" wall jamb allows up to 1/2" out of plumb adjustment. Level... -
Page 7: Left Or Right Bathscreen Installation
LEFT OR RIGHT BATHSCREEN INSTALLATION Bath shield comes set up for left side installation. If you want to install it to the right side, loosen the screws on the top and bottom of the wall panel pivot aluminum (4) and then reverse or flip the panel glass. -
Page 8: Wall Jamb Installation
WALL JAMB INSTALLATION 1.Center the wall jamb to the tub curb leaving at least 1/2" to the outside edge of tub. Mark the holes' position on back side of wall jamb (2) with pencil. rubber hammer. 4-5. Then apply some silicone around the holes of wall anchors, and fix the wall jamb (2) with screws (5) with screw driver. -
Page 9: Fixed Panel Installation
FIXED PANEL INSTALLATION 1.Insert the fixed panel (4) to the wall jamb (2) while keeping the panel parallel to the tub curb. on the wall jamb. Secure the panel with screws (3) with a screw driver, not a drill. Then press the cap on top(6) by hand. -
Page 10: Hinge & Door Knob Installation
HINGE & DOOR KNOB INSTALLATION 1.Obtain your helper's assistance to brace the outer panel in position. Use setting blocks to space the outer panel above the tub curb at same height as the wall panel. Install the hinges on the wall panel and outside panel (9). Press the caps on the hinges byhand. 2.Install the door knob (14) on the door panel (9). -
Page 11: Seal Installation
SEAL INSTALLATION Open the bifold & door panel. 1.Install the vertical seal (8) on the two panels. 2-3. Install the bottom seals (10) on the two panels. Then cut the extra part of bottom seals. -
Page 12: Sealing
SEALING Ensure the bi-fold door closes and opens smoothly. Apply silicone around the outside and inside of wall jamb & bottom of wall jamb to help avoid water leaks. Allow 24 hours for silicone to dry. 24 hour... -
Page 13: Warranty Terms
TRITON, POSEIDON, OAK and FLORA models We will warrant the original purchaser of the TRITON or POSEIDON or OAK or FLORA models to be free of manufacturing defects for up to 5-years from the date of purchase. If a defect is found, we will provide a replacement part or product.
