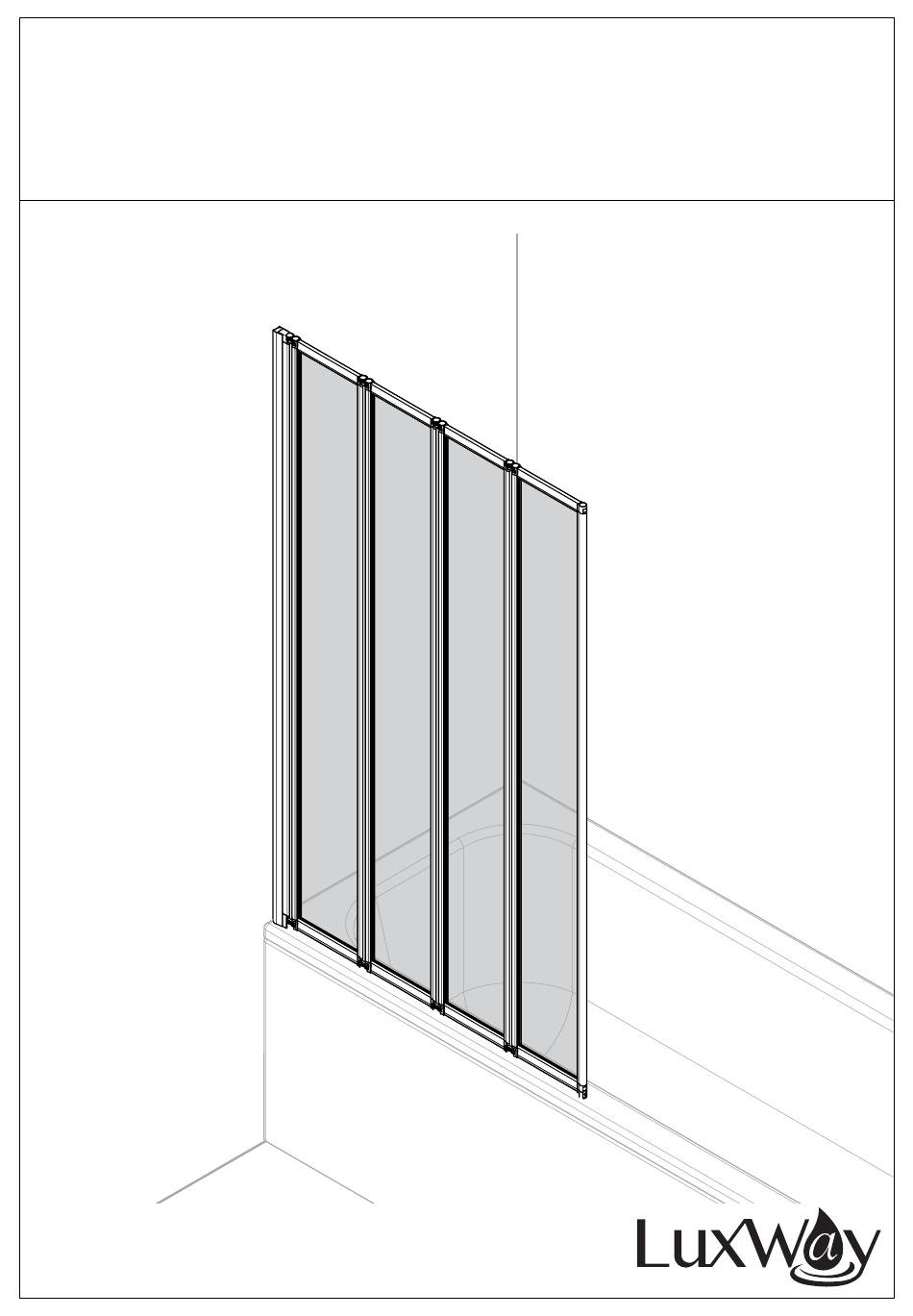

Triton 4-Fold Bath Screen
• Instruction suitable for Right Side or Left Side Installation .

Advertisement

loading
Need help?

Need help?

Do you have a question about the Triton and is the answer not in the manual?

Questions and answers

Related Manuals for LuxWay Triton

Summary of Contents for LuxWay Triton

  • Page 1 C0662-A00-01 Triton 4-Fold Bath Screen • Instruction suitable for Right Side or Left Side Installation .
  • Page 2 Before You Start • Check that the bath has been installed correctly and that it is level. Please Note: All Fig.A. product supplied without bath. • Check that there is su cient space on the bath for the product and that the screen movement does not impact on other items such as sinks and taps.
  • Page 3 Parts & Fittings Supplied Keep small parts away from children Bath Screen Assembly Oversized Horizontal Seal (Cut to suit) We have taken great care to ensure that this product reaches you in perfect condition. However should any parts be damaged or missing please contact your point of purchase. This does not a ect your statutory rights.
  • Page 4 Wall Channel Hinge Screw Cover Cap End Cap Moulding Seal End Cap* * Left and Right Hand variants Supplied (1 No. of each)
  • Page 5 Loose Screws & Fittings Supplied No.8 x 1½” Pan Head Pozi Screws (actual size) Wall Plugs (actual size) Screw Snap Cap Base (actual size) No.8 x ⅜” Pan Head Pozi Screws (actual size) Screw Snap Caps (actual size)
  • Page 6 Tip: Mark position When drilling tiles apply pre-drilled Wall Channel holes masking tape to surface to stop drill bit slipping. Wall plugs supplied are for solid walls only. Ensure correct wall plug for wall type is used. If in doubt seek professional advice. Position wall channel on wall.
  • Page 7 Horizontal Seal Preparation Slide Horizontal Seal into position Slide Horizontal Seal into position Tip: Tie end of seal Apply a small amount of Silicone into tight knot Lubricant to the Horizontal Seal to help slide into position.

  • Page 8: Important Note

    Underside View IMPORTANT NOTE: Please ensure that Silicone Sealant is apply fully between Horizontal Seal and Bottom Hinge Moulding as shown. Horizontal Seal Bottom Hinge Moulding Plan View Bottom Hinge Moulding Horizontal Seal Remove screw as shown. Push fit End Cap Moulding, fix using screw removed in...
  • Page 9 Apply a small amount of silicone sealant to End Cap and Seal End Caps. Push fit End Cap and Seal End Caps. Trim Horizontal Seal overlap Pull Seal Tight to remove any slack.
  • Page 10 OUTSIDE FACE BATH SIDE Please Note: Ensure Horizontal Seal sits on top of bath. Inside View Inside View * 3mm dia. holes through pre-drilled wall channel holes using HSS drill bit 7.1*...
  • Page 11 Inside View Inside View Push fit Hinge Screw Cover Caps. Inside View Inside View Apply a small amount of Silicone Grease from sachet (supplied) to the hinge mouldings.
  • Page 12 Inside View Apply Silicone Sealant, (not supplied). Product Care: Use a non abrasive cleaner. Water marks may be removed with a proprietary limescale remover or household vinegar. 150mm Apply Silicone Sealant, (not supplied).
