Technics SL-HD301 Service Manual

ORDER NO. AD9902011C8
Service Manual
Compact Disc Player
DIGITAL AUDIO
SB-HD301 $B-HD301 Color
SB-HD501 SB-HD501
(N).......... Gold Type
SHS SEER ing
. Bisel aoe Europe, Asia Latin America, Middle Near East,
Africa, Oceania, East Europe and Russia.

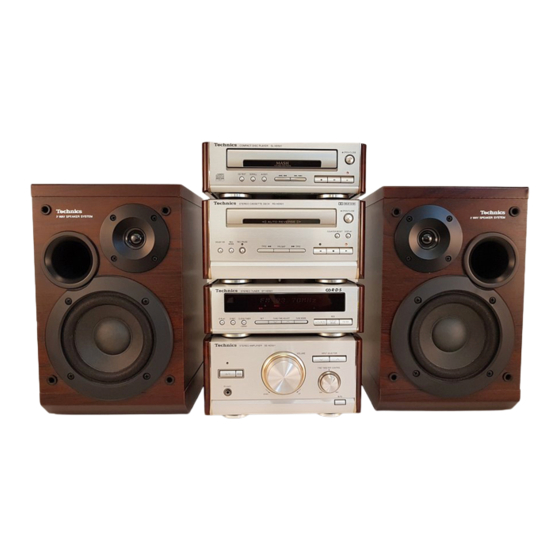

System:SC-HD301
' ' SC-HD501
Remote control RS-HD301 SE-HD301
transmitter RS-HD501 SE-HD501
Because of unique interconnecting cables, when a component requires service, send or bring in
the entire system.
Note:
Refer to the service manual for Model No. SE-HD301/501(ORDER NO.AD 9902013C2 and AD9902014C2) for
information on "ACCESSORIES, "INSTALLATION", 'CONNECTIONS' and "PACKAGING".
RAE0152Z Mechanism Series
Specifications
DA converter: 1 bit 2 DAC MASH Dimensions (WxHxD): (SL-HD301)186 x 67 x 229 mm
Digital output terminal:Opticalx1 (SL-HD501)196 x 67 x 229 mm
Pickup Weight : 1.2 kg
Format - Power Consumption: 10W
Sampling frequency:44.1kHz Notes:
1.Design and specifications are subject to change without notice.
2.Dimensions and weight are approximate.
System : ad
SC-HD301:
Tuner:ST-HD301,Compact Disc Player:SL-HD301 ,Amplifier:SE-HD301,Cassette Deck:RS-HD301,Speakers:SB-HD301 (Made in PAIS.)
SC-HD501:
Tuner:ST-HD501,Compact Disc Player:SL-HD501 ,Amplifier:SE-HD501,Cassette Deck:RS-HD501,Speakers:SB-HD501 (Made in PAIS.)
A\ WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general pubic.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a pod! uct.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt tc service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
Technics
© 1999 Matsushita Electric Industrial Co. Ltcd.
All rights reserved. Unauthorized copying ancl
distribution is a violation of law.
