Summary of Contents for HH MZ-C Series
- Page 1 WALL CONTROLLERS C2-EU C2-US USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS MZ-C SERIES OVERVIEW ........................... 2 FEATURES ..............................2 INSTALLATION GUIDE ............................3 MODELS ................................. 3 WIRING ................................4 USER GUIDE................................ 5 FRONT PANEL ............................... 5 REAR PANEL ..............................5 OPERATION ..............................6 SPECIFICATIONS ............................... 7 MZ-C2 ................................7 DIMENSIONS ..............................8 SAFETY AND WARNINGS .......................... -
Page 3: Mz-C Series Overview
MZ-C SERIES OVERVIEW The MZ-C series from HH are wall mounted volume and source controllers for the MZ install zone amplifier range. All MZ-C2 models include a zone volume control, source select and illuminated status/quick mute switch. The installer can select which zone the controller is assigned to with dip switch settings. -
Page 4: Installation Guide

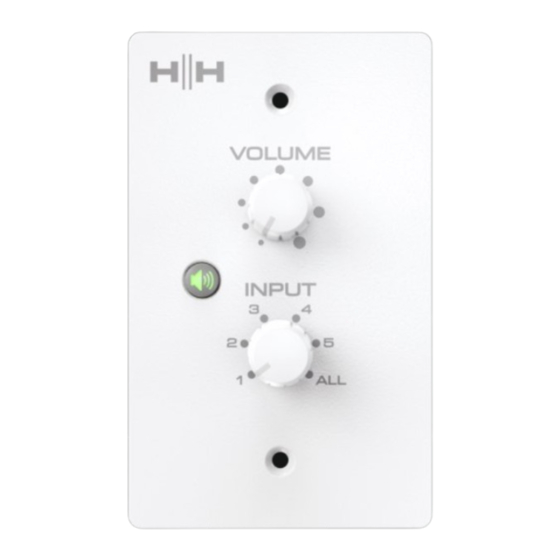

INSTALLATION GUIDE MODELS The MZ-C2 has two control knobs, one for the zone volume and one for the zone input source. Additionally, there is a mute LED to toggle the mute state of the zone(s). Each model comes in two sizes: EU (shown) and US versions, and two colours: white or black. Dimensions for both can be found by going to DIMENSIONS. -
Page 5: Wiring
WIRING One or more wall controllers can be connected to the same MZ amplifier via an RJ45 standard CAT5 cable. A single controller can manage up to 4 zones set via the DIP switch settings on the back, with multiple controllers also able to control the same zone. -
Page 6: User Guide
USER GUIDE FRONT PANEL 1. VOLUME CONTROL Attenuates the volume for all controlled zones. Maximum volume on the controller is equal to whatever the volume is set to on the front panel of the amplifier. Minimum volume is muted. 2. MUTE LED Will light up when connected and the MZ amplifier is powered on, remembering the last state it was set to. -
Page 7: Operation
OPERATION With your wall controllers all connected and their respective zones set, turn on your amplifier (that has already been setup following the separate user manual for the MZ series). Initially keep all controller volumes at maximum, as this will match whatever volumes are set on the amplifier. The volume on the amplifier should be adjusted firstly to the maximum desired level ever to be present in the zone. -
Page 8: Specifications
SPECIFICATIONS MZ-C2 Model MZ-C2-EU-WH MZ-C2-US-WH MZ-C2-EU-BK MZ-C2-US-BK System type Wall volume controller with source select Colour White Black Features Rotary volume control, Rotary source selector. Dual colour mute switch (Red for Controls Muted, Green for active) 4W DIP switch to select Z1,Z2,Z3,Z4 control Input 1x RJ45 LAN connector for direct connection to the master zone amplifier Connectors... -
Page 9: Dimensions
DIMENSIONS Page 8... -
Page 10: Safety And Warnings
SAFETY AND WARNINGS To take full advantage of your new product and enjoy long and trouble-free performance, please read this owner's manual carefully, and keep it in a safe place for future reference. 1) Unpacking: On unpacking your product, please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. - Page 11 Intended to alert the user to the presence of uninsulated ‘Dangerous Voltage’ within the products enclosure that may be sufficient to constitute a risk of electrical shock to persons. Ce symbole est utilisé pur indiquer à l’utilisateur de ce produit de tension non-isolée dangereuse pouvant être d’intensité...
- Page 12 STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD HH ELECTRONICS PART OF HEADSTOCK GROUP FOR THE LATEST INFORMATION PLEASE VISIT IN THE INTEREST OF CONTINUED DEVELOPMENT, HH RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION. V1.0 Page 11...
