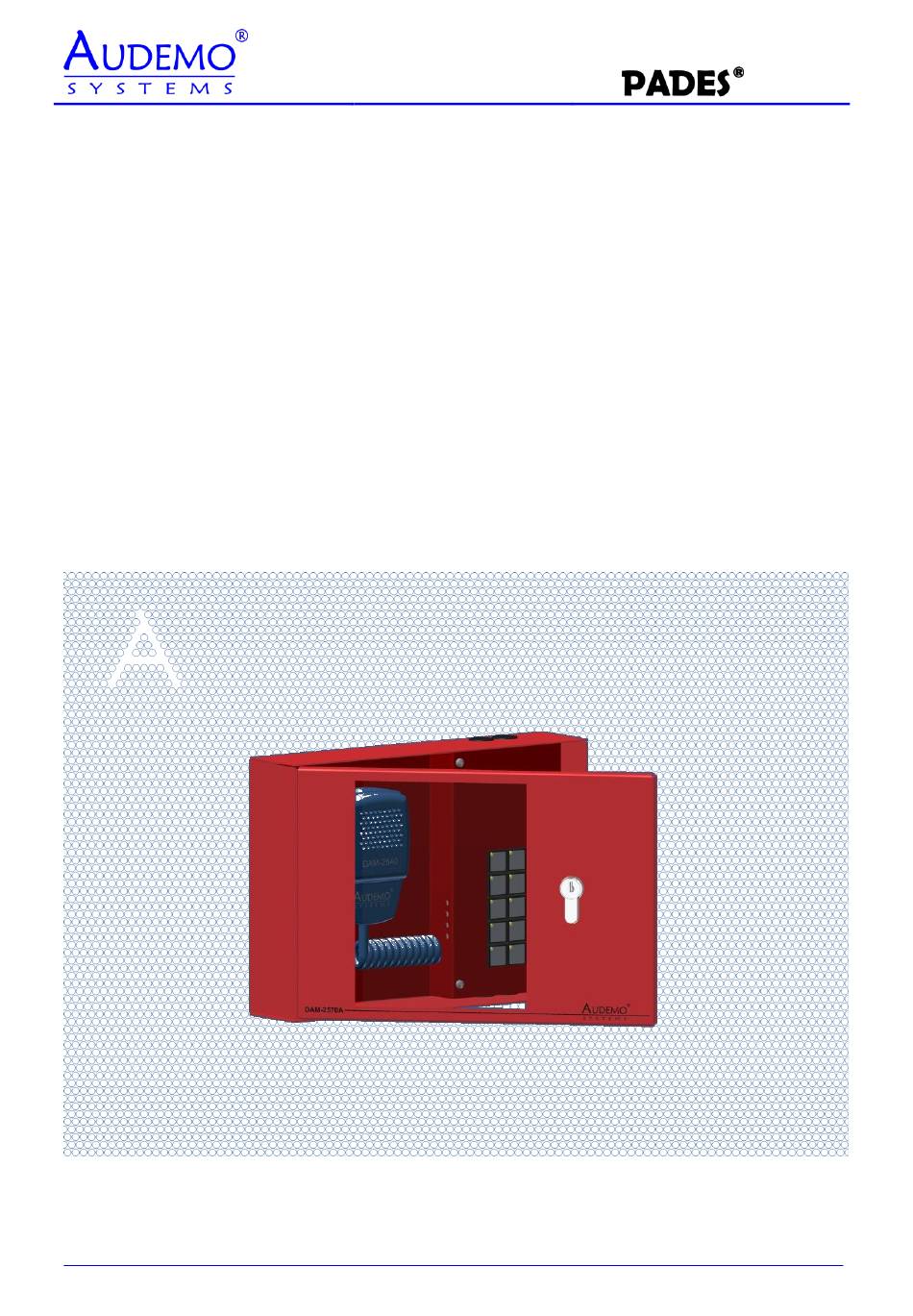

- Page 1 DAM-2570 A 2000-Series User Manual DAM-2570 A Digital-Fire-Brigade-Selective-Remote- Microphone-Unit ® Page 1 ©2023 by AUDEMO-SYSTEMS , Schatzbogen 62, 81829 München...
-
Page 2: Table Of Contents
DAM-2570 A 2000-Series Index 1. General .......................... 3 Symbols and Important Notes .................. 3 2. Safety Instructions ......................4 Please Note: ......................5 3. Technical Features ......................6 4. Operation........................7 5. Options ........................... 8 6. Technical Specifications ....................9 Digital-Fire-Brigade-Selective-Remote-Mic.-Unit (DAM-2570 A) .......... -
Page 3: General
DAM-2570 A 2000-Series 1. General This operation manual includes important notes on safe operation of the unit. Please read all instructions and safety regulations. Keep these instructions for future reference. Take care that the operation manual is available to all users. Our products are subject to continuous development. -
Page 4: Safety Instructions
Do not open or modify the unit. Opening of the security protected united for servicing, repair and so on is only al- ® lowed by the service department of AUDEMO SYSTEMS . Interventions to the unit and breaking the seals will invalidate the warranty agreement! -
Page 5: Please Note
DAM-2570 A 2000-Series Please Note: DANGER! CAUTION! Risk of electric shock of dangerous voltage Operating Conditions within the units enclosure The unit is intended for indoor use. To prevent damage do not use this unit near Within the units enclosure there are uninsulated parts liquids and moisture. -
Page 6: Technical Features
DAM-2570 A 2000-Series 3. Technical Features ® According to DIN EN 60849 the PADES 2000 Digital-Fire-Brigade-Selective-Remote- Microphone-Unit DAM-2570 A is a monitored fire-brigade-remote-microphone with the possi- bility of room- and group-calls using up to ten programmable memory keys. The remote- ®... -
Page 7: Operation
DAM-2570 A 2000-Series 4. Operation Emergency announcement with a fire brigade remote microphone DAM-2570 A: Attention: Emergency announcement must only be executed by authorized per- sons e.g. police, fire fighter or rescue forces. The emergency announcement is a live-announcement with highest priority. Even the automatic alert announcement caused by fire detection will be interrupted! ... -
Page 8: Options
DAM-2570 A 2000-Series 5. Options Order number Description Max. extension per unit DAM-2570 A Digital-Fire-Brigade-Selective-Remote-Microphone-Unit DAM-2540 A Digital-Fire-Brigade-Handheld-Microphone DAM-2541 A Digital-Fire-Brigade-Microphone-Signal-Connection-Board DAM-2542 A Fire-Brigade-Microphone-Connection-Board DAM-2545 A Digital-Fire-Brigade-Microphone-Selective-Call-Board DAM-2580 A A.F.-Input/Output-Transformer DMS-2098 A Special-Legend All options could only be assembled ex works. All components of the electroacoustic system could only be delivered referring to a project. -
Page 9: Technical Specifications
DAM-2570 A 2000-Series 6. Technical Specifications Digital-Fire-Brigade-Selective-Remote-Mic.-Unit (DAM-2570 A) Power supply 24 V DC Power consumption 35 mA Colour (surface) RAL 3000 (red) Dimensions (W × H × D) 227 × 180 × 57 mm Weight Digital-Fire-Brigade-Handheld-Mic. (DAM-2540 A) Microphone cartridge dynamic Polar pattern cardioid... -
Page 10: Environment Protection
DAM-2570 A 2000-Series 7. Environment Protection Note: In any case of replacement, the substituted unit is taken back from the manufac- turer. Dispose of this Product This product is subjected to European directive 2002/96/EG and 2012/19/EU (WEEE-directive). Dispose this product never with your domestic waste. Dispose a control center system with an accredited waste disposal company or your local disposal facility.
