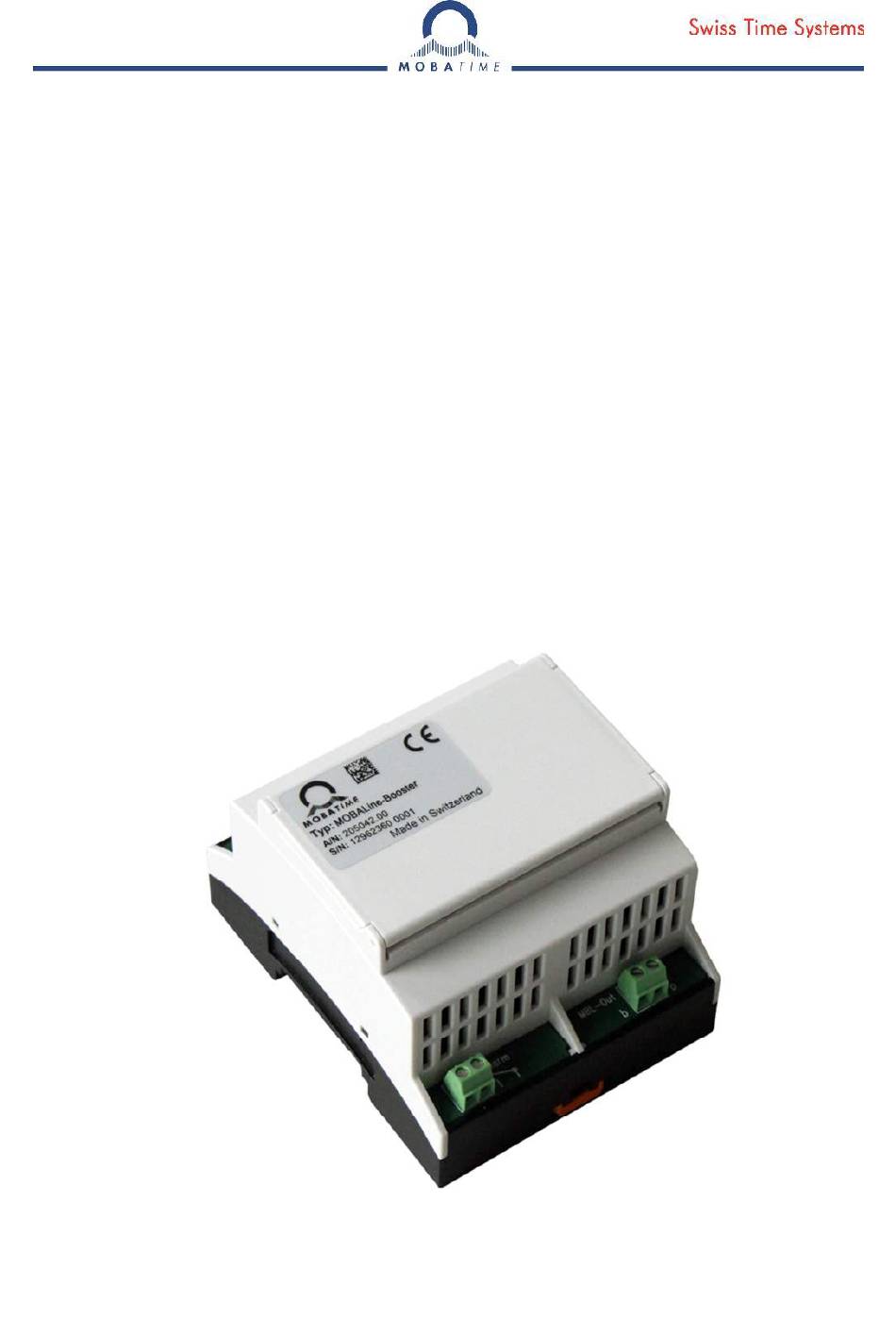

- Page 1 MOUNTING AND INSTRUCTION MANUAL MOBALine-Booster Please read these instructions carefully before installation. © MOBATIME BE-800911.01...
- Page 2 © MOBATIME 2 / 17 800911.01...
- Page 3 Product Certification STANDARDS The MOBALine-Booster was developed and produced in accordance with the EU Guidelines 2004 / 108 / EC 96 / 48 / EC References to the Instruction Manual 1. The information in this Instruction Manual can be changed at any time without notice. The cur- rent version is available for download at www.mobatime.com.
-
Page 4: Table Of Contents
Technical data ............................8 Device designation in this manual......................8 Function description ..........................8 3.4.1 Monitoring............................9 3.4.2 Alarm system..........................9 Configuration, displays and connections.....................10 MOBALine-Booster ..........................10 External switch-mode power supply......................11 Mounting and installation..........................12 Application examples ..........................13 Technical data .............................14 MOBALine-Booster ..........................14 External switch-mode power supply......................14 Dimensions..............................15 MOBALine-Booster ..........................15... -
Page 5: Safety
Additional information for the use of the device. Intended use The MOBALine-Booster is a device for the amplification of MOBALine lines with re- gard to output and range. Please refer to section 3.3 – Function description – for a detailed function description. -
Page 6: Observe Operating Safety
To avoid any operating problems, keep the device away from moisture and avoid dust, heat, and direct sunlight. Do not use the device outdoors. The MOBALine-Booster is designed for DIN rails and should only be operated in- stalled on a DIN rail. -
Page 7: Maintenance
Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 7 / 17 800911.01... -
Page 8: General Information: Introduction
This manual relates to the MOBALine-Booster. For purposes of better readability the designation booster is used in the following sections. Function description The MOBALine-Booster is a device for the amplification of MOBALine lines with regard to output and range. For this purpose the MOBALine input signal is adapted and ampli- fied. -
Page 9: 3.4.1 Monitoring
The following illustration shows the block circuit diagram of the MOBALine-Booster: 3.4.1 Monitoring The MOBALine-Booster carries out the following tests to check for correct operation: Test Threshold value Lower than 21 V error Supply voltage Lower than 9 V effective error MOBALine input voltage Higher than 800 mA effective ... -
Page 10: Configuration, Displays And Connections
Configuration, displays and connections MOBALine-Booster The booster has the following connections and displays: Group Caption Meaning and function MOBALine input signal, connection b MOBALine In MOBALine input signal, connection a "-" Negative power supply connection Supply "+" Positive power supply connection... -
Page 11: External Switch-Mode Power Supply
Connections for the positive output voltage 3 & 4 Connection V- Connections for the negative output voltage 5 & 6 DC OK Status LED of DC output. ON = OK Trimmer VADJ Control for adjustment of the output voltage © MOBATIME 11 / 17 800911.01... -
Page 12: Mounting And Installation
Mounting and installation To mount the MOBALine-Booster and activate it for the first time, the following procedure can be followed: Mount the DIN rail in the desired place. Fit booster and switch-mode power supply DR-30-24 onto the rail. Connect supply between switch-mode power supply and booster with the power supply cable included in the scope of delivery. -
Page 13: Application Examples
Up to 2 boosters can be used in a series. If more boosters are used serially, the signal gets distorted and can not be reliably detected by clocks anymore. Example 1: Airport Example 2: Office building © MOBATIME 13 / 17 800911.01... -
Page 14: Technical Data
Technical data MOBALine-Booster Minimum level 10 Veff MOBALine input Maximum load <1 mA Maximum output load 800 mA MOBALine output Output voltage 15 – 18 Veff Voltage range 24 – 30 VDC Supply Max. input current Alarm LED (red) Display... -
Page 15: Dimensions
Dimensions MOBALine-Booster External supply-mode power supply Length 142 mm © MOBATIME 15 / 17 800911.01... - Page 16 © MOBATIME 16 / 17 800911.01...
- Page 17 © MOBATIME BE-800911.01...
