User's guide of the SCENAR Sport D 2021
Before starting using your SCENAR you need to remove the protective film from the device's electrode.
Now open the battery compartment lid and insert the battery making sure the polarity is correct. You will hear the
sound. After 2 seconds the operation system will load and your device will enter the default state. On the screen you
will see the following symbols. A, which is the treatment energy, and by default it is set to one. Dosing mode D and
the presets are switched off, which is indicated by zeros. The default frequency is 60 Hz. The same things will appear
when you reset the device settings or change the battery.
If at some point you got confused with the modes you can reset your device by pressing and holding the arrow and
square button for approximately 2 seconds until you hear the intermittent sound. You can do that even when your
device is switched off.
If your device does not have any contact with skin for 60 seconds it is automatically switched off.
So how do you switch your device on? To switch it on or off you need to press and hold the square button for
approximately 2 seconds until you hear the intermittent sound signal. Please keep in mind, all settings will remain
the same as you left them before you switched the device off, except the treatment energy, which will be again set
to 1.
If you want to switch the device on and keep the value of treatment energy that was set during the previous
session, press and hold the combination of square and plus buttons.
If the battery is low, SCENAR will let you know. The device will make short beeps every 2 seconds. In this case just
replace the battery.

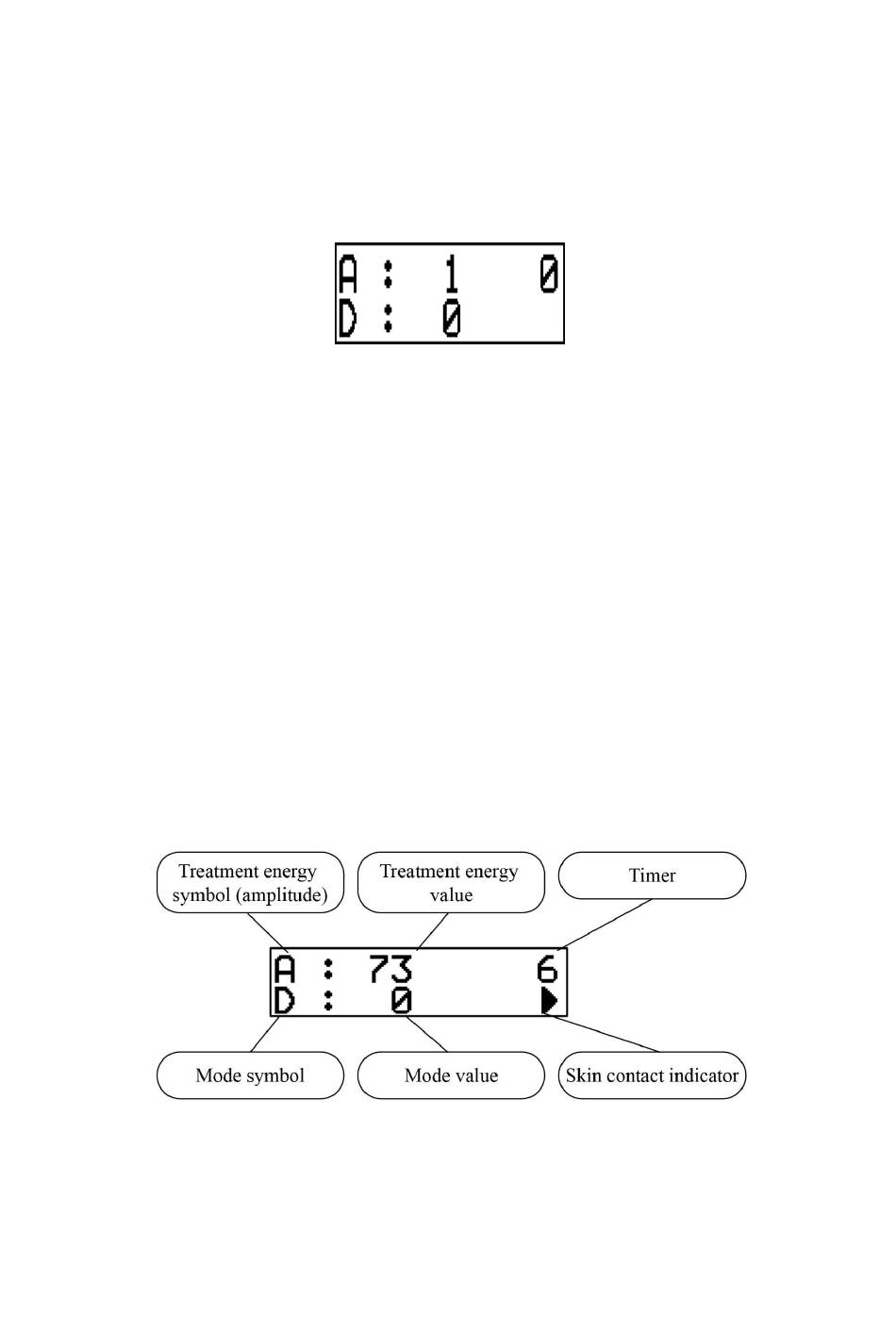

Now let's talk about the symbols on the screen.

Treatment energy (Amplitude) symbol

Treatment energy (Amplitude) value

Timer

Mode symbol

Mode indication

Skin contact indication

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sport D 2021 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SCENAR Sport D 2021

  • Page 1 If you want to switch the device on and keep the value of treatment energy that was set during the previous session, press and hold the combination of square and plus buttons. If the battery is low, SCENAR will let you know. The device will make short beeps every 2 seconds. In this case just replace the battery.
  • Page 2 • In the upper left corner we got the treatment energy symbol (“A” or Amplitude) and its value in units from 1 to 250; • In the upper right corner we got the timer which uses the minutes/seconds format; • In the bottom left corner you can see the symbol of the last mode or setting and its indication;...
  • Page 3 In addition to the manual modes SCENAR has two pre-installed presets. The use of these presets is determined by the new rules and protocols of systemic SCENAR therapy. Each phase of the preset is intended for influencing the particular type of nerve fibers or receptors.
  • Page 4 • Preset 1 – «P1» or «ACUTE» has a single sound • Preset 2 – «P2» or «SYSTEM» has two sounds When the preset is switched on you can see the current phase of the preset on the screen in real time. Selected preset Phase number Phase timer...
  • Page 5 Some mode pro tips for you and your SCENAR. If you want to highlight the screen, press the square button. If you prefer quiet work and want to switch off the sounds, press the combination of the arrow and minus button.
