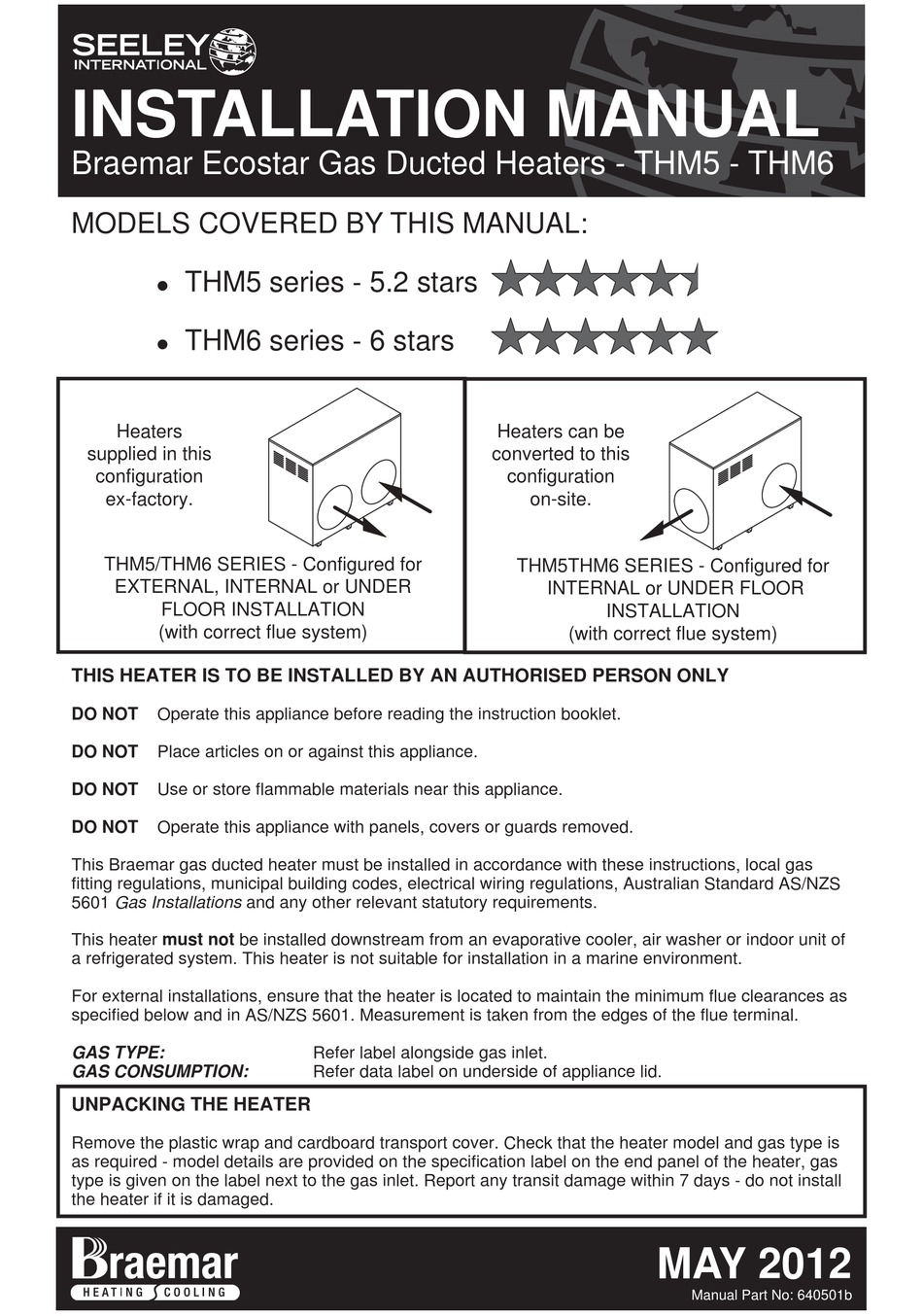

INSTALLATION MANUAL
Braemar Ecostar Gas Ducted Heaters - THM5 - THM6
MODELS COVERED BY THIS MANUAL:
THM5 series - 5.2 stars

THM6 series - 6 stars

Heaters
supplied in this
configuration
ex-factory.
THM5/THM6 SERIES - Configured for
EXTERNAL, INTERNAL or UNDER
FLOOR INSTALLATION
(with correct flue system)
THIS HEATER IS TO BE INSTALLED BY AN AUTHORISED PERSON ONLY
DO NOT
Operate this appliance before reading the instruction booklet.
DO NOT
Place articles on or against this appliance.
DO NOT
Use or store flammable materials near this appliance.
DO NOT
Operate this appliance with panels, covers or guards removed.
This Braemar gas ducted heater must be installed in accordance with these instructions, local gas
fitting regulations, municipal building codes, electrical wiring regulations, Australian Standard AS/NZS
5601 Gas Installations and any other relevant statutory requirements.
This heater must not be installed downstream from an evaporative cooler, air washer or indoor unit of
a refrigerated system. This heater is not suitable for installation in a marine environment.
For external installations, ensure that the heater is located to maintain the minimum flue clearances as
specified below and in AS/NZS 5601. Measurement is taken from the edges of the flue terminal.
GAS TYPE:
GAS CONSUMPTION:
UNPACKING THE HEATER
Remove the plastic wrap and cardboard transport cover. Check that the heater model and gas type is
as required - model details are provided on the specification label on the end panel of the heater, gas
type is given on the label next to the gas inlet. Report any transit damage within 7 days - do not install
the heater if it is damaged.
Refer label alongside gas inlet.
Refer data label on underside of appliance lid.
Heaters can be
converted to this
configuration
on-site.
THM5THM6 SERIES - Configured for
INTERNAL or UNDER FLOOR
INSTALLATION
(with correct flue system)
MAY 2012
Manual Part No: 640501b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Braemar Ecostar THM5 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SEELEY INTERNATIONAL Braemar Ecostar THM5 Series

  • Page 1 INSTALLATION MANUAL Braemar Ecostar Gas Ducted Heaters - THM5 - THM6 MODELS COVERED BY THIS MANUAL: THM5 series - 5.2 stars   THM6 series - 6 stars   Heaters Heaters can be supplied in this converted to this configuration configuration ex-factory.
  • Page 2: Heater Configuration

    HEATER CONFIGURATION SWAPPING INLET & OUTLET PANELS The heater side panels can be moved to suit a range of installations. To do this: Remove heater top panel. Remove the screws securing the side/end panels that are to be changed. Remove the side panels. Move the inner metal insulation panel to the side or end of the heater to ensure a twin- skin sheetmetal layer is maintained.
  • Page 3 Re-connect the combustion fan suction hose onto the pressure switch suction  connector. Re-connect wiring loom plug into socket.  Re-connect the ignition lead and flame sense lead to ignition pack.  Re-fit heater top panel.  TEST THE HEATER ONCE RE-CONNECTION HAS BEEN COMPLETED SEELEY INTERNATIONAL – INSTALLATION MANUAL...
  • Page 4 SCC & loom is required for each additional zone - SCC/loom/instructions kit P/No 077314 Fitting a filter is recommended. Zone dampers and suitable wiring (not supplied by Seeley International) A filter may generate some air flow noise - the owner should be advised.
  • Page 5 Ensure that “COOL 2” is selected during system set-up to enable the system to operate the regfrigerated cooling system - refer to “Commissioning” section in these instructions. EVAPORATIVE AIR-CONDITIONER CONNECTION A Seeley International evaporative air-conditioner equipped with a CPMD controller can be operated...
  • Page 6 Seeley International Pty Ltd has a policy of continuous improvement and may therefore make changes to these specifications without notice. Whilst every care has been taken to assure the accuracy of the data in this manual, Seeley International does not assume any liability for errors and/or omissions.
  • Page 7: Gas Connection

    Electrical wiring & fittings must be installed by a licensed Electrician. Active Neutral  Seeley International recommends that all Braemar gas ducted heaters are wired with a dedicated circuit from the distribution board with a separate circuit breaker.  Wiring must be installed in accordance with the relevant electrical standards &...
  • Page 8: Thermostat Installation

    SCC is HEAT connected to the BSC). HOME ZONE In a multiple-SCC system, this becomes the “master” ON/OFF SCC. Refer to instructions HOME/AWAY supplied with zone kit for connection of up to 3 additional SCC’s. SEELEY INTERNATIONAL – INSTALLATION MANUAL...
  • Page 9: Heater Dimensions

    Alternative electrical entry Note 1: AIR OUTLET AIR INLET AIR OUTLET AIR INLET points can be used - knockouts Alternative electrical entry points can be are provided. used - knockouts are provided. THM5, THM6 series SEELEY INTERNATIONAL – INSTALLATION MANUAL...
  • Page 10: Installation Checklist

    INSTALLATION CHECKLIST PLEASE TICK THE BOXES TO CONFIRM THAT ALL RELEVANT TASKS ARE COMPLETE AND RETAIN THIS FORM FOR YOUR RECORDS Customer name: _____________________________________________________________ Customer address: ___________________________________________________________ Model number: ____________________ Serial number: __________________  Outside  In ceiling Under floor Heater installed: ...
  • Page 11 Terminate condensate connections with drain in a suitable location silicone sealant or Concrete slab PVC primer and Remove & discard lower solvent cement. transit plug Condensate drain elbow THM5, THM6 series SEELEY INTERNATIONAL – INSTALLATION MANUAL...
  • Page 12 PVC drain line. It is not designed to take Terminate condensate drain the place of a 90 bend. in a suitable location THM5, THM6 series SEELEY INTERNATIONAL – INSTALLATION MANUAL...
  • Page 13 UNDER-FLOOR INSTALLATION  There is to be a minimum clearance of 200mm between the lowest part of the floor structure and any part of the heater.  The heater is to be located within 2m of the access opening, or there is to be a minimum clearance of 1.2m between the lowest part of the floor structure.
  • Page 14: Flue Terminal

    - Feed the thermistor and bracket through the grommet in the side of the heater. - Insert the bracket into the hole in the BTO and screw into place. - Seal the hole. - Coil and secure any excess thermistor cable outside the heater. SEELEY INTERNATIONAL – INSTALLATION MANUAL...
  • Page 15 Repeat setting procedure for AWAY, HOME and SLEEP time periods  EXPLAIN SYSTEM OPERATION TO CUSTOMER   Explain the operation of the system to the customer/home owner  Hand the operating instructions and warranty card to the customer/home owner  THM5, THM6 series SEELEY INTERNATIONAL – INSTALLATION MANUAL...
  • Page 16: Troubleshooting And Diagnostics

    Please have your appliance model number, serial number, and any displayed fault codes open during run available prior to calling. Invalid dipswitch Flash Flash Flash Flash setting 1s on/1s off 1s on/1s off 1s on/1s off 1s on/1s off THM5, THM6 series SEELEY INTERNATIONAL – INSTALLATION MANUAL...
  • Page 17 077215 240 Vac zone kit 077208 Spectrolink comfort control thermostat (SCC) 077314 Note: Zone dampers are not supplied by Seeley International and are not included in above zone kits. MISCELLANEOUS KITS KIT DESCRIPTION KIT PART No Spectrolink comfort control (SCC)
  • Page 18 NOTES SEELEY INTERNATIONAL – INSTALLATION MANUAL...
