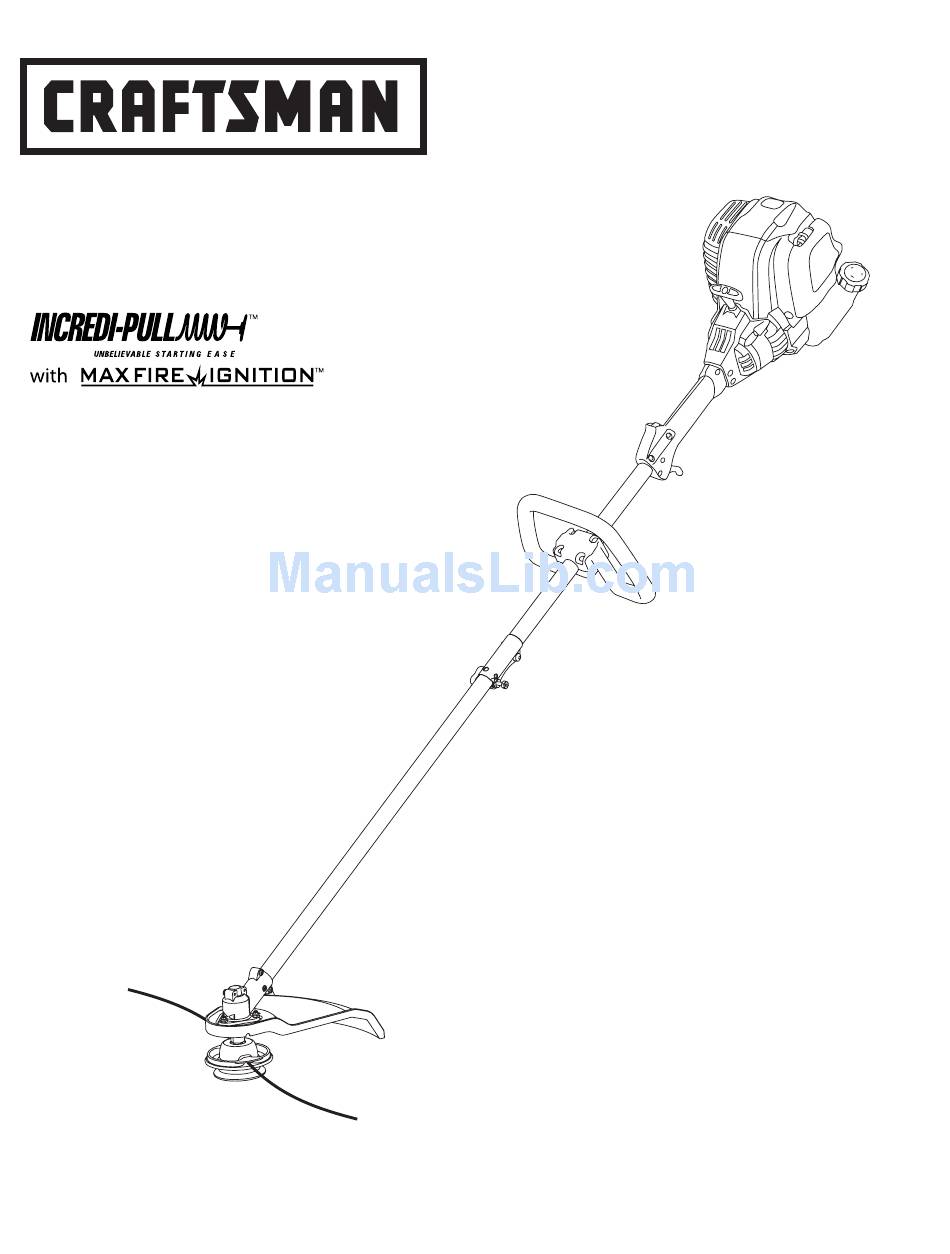

Operator's Manual
4-Cycle
WEEDWACKER
Model No. 316.796170
Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.
®
GAS TRIMMER
®
Visit our website: www.sears.com/craftsman
CAUTION: Before using
this product, read this
manual and follow all
safety rules and operating
instructions.
769-02806
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
• ESPAÑOL, P. 17

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 316.79617

Summary of Contents for Craftsman 316.79617

  • Page 1 Operator’s Manual 4-Cycle WEEDWACKER ® Model No. 316.796170 Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A. ® GAS TRIMMER Visit our website: www.sears.com/craftsman 769-02806 • SAFETY • ASSEMBLY • OPERATION • MAINTENANCE • PARTS LIST • ESPAÑOL, P. 17...

  • Page 2: Table Of Contents

    Secure hair above shoulder level. • The cutting attachment shield must always be in place while operating the unit as a trimmer. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the trimming line beyond the length of the shield.
  • Page 3 • Use only replacement parts or accessories recommended for this tool that are distributed by Sears or a Craftsman outlet. Use of any replacement parts or accessories purchased elsewhere may be hazardous, and will also void your warranty.

  • Page 4: Warranty Information

    If this Craftsman product fails due to a defect in material or workmanship within two years from the date of purchase, return it to any Sears store, Sears Service Center, or other Craftsman outlet in the United States for free repair. This warranty does not include: •...

  • Page 5: Assembly Instructions

    Twist & Edge and Craftsman Convertible™ Coupler Line Cutting Blade Shaft Housing Cutting Attachment HassleFree™ INSTALLING AND ADJUSTING THE D-HANDLE 1. Remove the screws and bottom clamp piece that were installed on the D-handle for shipping. 2. Place D-handle the over the shaft housing and onto the bottom clamp (Fig.

  • Page 6: Oil And Fuel Information

    WARNING: OVERFILLING OIL CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY. Check and maintain the proper oil level in the crank case; it is important and cannot be overemphasized. Check the oil before each use and change it as needed. See Changing the Oil. RECOMMENDED OIL TYPE Using the proper type and weight of oil in the crankcase is extremely important.

  • Page 7: Starting/Stopping Instructions

    WARNING: Operate this unit only in a well- ventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area. WARNING: Avoid accidental starting. Make sure you are in the starting position when pulling the starter rope (Fig. 8). To avoid serious injury, the operator and unit must be in a stable position while starting.

  • Page 8: Operating Instructions

    • Cutting from right to left improves the unit's cutting efficiency. Clippings are thrown away from the operator. • Slowly move the trimmer into and out of the cutting area at the desired height. Move either in a forward-backward or side-to-side motion.
  • Page 9 Craftsman Convertible™ Primary Hole Coupler Knob Fig. 16 CRAFTSMAN CONVERTIBLE™ Attachment FEATURE The coupler allows you to convert this unit for use with the following add-on attachments: • Cultivator • Blade Edger • Blower • Brush Cutter • Pruner CAUTION: These add-on attachments are to be snapped into the primary hole only.

  • Page 10: Maintenance And Repair Instructions

    WARNING: To prevent serious injury, never perform maintenance or repairs with unit running. Always service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start. MAINTENANCE SCHEDULE Perform these required maintenance procedures at the frequency stated in the table.
  • Page 11 NOTE: Use the bottle and spout saved from initial use to measure the correct amount of oil. The top of the label on the bottle measures approximately 3.04 ounces (90 ml) or 3/8 cup (Fig. 22). Check the level, See Checking the Oil Level.
  • Page 12 Adjust Idle Speed Screw WARNING: To prevent serious personal injury, make sure the cutting attachment has stopped rotating before you turn it off and set it down. If, after checking the fuel and cleaning the air filter, the engine still will not idle, adjust the idle speed screw as follows: 1.

  • Page 13: Cleaning And Storage

    • Secure the unit while transporting. • Drain the gas tank before transporting. • Tighten gas cap before transporting. Muffler Spark Arrestor Screen Diverter Slot Fig. 35 cylinder before attempting to start the trimmer after storage. T-25 Screw T-20 Screw...

  • Page 14: Troubleshooting Chart

    Throttle ... Manual Spring Return Fuel Tank Capacity ... 14 oz (414 ml) DRIVE SHAFT AND CUTTING ATTACHMENT* Drive Shaft Housing... Steel Tube (Craftsman Convertible™) Throttle Control... Finger-Tip Trigger Approximate Unit Weight (No fuel, with Hassle Free™, shield & D-handle)... 11.5-13.0 lbs (5.2-5.9 kg) Cutting Mechanism ...

  • Page 15: Repair Protection Agreement

    Repair Protection Agreements Congratulations on making a smart purchase. Your new Craftsman® product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time. That’s when having a Repair Protection Agreement can save you money and aggravation.
  • Page 16 NOTES...
  • Page 17 CALIFORNIA PROPOSITION 65 WARNING ADVERTENCIA LAS EMISIONES DEL MOTOR DE ESTE PRODUCTO CONTIENEN SUBSTANCIAS QUIMICAS QUE EL ESTADO DE CALIFORNIA CONOCE COMO CAUSANTES DECANCER, DEFECTOS DE NACIMIENTO U OTROS DAÑOS REPRODUCTIVOS. INDICE DE CONTENIDOS Normas para una operación segura ....17 Garantía .
  • Page 18 • Use la unidad únicamente con la luz del día o con buena luz artificial. • Evite arrancar la unidad accidentalmente. Colóquese en posición de inicio siempre que tire de la cuerda de arranque. El operador y la unidad deben estar en una posición estable al comenzar.
  • Page 19 GARANTÍA LIMITADA DE DOS AÑOS, DE CRAFTSMAN Si este producto Craftsman falla debido a un defecto en el material o en la mano de obra dentro de un período de dos años a partir de la fecha de compra, devuélvalo a cualquier tienda Sears, Centro de Servicio Sears u otro establecimiento de Craftsman en Estados Unidos para que sea reparado sin costo alguno.
  • Page 20 Craftsman Convertible™ acoplador Cuchilla de corte Bastidor de línea del eje Cuchilla de corte de Accesorio de corte - HassleFree™ INSTALACIÓN Y AJUSTE DE LA MANIJA EN D 1. Saque los tornillos, tuercas y la abrazadera inferior que se instalaron en la manija en D para su envío.
  • Page 21 INFORMACIÓN DEL ACEITE Y DEL COMBUSTIBLE ADVERTENCIA: EL LLENAR DEMA- SIADO EL CÁRTER PUEDE CAUSAR LESIONES PERSONALES GRAVES No podemos exagerar la importancia del control y mantenimiento del nivel correcto de aceite en el cigüeñal. Verifique el aceite antes de cada uso y cámbielo cuando sea necesario según se indica en la sección de Cambio del aceite.
  • Page 22 ADVERTENCIA: Use esta unidad sólo en un área exterior bien ventilada. Los gases de escape de monóxido de carbono pueden ser letales en un área cerrada. ADVERTENCIA: Evite los arranques accidentales. Colóquese en posición de inicio cuando tire de la cuerda de arranque (Fig.
  • Page 23 REEMPLAZO DE LA LÍNEA para la Cabeza de Corte Hassle-Free™ Use siempre la Línea Espiral Hassle-Free™ XTRA QUIET de Craftsman. Seleccione el tamaño de la línea que mejor se adapte al trabajo que se propone realizar. La línea de color rojo está diseñada para cortar hierba y pequeñas malezas.
  • Page 24 (Fig. 17). Agujero primario Acoplador de Craftsman Convertible™ Perilla Fig. 16 INSTRUCCIONES DE OPERACIÓN Con la caracteristica Craftsman Convertible™ El acoplador permite que usted convierta esta unidad para uso con los accesorios adicionales siguientes: • Cultivador •...
  • Page 25 INSTRUCCIONES DE MANTENIMIENTO Y REPARACIÓN PROGRAMA DE MANTENIMIENTO Estos procedimientos requeridos para el mantenimiento deben ser realizados con la frecuencia indicada en la tabla. Deben ser incluidos como parte de toda puesta a punto de cada temporada. NOTA: Algunos procedimientos de mantenimiento pueden requerir el uso de herramientas o habilidades especiales.
  • Page 26 INSTRUCCIONES DE MANTENIMIENTO Y REPARACIÓN 4. Seque todo el aceite residual de la unidad y limpie todo el aceite que pueda haberse derramado. Elimine todo el aceite de acuerdo con las normas federales, estatales y locales. 5. Vuelva a cargar el cárter del cigüeñal con 90 ml (3,04 onzas fluidas) de aceite SAE 30 SF, SG, SH.
  • Page 27 INSTRUCCIONES DE MANTENIMIENTO Y REPARACIÓN Inspección del Combustible En general, el combustible viejo es el motivo principal para que la unidad no funcione en forma adecuada. Drene y vuelva a llenar el tanque con combustible nuevo, limpio y sin plomo antes de hacer ningún ajuste.
  • Page 28 INSTRUCCIONES DE MANTENIMIENTO Y REPARACIÓN Tuerca de ajuste Balancín 0,076 mm – 0,152 mm (,003 pulg. – ,006 pulg.) Fig. 33 8. Si el huelgo no se encuentra dentro de las especificaciones: Gire la tuerca de ajuste con una llave de 8 mm (5/16 pulgadas) o una guía de tuercas (Fig.
  • Page 29 Regulador ... Retorno manual del resorte Capacidad del tanque de combustible ... 414 ml (14 onzas) EJE IMPULSOR Y ACCESORIO DE CORTE* Bastidor del eje impulsor ... Tube en acier (Craftsman Convertible™) Control del regulador ... Gatillo para el dedo Peso de la unidad (sin combustible, con Hassle Free™, el protector y el accesorio de corte) ...5,2 kg - 5,9 kg (11,5 libras - 13 libras)
  • Page 30 Repair Protection Agreements Congratulations on making a smart purchase. Your new Craftsman® product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time. That’s when having a Repair Protection Agreement can save you money and aggravation.
  • Page 31 PARTS LIST REPLACEMENT PARTS - MODEL 316.796170 4-CYCLE GAS TRIMMER...

  • Page 32: Parts List

    REPLACEMENT PARTS - MODEL 316.796170 4-CYCLE GAS TRIMMER Item Part No. Description 753-05206 Engine Cover Assembly (includes 2 & 3) 753-04595 Cover Screw 791-181003 Screw 753-05209 Rocker Cover 753-05210 Rocker Cover O-Ring 753-05228 Cylinder Assembly (includes 3, 5 & 9)
  • Page 33 Shield Mount Screw Assembly 753-05569 Gearbox Assembly 791-182195 Gearbox Screw 791-145569 Anti-Rotation Screw 791-682061 Blade Assembly 791-182189 Shield Assembly (includes 22) 753-05566 Cutting Head Assembly 753-05036 Cutting Head Cap Items Not Shown PARTS LIST REPLACEMENT PARTS - MODEL 316.796170 4-CYCLE GAS TRIMMER...
  • Page 34 NOTAS...
  • Page 35 NOTAS...
  • Page 36 Get it fixed, at your home or ours! For repair—in your home—of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner’s manuals that you need to do-it-yourself.
