Summary of Contents for Craftsman Incredi-Pull 316.791810

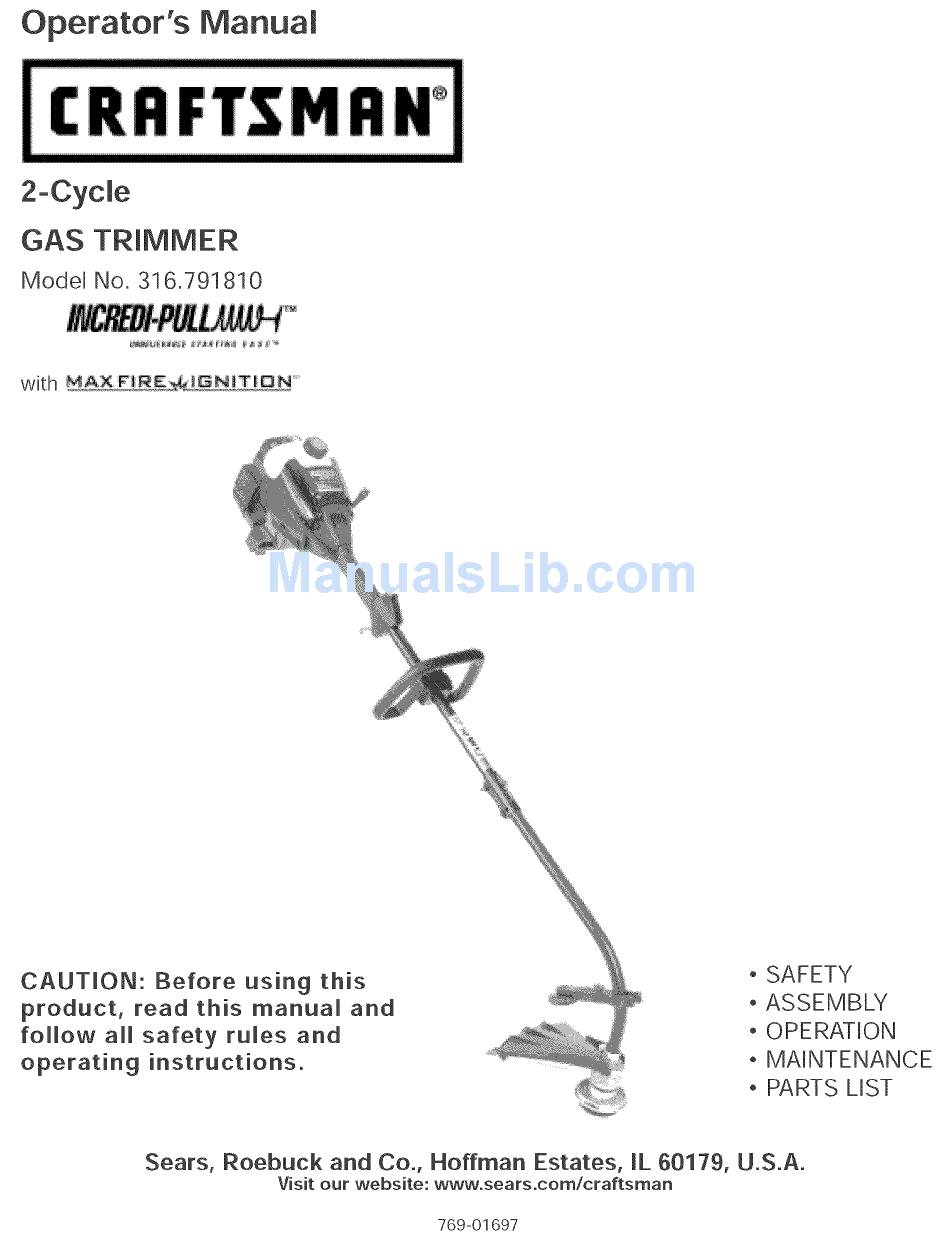

- Page 1 Operator's Manual 2oCycie GAS TRIMMER Modea No. 316.791810 with _ _G__! • SAFETY • ASSEMBLY • OPERATION o MAINTENANCE o PARTS LIST Sears, Roebuck and Co., Hoffman Estates, [L 60179, U.S.A, Visit our website: www°sears°com/craftsman 769-01697...
-
Page 2: California Proposition
Maintenance and Repair Pages 13 - 16 Troubleshooting Page YEAR LIMITED WARRANTY ON CRAFTSMAN GAS TRIMMER For two years from the date of purchase, when this Trimmer is used and maintained according to the operator's manual Sears will repair any defect in materiaU or workmanship free of charge. -
Page 3: Important Safety Instructions
Thepurpose of safetysymbols is toattractyour SYMBOL MEANING attention to possible dangers, Thesafety symbols, andtheirexplanations, deserve y ourcareful a ttention andunderstanding. Thesafetywarnings d o notby DANGER: Failure to obey a themselves e liminate a nydanger, T heinstructions o r safety warning will warnings t heygivearenot substitutes f or proper result in serious injury to yourself or to accident p revention m easures,... -
Page 4: Other Safety Warnings
• Never start or run the unit inside a dosed room or recommended for this tool that are sold by Sears or a Craftsman outlet. Use of any replacement parts or building. Breathing exhaust fumes can be fatal. accessories purchased elsewhere may be hazardous, Operate this unit only in a well-ventilated outdoor area. - Page 5 AND _NTERNAT_ONAL SAFETY SYMBOLS This operator's manuaH describes safety and internationaH symboHs and pictographs that may appear on this product. Read the operator's manuaH for compHete safety, assembHy, operating and maintenance and repair information, MEANLNG SYMBOL MEANING SYMBOL THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE Indicates danger, warning, or SEVERE INJURY...
-
Page 6: Product View
APPLICATIONS Cutting grass and Hightweeds • Edging Fue_ Cap • Decorative trimming around trees, fences, etc, Starter Rope Grip On/Off Stop Control Shaft Grip Throttle Controm DoHand[e Throttle Controt Twist and Edge Red EZ- Fire Lever Shaft Housing Cutting Attachment Shield Muffler Air FHter/Muffler... - Page 7 INSTALL AND ADJUST THE D-HANDLE Install the screws with a Phillips screwdriver (Fig. 4). (nsta(( 1. Place the D-handle down on to the shaft housing and the bottom clamp so that the handle slants towards the shaft grip (Fig. 1). Place handle and clamp a minimum of 6 inches from the end of the shaft grip.
-
Page 8: Oil And Fuel Info
It is recommended that you always use Craftsman 2-cycb with this unit. Gasoline is If Craftsman 2-cycb oil is unavailable, use a good 2- extremely flammable, Ignited vapors may explode, cycle oil designed for air-coobd engines along with a fuel additive, such as STA-BIL"... -
Page 9: Starting And Stopping
WARNING: Operate this unit onIy in a welI-ventiIated outdoor area. Start/On ( I) -- Carbon monoxide exhaust fumes can be lethal in a confined area. WARNING; Avoid acddental starting, Make sure you are in the starting position when pulling the starter rope (Fig. 8). To avoid serious injury, the operator and unit must be Throttle in a stable position while starting. -
Page 10: Holding Trimmer
Pull the line and make sure the line is against the hub for Hassle-Free III Cutting Head and is fully extended through the positioning tunnels Always use Craftsman Hassb-Free IIFM XTRA QUIET (Fig. 12). Spiral Line. Choose the line size best suited for the job at hand. Red... - Page 11 DECORATIVE TR_MM_NG NOTE: Do not rest the HassHe-Free Ill Cutting Head on the ground whiHe the unit is running. Decorative trimming is accomplished by removing all Some Hinebreakage will occur from: vegetation around trees, posts, fences and more. Rotate the whole unit so that the cutting attachment is at •...
- Page 12 Fig. 15 Start the unit following the instructions described in Starting/Stopping Instructions. HoHdthe shaft grip with your right hand and the D- handHewith your Heft(Fig. 16). Line up the cutting Hinewith the edge of the sidewalk. The edge guide wheeHwill run paraHeH to the cutting Hine and roll a coupHe inches from the end of the sidewaHk.
-
Page 13: Maintenance Schedule
MAINTENANCE SCHEDULE NOTE: Maintenance, repHacement, or repair of the emission controH devices and system may be Perform these required maintenance procedures at the performed by a Sears or other quaHified service frequency stated in the tame. These procedures shouHd deaHer, Call 1-800-4-MY-HOME@ for more also be a part of any seasonaHtune-up. - Page 14 AmR FmLTER MAmNTENANCE Removing the Air FiBter/Muffler Cover JNG" To a void serious • personaH injury, aHways turn your unit off and aHHow it to cooH before you dean or service it. Remove the four (4) screws securing the air Air Filter fiHter/muffler cover (Fig.
-
Page 15: Adjusting Idle Speed Screw
SPARK ARRESTOR MAINTENANCE Replace the two screws you removed in Step 2 and tighten them securely. NOTE: Mease Hetengine cooLThe exhaust can onUy flow Reinstall the air filter/muffler cover (Fig. 18). in one direction: AWAY from the engine. Pay chose attention when disassemMing the muffler WARNING: ifthe exhaust... -
Page 16: Replacing Spark Plug
TRANSPORTING Release the throttle trigger and Netthe engine idle. If the engine stops, insert a small phillips or flat blade Allow the engine to cool before transporting. screwdriver into the hone in the air filter/muffler cover • Drain fuel from unit. (Fig. - Page 17 CAUSE ACTION 1. Empty fueHtank I.Fill fuel tankwithproperly mixed fuel 2. Primer buHbwasn't pressed enough 2. Press primer bulb fully and slowly 10 times 3. Engine is flooded 3. Squeeze the trigger and pull the starter rope 4. OHdor improperly mixed fueH 4.
- Page 18 EngineType ....................Air-Cooled, 2 -Cycle Displacement ............................31.5 cc (1.95 cu in.) Idle Speed RPM ............................. 2,800 - 3,600 rpm Operating RPM ..............................7,200+ rpm Ignition Type ........................Electronic-MAX FBREIGNITION Ignition Switch .............................. Rocker Switch Spark Hug Gap ............................0.020 in. (0.5 mm) Lubrication ..............................
-
Page 19: Parts List
ENGINE PARTS - MODEL 791810 2-CYCLE GAS TRIMMER item Part item Part Description Description 753-05049 753-04810 Air Cleaner Assembly includes 2 & 37) Starter Housing Assembly 791-180350B Air Cleaner Filter (includes 23-30, 32 & 37) 791-180351 791-181862 Housing Screw Carburetor Mounting Screw Assembly 791-182396 Clutch Washer... - Page 20 BOOM & TRIMMER PARTS - MODEL 791810 2-CYCLE GAS TRIMMER Item Part No. Description 753-04234 Throttle Housing Assembly (includes 2-4) 753-04119 Throttle Trigger 791-182690 Throttle Trigger Spring 791-182405 Switch Assembly 753-04405 Throttle Cable Assembly 791-610327 Harness Clip 753-05022 Upper Drive Shaft Housing 791-180869 Deluxe D-Handle Assembly (includes 9-11) 791-181070...
- Page 22 California / EPA Emission Control Warranty Statement Your Warranty Rights and Obligations The California Air Resources Board, The Environmental Protection Agency and Sears are pleased to explain the emission control system warranty on your 2000 and later small off-road engine. New small off-road engines must be designed, built and equipped to meet stringent anti-smog standards.
- Page 23 Repair Protection Agreements Congratulations on making a smart purchase. Your new Craftsman _ product is designed and manufactured for years of dependable opera- tion. But like all products, it may require repair from time to time. That's when having a Repair Protection Agreement can save you money and aggravation.
- Page 24 ® Registered Trademark Trademark Service Mark of Sears, Roebuck and Co. ® Marca Registrada Marca de Fabrica / Marca de Servicio de Sears, Roebuck and Co. MCMarque de commerce / ® Sears, Roebuck and Co. Marque d@osee de Sears, Roebuck and Co.
