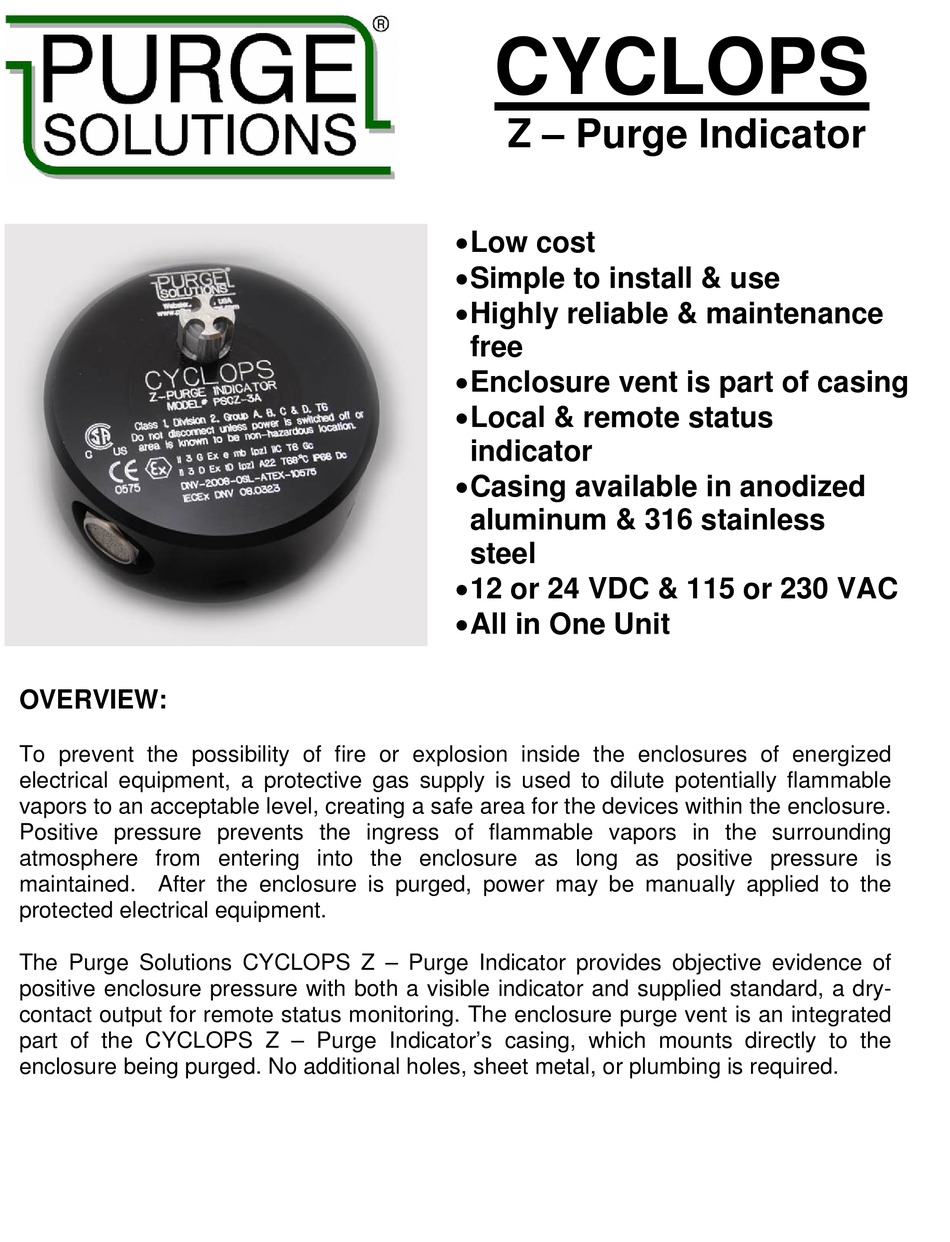

PURGE SOLUTIONS CYCLOPS Z Quick Start Manual

OVERVIEW:

To prevent the possibility of fire or explosion inside the enclosures of energized
electrical equipment, a protective gas supply is used to dilute potentially flammable
vapors to an acceptable level, creating a safe area for the devices within the enclosure.
Positive pressure prevents the ingress of flammable vapors in the surrounding
atmosphere from entering into the enclosure as long as positive pressure is
maintained. After the enclosure is purged, power may be manually applied to the
protected electrical equipment.

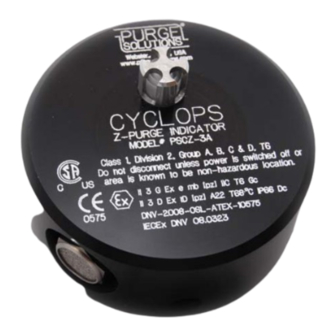

The Purge Solutions CYCLOPS Z – Purge Indicator provides objective evidence of
positive enclosure pressure with both a visible indicator and supplied standard, a dry-
contact output for remote status monitoring. The enclosure purge vent is an integrated
part of the CYCLOPS Z – Purge Indicator's casing, which mounts directly to the
enclosure being purged. No additional holes, sheet metal, or plumbing is required.
CYCLOPS
Z – Purge Indicator
 Low cost
 Simple to install & use
 Highly reliable & maintenance
free
 Enclosure vent is part of casing
 Local & remote status
indicator
 Casing available in anodized
aluminum & 316 stainless
steel
 12 or 24 VDC & 115 or 230 VAC
 All in One Unit
