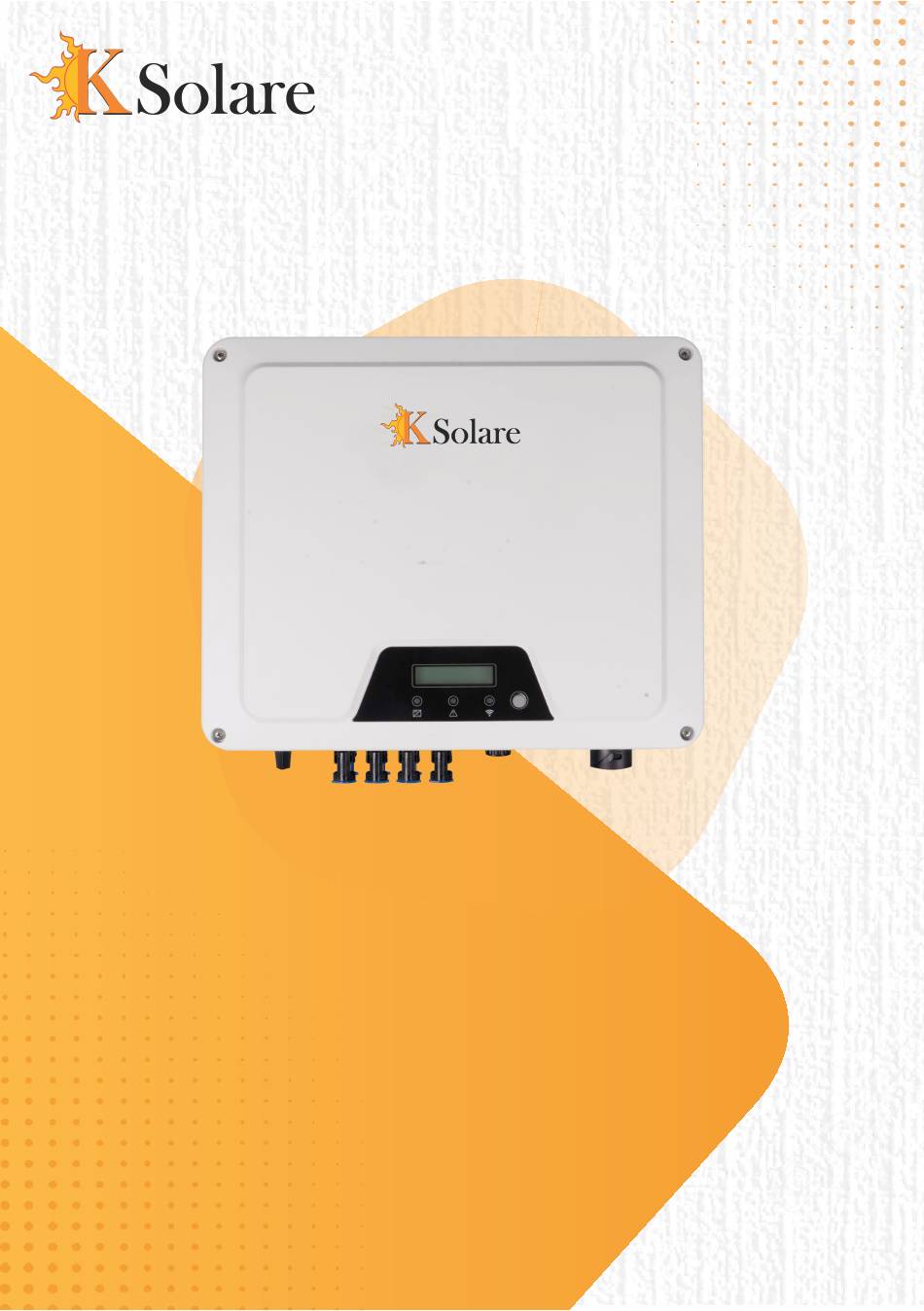

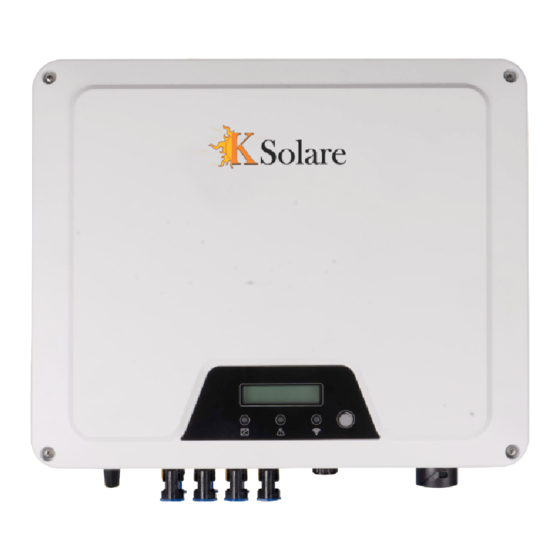

- Page 1 User Manual 5G PRO INVERTER KSY:- 15KW- 25KW - 3Ph Three-Phase Grid-tied Solar Inverter...
-
Page 2: Table Of Contents
CATALOGUE SYMBOLS ON THE LABEL ....................... 3 SAFETY AND WARNINGS ...................... 3 UNPACKING ..........................4 3.1 Scope of Delivery ............................. 4 3.2 Product Overview ......................5 INSTALLING ..........................6 4.1 Installation Requirement ....................6 4.2 Mounting Location ......................7 4.3 Mounting ........................8 4.4 Installing the PE cable .................... -
Page 3: Symbols On The Label
2. SAFETY AND WARNINGS All persons who are responsible for mounting, installation, commissioning, maintenance, tests, and service of KSOLARE inverter products must be suitably trained and quali ed for corresponding operations. They MUST be experienced and have knowledge of operation safety and professional methods. All installation personnel must have knowledge of all applicable safety information, standards, directives, and regulations. -
Page 4: Unpacking
be compatible with this product. Power resources other than compatible PV arrays MUST not be connected and operate with the product. When designing or constructing a PV system, all components MUST remain in their permitted operating ranges, and their installation requirements MUST always be ful lled. - Page 5 The detail description is shown below: Mark Num . Component Description LED&L CD or LED Display and setting device at eld DC Switch For switch on/o the inverter PV Terminal (s) Connected with PV Panel COM1: Wi- Fi/GPRS /RS485 Alternative distant communication method COM2: METER /DRED For smart - meter or DRED Secondary PE Terminal...
-
Page 6: Installing
4. INSTALLING 4.1 Installation Requirement Please install the inverter(s) in places that can avoid inadvertent contact. Installation method, location and surface must be tting for the inverter’s weight and dimensions. Please install the inverter in an accessible location for operation, future maintenance and service. -
Page 7: Mounting Location
4.2 Mounting Location DO NOT mount the inverter near any in ammable materials . DO NOT mount the inverter near any explosive materials . DO NOT mount the inverter on tilting surface over 15° backwards . Please mount the inverter on a vertical wall surface. DO NOT mount the inverter on any surfaces tilting forward or to either sides. -
Page 8: Mounting
4.3 Mounting Use the mounting bracket as a template and drill holes of 10mm diameter and 70mm depth. Fix the mounting bracket with the screws and expansion bolts packed in mounting accessories. Hold up the inverter and tilt it slightly forward. Hang up the inverter and attach it to the mounting bracket. -
Page 9: Commissioning
Information on grounding components: Object Description Housing M5 terminal lug with protective conductor M6×12 pan head screw PE Conductor cross - section: 16 mm² 5. COMMISSIONING 5.1 Safety Instructions Measure the frequency and voltage of grid connection and make sure they follow the inverter’s grid connection speci cations. -
Page 10: Ac Wire Assembly And Connection
5.2 AC Wire Assembly and Connection 5.2.1 AC Commissioning 5.2.2 AC Switch Types Please install an individual 2 - stage miniature circuit breaker according to the following speci cations. Maximum output current （A） AC Breaker Rated current （A） Model KSY - 15KW KSY - 18KW 27.6 KSY - 20KW... -
Page 11: Dc Wire Assembly And Connection
5.3 DC Wire Assembly and Connection PV modules of the connected strings must be of: the same time, identical alignment and tilting angle. Before commissioning and connecting the PV arrays, the DC switch MUST be open. Parallel strings must have the same number of modules. It is mandatory to use the DC connectors within package for the connection of PV arrays. -
Page 12: Communication
Datalogger in and tighten. For user guidance and con guration of Datalogger, please refer to the corresponding KSOLARE Wi- Fi Stick Guide manual, which is available in printed form inside Documents pack, or an online manual on KSOLARE www.ksolare.com website at 6.1.2 RS485/Smart Meter/DRED Connection... -
Page 13: Start Up And Operation
7. START UP AND OPERATION 7.1 Safety Check Before Start Up Please check before switching on any v oltage resources connected to the inverter and closing inverter’s DC switch: 1. Grid Voltage: Check the grid voltage at point of connection at the inverter complies with permitted range of the inverter. -
Page 14: Inverter Led Indicators
7.2 Inverter LED Indicators When the inverter operates, LED symbols on display have the following meanings:... -
Page 15: Disconnecting From Voltage Resources
8. DISCONNECTING FROM VOLTAGE RESOURCES Before proceeding any operations on inverter, please disconnect the inverter from all voltage resources as described in this manual. Following these steps in described sequence are mandatory. Disconnect miniature circuit - breaker and prevent from unintentional reconnections. Open the DC switch and prevent the switch from closing unintentionally. - Page 16 Fault Finding Classifications of Fault Information Fault Fault Type Error Message Location F5 - PV voltage too high F6 - Surface insulation resistance Failures caused by PV side wiring error F7 - GFCI exceeds the permissible DC Side Fault range F0 - 10min average voltage over the protection range F9 - No gird...
-
Page 17: Trouble Shooting
Faults & Troubleshooting Grid (AC) Side faults Fault code Fault Solution No Grid 1. Check Ac ( grid ) Voltage In connector Fault 9 2. Phase to Neutral voltages 200V – 250V 3. Phase to Phase Voltage 400V – 450V The grid voltage is out 1. - Page 18 11. SYSTEM MAINTENANCE Content Maintenance Measures Cycle System • Check if the heat sink is covered and dusted Annually OR Half a year Cleaning • Inspect the enclosure for damage/deformation System Status Half a year • Check if the parameters are normal during operation •...
-
Page 19: Restarts
12. RESTART S When reconnecting the inverter for electrical power supply, please follow the commissioning procedures and safety instructions as described in Section 6 when applicable (e.g. DC Wires need to be reassembled). Please run safety checks as described in Section 7 before closing the DC Switch and starting up again. - Page 20 Poonam petrol pump, KSolare Technology Park, Sr.No. 62, Hissa No.03, Mangdewadi, Pune, Maharashtra 411046 Enquiry Email: Sales@ksolare.com service@ksolare.com Service Email: Contact: 8530111222 Follow Us On...
