Veris Industries E30 Series Installation Manual

Installation Guide
Power Monitoring
Other current sensor
strip sizes available.
*
*The CE mark indicates RoHS2 compliance. Please refer to the CE Declaration of
Conformity for additional details.
Z204998-0P Page 1 of 49
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
1.800.561.8187
Product Overview
The E30 Series Branch Circuit Power Meter is a device designed to measure the current, and on some models, the
voltage and energy consumption of up to 92 circuits (84 branch circuits, 2 3-phase mains, 2 neutrals) on a single
board.

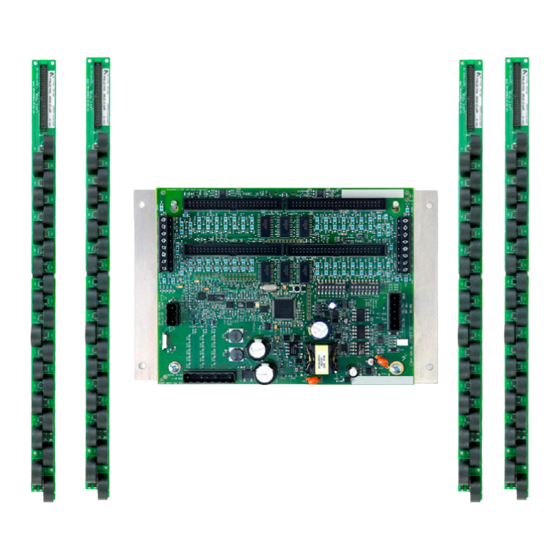

The E30 consists of a data acquisition board and up to four 21-unit current sensor strips, with eight auxiliary inputs.
The strips are mounted on each side of the panel board along the termination points of each breaker. The conductor
passes through the appropriate current sensor before terminating at the breaker. Each strip transmits the current
data to the data acquisition board. The E30 can easily accommodate different panel configurations, including any
combination of multi-phase breaker positions, voltage phase mapping, and breaker sizes. To configure the E30 for
operation, download the NetConfig configuration software tool and the E3x Commissioning Guide
Data is transmitted using an RS-485 Modbus protocol. Each data acquisition board requires two addresses, one for
each set of two current sensor strips and four auxiliary inputs. Data is updated roughly every two seconds. As a
circuit approaches the user-defined threshold, the E30 activates the alarm indicators.
The E30A measures both current and power for the mains and branch circuits. The E30B measures both current and
power for the mains, and current only in each circuit. The E30C measures current only for the mains and branch
circuits.
Product Identification
Description
E30
A = Advanced
B = Intermediate
C = Basic
©2015 Veris Industries
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
www.
E30 Series
Branch Circuit Power Meter
CT Option
0 = 100A, ¾" spacing
1 = 100A, 1" spacing
2 = 100A, 18 mm spacing
information@itm.com
.com
TM
# of CTs
24 = 2 strips with 12 sensors each *
36 = 2 strips with 18 sensors each *
42 = 2 strips with 21 sensors each
48 = 4 strips with 12 sensors each *
72 = 4 strips with 18 sensors each *
84 = 4 strips with 21 sensors each
* This option available with 18 mm spacing only.
0815
