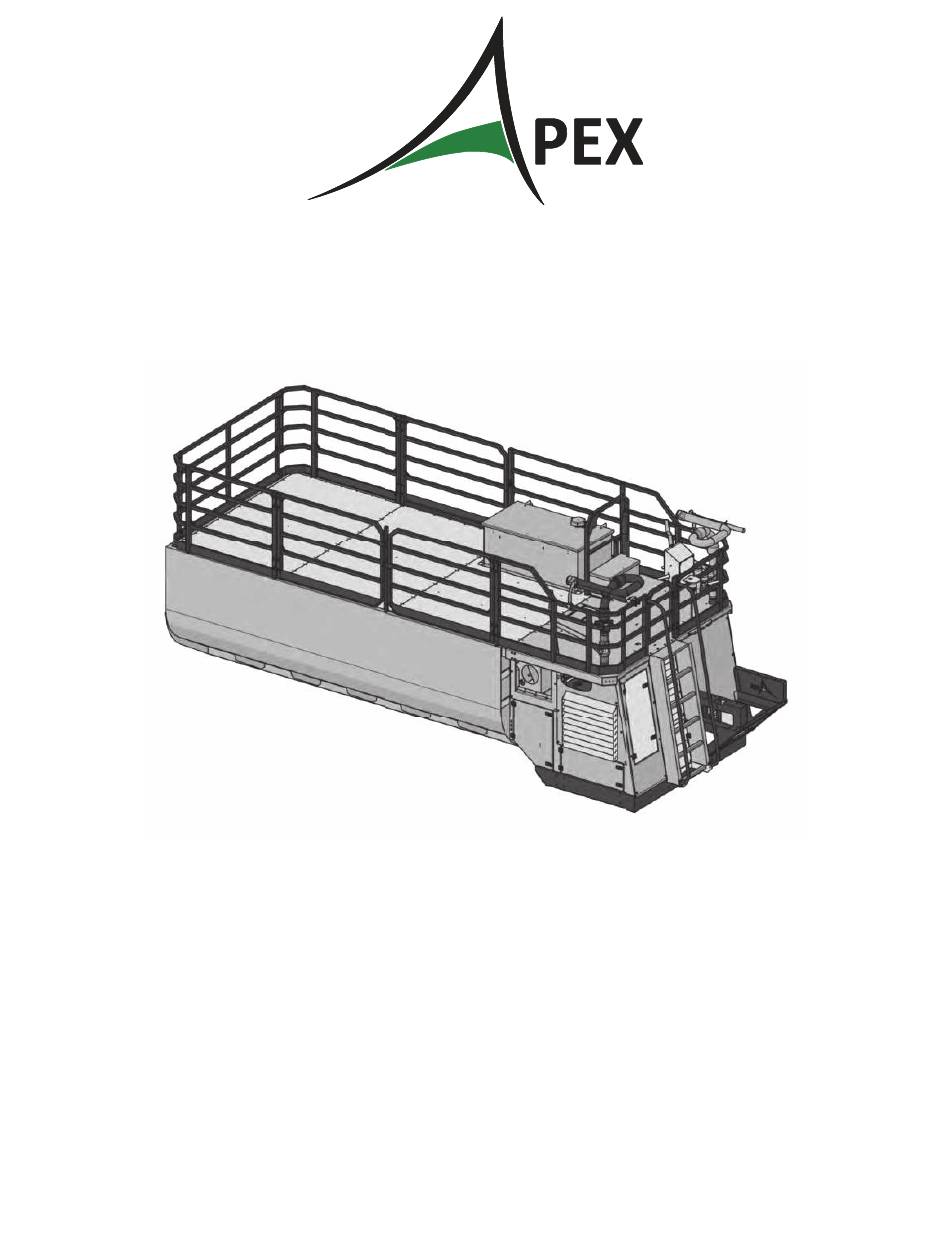

9281 LeSaint Drive • Fairfield, Ohio 45014
Phone (513) 874-2818 • Fax (513) 874-2914
XA3300 / XA4000 / XA5000
Applicator
Operator Instructions and Parts Manual
Model _____________
Serial No. _____________
XA Series OO1101
