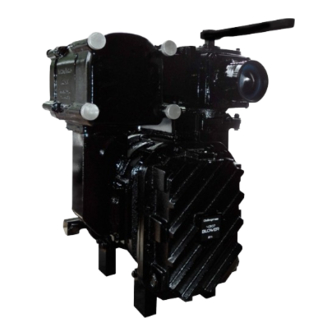

- Page 1 National Vacuum Equipment Owner’s Manual & Operating Instructions Models 4307 & 4310 Blower Visit our web site to download pump setup guides, MADE IN USA brochures and other technical information.
- Page 2 Purchased from: __________________________ Serial Number: ____________________________ © 2011 National Vacuum Equipment, Inc. October 2012 rev. No part of this manual may be reproduced without the written permission of National Vacuum Equipment, Inc. www.natvac.com | 800.253.5500 2 | 4307 & 4310 Blower...
-
Page 3: Table Of Contents
Preservation ......................13 Installation .........................14 Rotation and Airflow ....................14 Diesel Engine Precautions ..................14 Direct Coupling ......................15 Recommended Equipment ................15 Installation and Alignment ................15 Belt Drive .......................16 Drive Shaft ......................17 Hydraulic Drive .....................17 www.natvac.com | 800.253.5500 4307 & 4310 Blower | 3... - Page 4 Cleanout Procedure If Flooded ................25 4307 Parts Diagram ....................26 4310 Parts Diagram ....................27 4307 & 4310 Parts List ..................28 4307 4-Way Manifold Parts Diagram & Parts List ..........30 4310 4-Way Manifold Parts Diagram & Parts List ..........32 Troubleshooting ......................34 www.natvac.com | 800.253.5500...
-
Page 5: Introduction
Company began fabricating its own line of com- ponents, purchased and developed its own line of vacuum pumps, and began purchasing for resale various valves and accessories. Today, NVE has full service machine and fabrication shops complete with CNC-controlled production equip- ment designed for close tolerance work. -
Page 6: Limited Warranty
National Vacuum Equipment, Inc. Certain products provided by National Vacuum Equipment, Inc. are covered by their respective manufacturer’s warranties (e.g., engines used in the NVE engine drive packages). These products are not covered by the National Vacuum Equipment, Inc. Manufacturer’s Warranty. -
Page 7: Warranty Procedures
Customer must receive a return goods authorization (RGA) before returning product. All serial-numbered products must retain the NVE serial number tag to be qualified for warranty. Product must be returned to NVE intact for inspection before warranty will be honored. -
Page 8: Overview
Overview BALLAST INJECTION General Blower Operation The NVE BLOWERS are severe duty vacuum INTAKE EXHAUST pumps, designed to be used in liquid waste pumping systems where extended operation is desired. The pump incorporates a ballast air cooling system to provide superior cooling, allowing for extended operation. -
Page 9: Location Of Serial Number
Specifications Sereial Number Operating Environment The 4307 and 4310 blowers are designed to move atmospheric air. Do not use to move explosive or corrosive gasses or operate the blower in an area with explosive gases. -
Page 10: Performance (Reference Only)
39.7 4000 ACFM B.O. 22.3 34.1 40.0 46.0 51.9 57.8 44.7 4500 ACFM ACFM - Actual CFM generated on the vacuum or pressure side of the machine B.O. - Blanked Off www.natvac.com | 800.253.5500 10 | 4307 & 4310 Blower... -
Page 11: Dimensions
It is recommended the operator monitor the blower while running and listen for resonances (increased levels of noise) that may occur at certain RPM’s and operate the blower at speeds above or below the resonance speeds to reduce excess noise. www.natvac.com | 800.253.5500 4307 & 4310 Blower | 11... -
Page 12: Limitations On Use
Operating in excess of the Seizure of Blower, damage to Reduce the vacuum or pres- specified temperature rise blower and ejection of parts sure level to bring within across the blower limits. www.natvac.com | 800.253.5500 12 | 4307 & 4310 Blower... -
Page 13: Storage
While in storage, rotate the shaft three to four revolutions every two weeks to keep gears coated in oil. Before installing a blower that has been stored for any length of time, remove www.natvac.com | 800.253.5500 4307 & 4310 Blower | 13... -
Page 14: Installation
For more information Diesel torsional vibrations, see the technical report by Love- Joy titled New Twists to Diesel Vibration at www.lovejoy-inc.com 1/2-13 UNC - 2B .750 (9.805) (12.625) (17.701) (7.326) www.natvac.com | 800.253.5500 14 | 4307 & 4310 Blower... -
Page 15: Direct Coupling
“Angular” in the table. If a correction is necessary, be sure to recheck the parallel alignment. Please see www.tbwoods.com for more details. www.natvac.com | 800.253.5500 4307 & 4310 Blower | 15... -
Page 16: Belt Drive
Couplers must be guarded to prevent entanglement. Belt Drive All NVE blower input shafts are equipped with an outboard roller bearing which allows the use of V-belt. We do not recommend the use of cogged, synchronous or timing belts. -
Page 17: Drive Shaft
Improper use of “Hot Shift” (i.e. clutch type, constant mesh) PTO’s can result in severe damage to the blower driveline and blower. Take extra precautions to operate PTO’s within the manufacturer’s recommendations www.natvac.com | 800.253.5500 4307 & 4310 Blower | 17... -
Page 18: Plumbing And Piping
Inlet Filter The intake filters are designed to ensure maximum airflow efficiency why keeping out unwanted debris. The filters supplied by NVE use a stainless steel screen and can be cleaned. www.natvac.com | 800.253.5500... -
Page 19: Four Way Valve And Hoses
If the blower is intended to be used in pressure mode then a pressure relief valve is required. NVE recommends the use of Kunkle pressure relief valves as they have been proven to work well and have sufficient flow capacity. The valves we supply are factory set to 10 PSI and are sealed. -
Page 20: Secondary Shutoff/Moisture Trap
Secondary Shutoff/Moisture Trap The secondary shutoff or Moisture Trap should also be appropriately sized for the air flow application. Contact NVE for assistance with selecting the shutoff. Bag House Bag houses are typically used in systems where dry material is being pumped. Spec- ification of a proper bag house depends on the frequency and type of dry material being pumped. -
Page 21: Operating
Before starting blower, verify the shaft rotates freely by hand. Water can con- dense and freeze in the blower cylinder without warning causing a stall condition at start up. www.natvac.com | 800.253.5500 4307 & 4310 Blower | 21... -
Page 22: Maintenance
FREQUENCY CHECK PARAMETER COMMENTS Pressure Temperature Blower VISUAL Load-Absorbed Running Power Noise Oil Level Oil Leakage Blower Viscosity LUBRICATION Shutdown Oil Change-Initial Oil Change-Normal 1000 Vacuum <1 in Hg FILTER Clogging www.natvac.com | 800.253.5500 22 | 4307 & 4310 Blower... -
Page 23: Oil Capacities And Recommendations
Drive S ide Non-‐Drive S ide Total Oz ( Liters) Oz ( Liters) 4307 18 ( .53) 8 ( .24) 26 ( .77) 4310 www.natvac.com | 800.253.5500 4307 & 4310 Blower | 23... - Page 24 500 S eries Summit Summit S yngear S H-‐7220 600 S eries 80-‐90 Mobil Monilube S HC 7 5W-‐90 Dispose of used oil according to local regulations www.natvac.com | 800.253.5500 24 | 4307 & 4310 Blower...
-
Page 25: Rebuilding
Rebuilding Rebuilding is beyond the scope of this owner’s manual and should be performed only by trained technicians. Consult an authorized distributor or NVE to arrange rebuilding of the blower. Cleanout Procedure if Flooded Remove the inlet filter, exhaust silencer and ballast silencer. -
Page 26: 4307 Parts Diagram
| 800.253.5500 26 | 4307 & 4310 Blower... -
Page 27: 4310 Parts Diagram
| 800.253.5500 4307 & 4310 Blower | 27... -
Page 28: 4307 & 4310 Parts List
SEAL, 50 X 72 X 10 AS FMK 150-639-747 GASKET, END COVER 150-628-747 OIL COVER, NON-DRIVE 747/4310 802-650-003A BALLAST T, CAST 426-400-TAR HOSE, 4", TAR & ASPHALT-4 IN LG 426-4625-TBC CLAMP T-BOLT, 4.625” 426-3875-TBC CLAMP T-BOLT, 3.875” www.natvac.com | 800.253.5500 28 | 4307 & 4310 Blower... - Page 29 SHCS - M8 X 12MM SHCS - M8 X 12MM HHCS - 5/16-18 UNC X 3.25 HHCS - 5/16-18 UNC X 3.25 HHCS - 5/16-18 UNC - 3 HHCS - 5/16-18 UNC - 3 www.natvac.com | 800.253.5500 4307 & 4310 Blower | 29...
-
Page 30: 4307 4-Way Manifold Parts Diagram & Parts List
10/16/12 DRAWING RELEASED FOR PROTOTYPE PARTS LIST DESCRIPTION ELBOW MANIFOLD 4307 MACH GASKET, 4" INT/EXH FLANGE CHECK VALVE FLANGE MANIFOLD 4307 MACH CHECK VALVE HOUSING 4307 O-RING, 2-240 VITON 148-4307-002 CHECK VALVE FLAPPER, 4 IN SS SCALE 0.25 : 1 GASKET, 4"... - Page 31 HEX HEAD CAP SCREW - 5/16-18 UNC X 3.75 PLUG - 1/4 NPT SH SOCKET HEAD PLUG - 1/4 NPT PLUG - 1/2 NPT SH SOCKET HEAD PLUG - 1/2 NPT www.natvac.com | 800.253.5500 4307 & 4310 Blower | 31...
-
Page 32: 4310 4-Way Manifold Parts Diagram & Parts List
HOUSING, FILTER MACHINED 4310 150-310-002 COVER, FILTER 4310 150-063-002 ELBOW, ADJ 6" TO 4" MACH 150-041-007 CHECK VALVE FLAPPER, 4” SS 150-099-007 WASHER, #10 FLAT HD 150-314-002 FILTER, STAINLESS 4310 150-063-003 ELBOW, INTAKE 4310 www.natvac.com | 800.253.5500 32 | 4307 & 4310 Blower... - Page 33 LOCK WASHER, 3/8" LW - 1/2 LOCK WASHER, 1/2 PLUG - 1/4 NPT SH SOCKET HEAD PLUG - 1/4 NPT PLUG - 1/2 NPT SH SOCKET HEAD PLUG - 1/2 NPT www.natvac.com | 800.253.5500 4307 & 4310 Blower | 33...
-
Page 34: Troubleshooting
D, E, F, H, K, U & V Blower is creating unusual noises or vibrations A, B, C, D, F, G,H, K, L, N, W & AC STOP THE BLOWER TO PREVENT DAMAGE www.natvac.com | 800.253.5500 34 | 4307 & 4310 Blower... - Page 35 Four way valve not fully seated in Seat the 4-way valve. Clean if debris built up has proper position occurred. Faulty relief valve Replace relief valve Rotors timing is off Have blower rebuilt www.natvac.com | 800.253.5500 4307 & 4310 Blower | 35...
- Page 36 National Vacuum Equipment, Inc. P.O. Box 685 Traverse City, MI 49685 USA 231.941.0215 Phone 231.941.2354 Fax...
