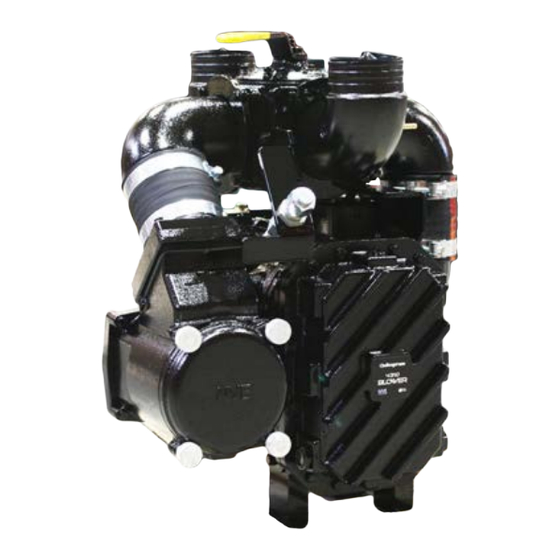

- Page 1 National Vacuum Equipment Owner’s Manual & Operating Instructions Models 4307 & 4310 Blower Visit our web site to download pump setup guides, MADE IN THE USA brochures and other technical information. www.nvesalesrep.com 888.814.9191...
- Page 2 Purchased from: __________________________ Serial Number: ____________________________ © 2016 National Vacuum Equipment, Inc. Revision: 6 (Released) June, 2016 No part of this manual may be reproduced without the written permission of National Vacuum Equipment, Inc. 2 | 4307 & 4310 Blower...
-
Page 3: Table Of Contents
Installation Rotation and Airflow ....................14 Diesel Engine Precautions ..................14 Direct Coupler Installation & Alignment .............15 Belt Drive .......................15 Drive Shaft ......................16 Hydraulic Drive ......................16 PTO Drive .......................16 Plumbing and Piping .....................16 4307 & 4310 Blower | 3 nvesalesrep.com | 888.814.9191... - Page 4 4307 Blower Maintenance ...................24 4307 Parts Diagram ....................26 4310 Parts Diagram ....................27 4307 & 4310 Parts List ..................28 4307 4-Way Intake Manifold Parts Diagram & Parts List ........30 4310 4-Way Intake Manifold Parts Diagram & Parts List ........34 Troubleshooting ......................36 nvesalesrep.com | 888.814.9191...
-
Page 5: About National Vacuum Equipment, Inc
Today, NVE has full service machine, fabrication and powder-coating shops complete with CNC-controlled production equipment designed for close tolerance work. The company has a highly trained staff, all of whom are dedicated to quality. -
Page 6: Limited Warranty
National Vacuum Equipment, Inc. Certain products provided by National Vacuum Equipment, Inc. are covered by their respective manufacturer’s warranties (e.g., engines used in the NVE engine drive packages). These products are not covered by the National Vacuum Equipment, Inc. Manufacturer’s Warranty. -
Page 7: Warranty Procedures
Customer must receive a return goods authorization (RGA) before returning product. All serial-numbered products must retain the NVE serial number tag to be qualified for warranty. Product must be returned to NVE intact for inspection before warranty will be honored. -
Page 8: Overview
Overview BALLAST INJECTION General Blower Operation The NVE BLOWERS are severe duty vacuum INTAKE EXHAUST pumps, designed to be used in liquid waste pumping systems where extended operation is desired. The pump incorporates a ballast air cooling system to provide superior cooling, allowing for extended operation. -
Page 9: Location Of Serial Number
Specifications Sereial Number Operating Environment The 4307 and 4310 blowers are designed to move atmospheric air. Do not use to move explosive or corrosive gasses or operate the blower in an area with explosive gases. -
Page 10: Performance (Reference Only)
4000 When installing a NVE 4307 blower we recommend a normal R.P.M. range from 2700 to 4000. Other speeds are o.k. as long as exhaust gas temperatures read on the supplied thermometer do not exceed 290 degrees F over ambient temperature. -
Page 11: Dimensions
The noise level of the blower may increase with higher levels of vacuum and RPM. To minimize noise, operate the blower at the minimum speed and vacuum level required to achieve the desired performance results. nvesalesrep.com | 888.814.9191 4307 & 4310 Blower | 11... -
Page 12: Limitations On Use
Operating in excess of the Seizure of Blower, damage to Reduce the vacuum or pres- specified temperature rise blower and ejection of parts sure level to bring within across the blower limits. 12 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191... -
Page 13: Storage
In the event damage has occurred, first file a claim with the carrier and then contact NVE for assistance. Keep all intake, exhaust and ballast ports covered to prevent accidental ingestion of materials into the blower. -
Page 14: Installation
(6.700) (9.875) 1/2-13 UNC - 2B .750 Direct Coupler Installation and Alignment (9.805) (12.625) (17.701) (7.326) Slide the couplers onto the blower shaft and prime mover shaft using appropriate tools. 14 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191... -
Page 15: Belt Drive
Couplers must be guarded to prevent entanglement. Belt Drive All NVE blower input shafts are equipped with an outboard roller bearing which allows the use of V-belt. The driving pulley from the prime mover must be mounted on the intake side of the blower to prevent unloading of the blower bearings. -
Page 16: Drive Shaft
Failure to do so may result in rotor contact with housing. Use only clean piping insuring it is free of dirt, scale, cuttings, weld spat- ter, and foreign materials of any kind. nvesalesrep.com | 888.814.9191 16 | 4307 & 4310 Blower... -
Page 17: Recommended Accessories
Inlet Filter The intake filters are designed to ensure maximum airflow efficiency why keeping out unwanted debris. The filters supplied by NVE use a stainless steel screen and can be cleaned. Four Way Valve and Hoses If it is intended to operate the blower in the pressure mode, a four way valve will be required. -
Page 18: Pressure Relief Valve
If the blower is intended to be used in pressure mode then a pressure relief valve is required. NVE recommends the use of Kunkle pressure relief valves as they have been proven to work well and have sufficient flow capacity. -
Page 19: Check Valves
A primary shutoff is to be used with the blower as a first line of defense to prevent liquid from entering the blower. It is critical that an appropriately sized primary shut off is used. Contact NVE for assistance with selecting the shutoff. Secondary Shutoff/Moisture Trap The secondary shutoff or moisture trap should also be appropriately sized for the air flow application. -
Page 20: Starting The Blower
Start the blower and check the appropriate parameters as listed in the mainte- nance schedule under the Maintenance section. Stopping the Blower When stopping the blower, if possible, remove all vacuum and pressure from the blower. 20 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191... -
Page 21: Cold Weather Operation
Use the recommended oil for the operating temperatures. If temperatures are so cold that the blower cannot warm up, enclose the blower allowing for sufficient clearance from parts to prevent contact with hot or moving components. nvesalesrep.com | 888.814.9191 4307 & 4310 Blower | 21... -
Page 22: Maintenance
1000 Vacuum <1 in Hg FILTER Clogging Wear 2000 Belt Tension 2000 DRIVETRAIN Belt Change 15000 Blower Oil Change-Initial RIGHT ANGLE Shutdown GEARBOX Oil Change-Normal 1000 MOISTURE Drain Fluid TRAP/ SECONDARY 22 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191... -
Page 23: Oil Capacities And Recommendations
Dispose of used oil according to local regulations Rebuilding Rebuilding is beyond the scope of this owner’s manual and should be performed only by trained technicians. Consult an authorized distributor or NVE to arrange rebuilding of the blower. Change Gear Casing Lube; first 500 hours, then every 1,000 hours. -
Page 24: Clean Out Procedure If Flooded
Capacity ( oz) Manufacturer Grade 500 S eries Summit Summit S yngear S H-‐7220 600 S eries 80-‐90 Mobil Monilube S HC 7 5W-‐90 24 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191... -
Page 25: 4307 Blower Maintenance
It is therefore up to the operator to adjust the following schedule accordingly. Lubrication: Unlike a typical rotary vane vacuum pump, the Challenger Series 4307 high vacuum blower does not use oil in it’s operation. Therefore it is important to periodically lubricate the internal parts in the blower to keep it free of rust and corrosion, which can cause seizing or catastrophic failure. - Page 26 • Tighten the four fasteners in an alternate manner to maintain even pressure on the spring during compression. • Work the valve handle back and forth several times to ensure free movement. 26 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191...
- Page 27 | 888.814.9191 4307 & 4310 Blower | 27...
- Page 28 28 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191...
- Page 29 150-620-747 SEAL, 50 X 72 X 10 AS FMK 150-639-747 GASKET, END COVER 747 150-628-747 OIL COVER, NON-DRIVE 747/4310 802-650-009 BALLAST TEE W/ RISER, 4307 CAST 802-650-003A BALLAST TEE, 4310 CAST nvesalesrep.com | 888.814.9191 4307 & 4310 Blower | 29...
- Page 30 SHCS - M8 X 12MM HHCS - 5/16-18 UNC X 3.25 HEX HEAD CAP SCREW - 5/16-18 UNC X 3.25 HHCS - 5/16-18 UNC X 3 HEX HEAD CAP SCREW - 5/16-18 UNC X 3 30 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191...
- Page 31 426-3875-TBC CLAMP, T-BOLT 3.875" property of National Vacu information on this dr 803-650-009 E-COAT BALLAST TEE W/ RISER, 4307 CAST 150-099-008 WASHER, 5/16 SEALING BUNA disclosed to anyone no HHCS - 5_16-18 UNC X 3 HEX HEAD CAP SCREW - 5/16-18 UNC X 3 Know."...
- Page 32 O-RING, 2-350 VITON 120-065 TOWER, 4-WAY W/ FILTER 120-067-506 4-WAY HOUSING, 4" W/ FILTER 120-068 O-RING, 2-252 VITON 120-220 THERMOMETER, 50- 400 DEG, 2" FACE, 2.5" STEM, 1/4" - 18NPT 120-310 FILTER COVER 32 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191...
- Page 33 150-063-001 ELBOW, ADJ 4" W/ 1/4 NPT 150-063-005 FLANGE, 4" ADJ-ELBOW 150-063-008 ELBOW MANIFOLD 4307 MACH 150-063-009 CHECK VALVE FLANGE MANIFOLD 4307 MACH 150-099-007 WASHER, #10 FLAT HD 150-099-010 WASHER, THRUST BRONZE, 5.25" OD .06" 150-309-4307 FILTER HOUSING, 4" 150-616-002 GASKET, 4"...
- Page 34 34 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191...
- Page 35 150-310-002 COVER, FILTER 4310 150-063-002 ELBOW, ADJ 6" TO 4" MACH 150-041-007 CHECK VALVE FLAPPER, 4 IN SS 150-099-007 WASHER, #10 FLAT HD 150-314-002 FILTER, STAINLESS 4310 150-063-003 ELBOW, INTAKE 4310 4307 & 4310 Blower | 35 nvesalesrep.com | 888.814.9191...
- Page 36 LOCK WASHER, 3/8" LW - 1/2 LOCK WASHER, 1/2 PLUG - 1/4 NPT SH SOCKET HEAD PLUG - 1/4 NPT PLUG - 1/2 NPT SH SOCKET HEAD PLUG - 1/2 NPT 36 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191...
-
Page 37: Troubleshooting
D, E, F, H, K, U & V Blower is creating unusual noises or vibrations A, B, C, D, F, G,H, K, L, N, W & AC STOP THE BLOWER TO PREVENT DAMAGE nvesalesrep.com | 888.814.9191 4307 & 4310 Blower | 37... - Page 38 Four way valve not fully seated in Seat the 4-way valve. Clean if debris built up has proper position occurred. Faulty relief valve Replace relief valve Rotors timing is off Have blower rebuilt 38 | 4307 & 4310 Blower nvesalesrep.com | 888.814.9191...
- Page 39 | 888.814.9191 4307 & 4310 Blower | 39...
- Page 40 National Vacuum Equipment, Inc. Jeff McDonald 888.814.9191 jeff@nvesalesrep.com...
