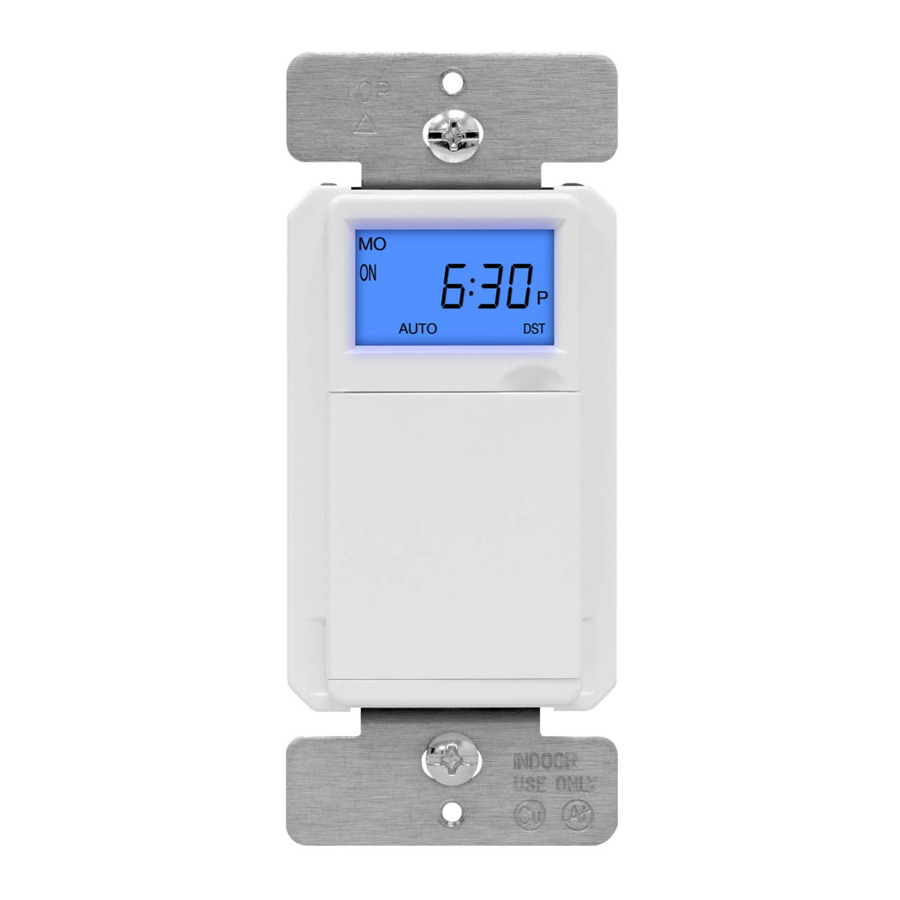

TOPGREENER TGT01-H - Astronomic In-Wall Programmable Timer with Interchangeable Face Cover Manual

FEATURES

• Astronomical feature: Automatically adjusts dusk to dawn times
• Total of 7 on, 7 off programmable settings
• Single pole or Three way installations
• Random On/Off operation for security
• Manual override
• Battery backup: Programs will be saved during power outages
• Daylight Savings: Auto adjusts for daylight savings time
• Replaces standard wall switch
• Back-lit LCD screen
• Works with CFL, LED and incandescent bulbs
• Interchangeable face covers. White. (Light Almond, and Black NOT INCLUDED)

SPECIFICATIONS

REQUIREMENTS

• This timer requires that your switch box have a neutral wire in order for the timer to operate correctly. If you open up your switch box and only see 2 wires, this indicates that your switch box does not have a neutral wire and this timer will not work.
• This timer will work in a single pole or 3-way installation. It will not work in a 4-way installation.
• This timer is rated for loads up to 15 amps combined outlets.

WIRING DIRECTIONS

First, decide if you will be controlling the lights from one location or multiple locations. Next, identify all wires. Once you've identified the wires, follow the diagram below for wiring.

Single Pole Installation

REPLACING THE FACE COVER

1. Gently remove the face cover using a flathead blade screwdriver. Find the slots at the bottom left or right of the face cover and pry the face cover loose.

2. Place the new face cover into position. Push the top of the face cover in first, then push in the bottom until it snaps into place.

MAIN SCREEN BUTTONS AND INDICATORS

SETTINGS button.
When you press the button 1, 2, 3, 4, 5, or 6 times the following settings will appear for configuration:

1. time to set the clock
2. times to set the year
3. times to set the month
4. times to set the day
5. times to select the region
6. times to turn Daylight Savings (DST) On/Off

UP SELECTION button.
Use to navigate while in settings and programming.
TIMER and MANUAL ON/OFF button.

1. Hold down for 3 seconds to enter countdown timer mode.
2. Press and release to manually turn the connected load(s) ON/ OFF. Using the button to turn load on will override the running program until the button is used again to turn the load off.

PROGRAM button.
Press to scroll through program On/ Off schedules. The schedule shows you what you have programmed into this timer.
DAWN/DUSK button.
From the main screen, press to configure the dusk/ dawn times.
MODE/ DELETE button.
From the main screen, press the button to switch between Manual, Automatic, and Random operation mode.

• Automatic Mode: The timer will run the programs that you have scheduled. It will automatically turn the lights ON or OFF based on all your programs.
• Manual Mode: The timer WILL NOT run the programs that you have scheduled. You will only be able to operate the lights using the button.
• Random Mode: Randomly turns the lights ON/OFF within 30 minutes before or after the programmed times.

DOWN SELECTION button.
Use to navigate while in settings and programming.
RESET button:
Push and immediately release to reset all settings to Factory Default.
HOME button.
From any screen, press to exit and return to home screen.

INDICATORS ON PROGRAMMING SCREEN

NOTE: Before you start, it's best to factory reset the timer to clear the timer of any programs that may have been unintentionally left during random QA testing. To do so, press and release the button.

SETTING THE CLOCK

1. From the main screen, press and release the button once.
2. Press the or button to change the time. Make sure the AM/PM indicator displays the correct "morning/ afternoon" symbol.
3. Press to exit and return to home screen or press the button to continue to set the date.

SETTING THE DATE

1. From the main screen, press and release the button twice.
2. Press the or buttons to select the year.
3. Press and release the button again to view the month and use the or buttons to change the month.
4. Press and release the button again to view the day and use the or buttons to change the day.
5. Press to exit and return to home screen or press the button to continue to set the region.

SETTING THE REGION

It is important to set the correct region because the Dusk/Dawn feature operates based on the region selection. Since the device does not transmit or receive signals, the region must be manually selected and the Dusk/ Dawn times may need adjustment. See ADJUSTING THE DUSK/DAWN TIME.

1. From the main screen, press and release the button 5 times.
2. Press the or buttons to change the region.
   Choices are:
   NOR = North United States
   CENT = Central United States
   SOU = South United States
   MEX = Mexico
   PRI = Puerto Rico
   HAW = Hawaii
3. Press to exit and return to home screen.

SETTING THE DAYLIGHT SAVINGS TIME (DST)

1. From the main screen, press and release the button 6 times.
2. Press the or button to toggle the DST on/off.
3. Press to exit and return to home screen.

NOTE: Daylight Savings does not automatically change. You must go into DST setting and manually turn DST on or off.

UNDERSTANDING REGIONS AND DUSK/DAWN TIME

Selecting the region will tell the device how much daylight there is based on your geographical location and the rotation of the earth. The Dusk/Dawn times will average the dusk and dawn times based on each region. When you select the region "Central" and you are in the Northernmost or Southernmost part of the central region, you may need to adjust the dusk or dawn time so when you use the quick program settings, you will have a more accurate dusk/dawn time when used during programming.
To use the Dusk/Dawn feature, you must first select the region, then adjust the Dusk/Dawn time, then use the button while in programming mode.

ADJUSTING THE DUSK/DAWN TIME

1. Press and release the button once to adjust the Dusk time.
2. Press the or button to adjust the time.
3. Press and release the button again to adjust the Dawn time.
4. Press the or button to adjust the time.
5. Press to exit and return to home screen.

NOTE: Depending on your geographical location, you may need to adjust the dusk/dawn time. This device does not transmit or receive data, therefore does not automatically find your location.

PROGRAMMING ON/OFF TIMES

REVIEWING PROGRAMS
Press the button to scroll through all On/Off programs.
NOTE: There are a total of 7 On and 7 Off programs available. During programming, the system will return to home screen if there are more than 6 seconds of inactivity. For every "ON" program, you should also add an "OFF" program.

ADD AN "ON" TIME AND "OFF" TIME TO THE TIMER'S SCHEDULE

1. Press the button once to make changes to "Program 1 ON". The display will show "ON PRG 1" as illustrated.

2. Press to change the "ON PRG 1" time. Use the buttons to navigate to the desired "ON" time. Be sure the correct AM/PM indicator when selecting the time.
3. Once you have the desired time, press to change the day or days for "ON PRG 1". Use the buttons to select the day or days of week to run "ON PRG 1".
4. Press PRG button until you get to "OFF PRG 1" screen.

5. Press to change the "OFF PRG 1" time. Use the buttons to navigate to the desired "OFF" time. Be sure the correct AM/PM indicator when selecting the time.
6. Once you have the desired time, press to change the day or days for "OFF PRG 1". Use the buttons to select the day or days of week to run "OFF PRG 1".
7. Once you have the desired days, press to save and exit to home screen.

USING THE DUSK/DAWN TIME DURING PROGRAMMING

EXAMPLE 1: USE DUSK FOR "ON" PROGRAM

1. Press the button ONCE to make changes to "Program 1 ON". The display will show "ON PRG 1" as illustrated.

2. Press to change the time of the selected program.
3. Press until the dusk time is displayed.
4. Once you have the desired time, press to change the day or days for this program. Use the buttons to select the day or days of week to run this program.
5. Once you have the desired days, press to save and exit to home screen.

EXAMPLE 2: USE DAWN FOR "OFF" PROGRAM

1. Press the button TWICE to make changes to "Program 1 OFF". The display will show "OFF PRG 1" as illustrated.

2. Press to change the time of the selected program.
3. Press until the dusk time is displayed.
4. Once you have the desired time, press to change the day or days for this program. Use the buttons to select the day or days of week to run this program.
5. Once you have the desired days, press to save and exit to home screen.

OTHER PROGRAMMING

DELETING PROGRAMS

• Press the button to scroll to the program to be deleted and press button to delete. The screen will show the program has been deleted.


RESET DEVICE TO FACTORY DEFAULTS

• Press and release the button

OPERATING THE TIMER

To run the programs you saved, set the mode to "AUTO". Make sure "AUTO" appears on the display.

SETTING THE TIMER TO AUTO, MANUAL OR RANDOM MODE

Press button to scroll through the available modes:

• AUTO – (Automatic) Timer is in Automatic mode and will operate by the programmed times
• MANU – (Manual) This overrides the programmed times an the lights can only be turned On and Off by pressing the ON/OFF button
• RND – (Random) The timer will randomly turn ON/OFF times within 30 minutes of all the programmed times
  EXAMPLE: If you have 7pm "ON" programmed for WE, the timer will turn the lights ON some time between 6:30 pm and 7:30 pm every Wednesday. It will not be the same time each occurrence.


In the example above, the current date and time is Wednesday, 7PM. The lights connected to this timer is in the "ON" state. The timer is running in automatic mode. Daylight Savings Time is turned on.

COUNTDOWN TIMER

1. Press and hold the button for 3 seconds to enter countdown timer mode.
2. Press the or button to adjust the run time.
3. Wait 8 seconds and the countdown will start.
4. To cancel and exit, press and release the button.


WARNING

Turn the POWER OFF at the circuit breaker before installing the timer.
Read and understand these instructions before installing. This device is intended for installation in accordance with the National Electric Code and local regulations. It is recommended that a qualified electrician performs this installation.
Use copper wire only.
