Topgreener TGT09 Installation Instructions

INSTALLATION INSTRUCTIONS
UP WE
ON
SET P
AUTOMANURND DST
DOWN
Model: TGT09
ASTRONOMIC PROGRAMMABLE
HEAVY DUTY DIGITAL PLUG-IN TIMER

FEATURES

• Astronomical feature: Automatically adjusts dusk to dawn times
• Total of 7 on, 7 off programmable settings
• Random On/Off operation for security
• Manual override
• Battery backup: Progams will be saved during power outages
• Daylight Savings: Auto adjusts for daylight savings time
• Works with CFL, LED and incandescent bulbs
Voltage......................................................................................... 120VAC, 60Hz
Resistive.....................................................................................15A, 1800W
Tungsten....................................................................................................1200W
Standard Ballast.......................................................................................1200VA
LED..............................................................................................................150W
Motor ...................................................................................................1/2Hp

WARRANTY

This device is warranted to be free of material and workmanship defects for 1 year from the date of purchase. Original receipt or proof of purchase from an authorized retailer must be presented upon warranty claim.
ALL claims must be verified and approved by Top Greener, Inc. Warranties from other Top Greener products may vary. This warranty is nontransferable and does not cover normal wear and tear or any malfunction,
failure, or defect resulting from misuse, abuse, neglect, alteration, modification, or improper installation. To the fullest extent permitted by the applicable state law, Top Greener shall not be liable to the purchaser or
end user customer of Top Greener products for direct, indirect, incidental, or consequential damages even if Top Greener has been advised of the possibility of such damages. Top Greener' total liability under this
or any other warranty, express or implied, is limited to repair, replacement or refund. Repair, replacement or refund are the sole and exclusive remedies for breach of warranty or any other legal theory.

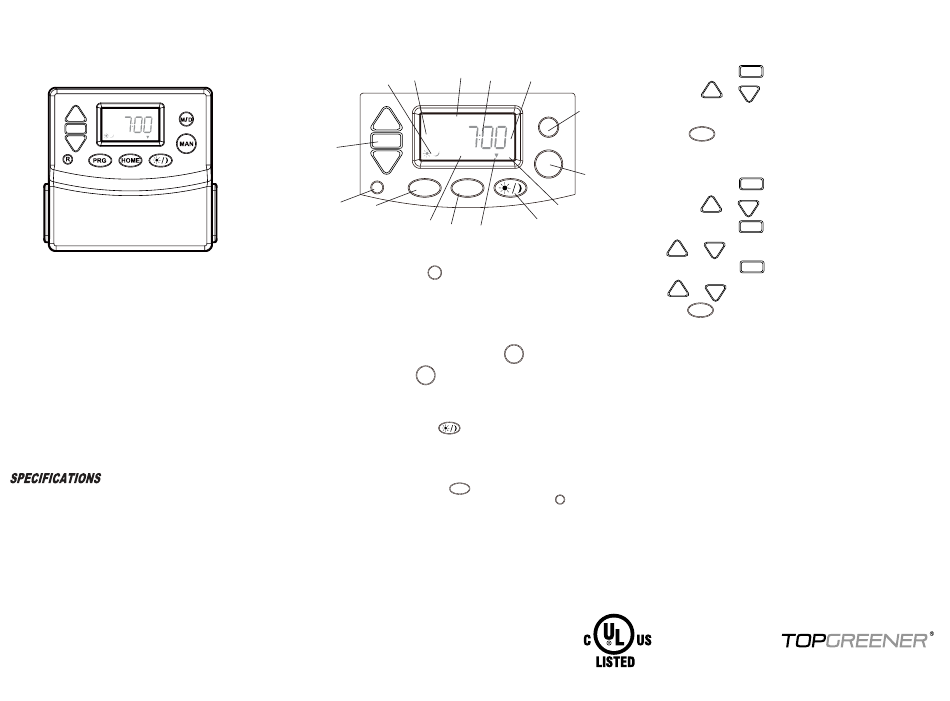

MAIN SCREEN BUTTONS AND INDICATORS

1.
15. 2.
14.
UP
WE
ON
SET
13.
AUTOMANURND DST
DOWN
R PRG
HOME
12.
11.
10.
9.
8.
1. Indicates the day of the week.
2. CLOCK
3. AM/ PM indicator
4. MODE button. Press the M/D button to switch between Manual, Automatic, and
Random operation mode.
• Automatic Mode: The timer will run the programs that you have scheduled. It will
automatically turn the lights ON or OFF based on all your programs.
• Manual Mode: The timer WILL NOT run the programs that you have scheduled.
You will only be able to operate the lights using the MAN button.
• Random Mode: Randomly turns the lights ON/OFF within 30 minutes before or
after the programmed times.
5. TIMER and MANUAL ON/OFF button. Hold down
MAN
or press and release to manually turn the light(s)/ load(s) ON/ OFF.
6. DAYLIGHT SAVINGS TIME indicator.
• DST displayed = ON
• DST not displayed = OFF
7. Dusk to Dawn Button. Press once to set dusk time, 2 times to set Dawn time.
8. Timer indicator
9. HOME button. Does not have function on home screen.
10. AUTO/ MANUAL/ RANDOM indicator. Indicates Manual operation mode,
Automatic timer controlled mode, and Random mode
11. PROGRAMMING button. Press to scroll through program On/ Off schedules.
PRG
12. RESET button: Push to reset all settings to Factory Default. Press
immediately release.
13. SET button. Press:
1 time to set the clock
2 times to set the year
3 times to set the month
4 times to set the day
5 times to select the region
6 times to turn Daylight Savings (DST) On/Off
14. Indicates dusk and dawn selections.
15. Indicates the status of connected light(s) or load(s): ON/ OFF.

SETTING THE CLOCK

1. Press and release the
3.
2. Press the
4.
indicator displays the correct "morning/ afternoon" indicator.
M/D
3. Press
P

SETTING THE DATE

MAN
5.
1. Press and release the
2. Press the
6.
7.
3. Press and release the
UP
4. Press and release the
UP
3. Press
MAN
for 3 seconds to enter timer
and
R
button once.
SET
UP or buttton to change the time. Make sure the am/pm
DOWN
to exit and return to home screen.
HOME
SET button twice.
or butttons to select the year.
UP DOWN
SET button again to view the month and use the
or buttons to change the month.
DOWN
SET
button again to view the day and use the
or buttons to change the day.
DOWN
to exit and return to home screen.
HOME
©2018 Top Greener, Inc. • CA, USA • www.topgreener.com • 0208180129-01
