- Page 1 Installation manual STAGE3 607C STAGE3 527F STAGE3 8627 STAGE3 607CF STAGE3 627 STAGE3 9637 STAGE3 427 STAGE3 627F STAGE3 9637F STAGE3 427F STAGE3 637F STAGE3 527 STAGE3 6427...

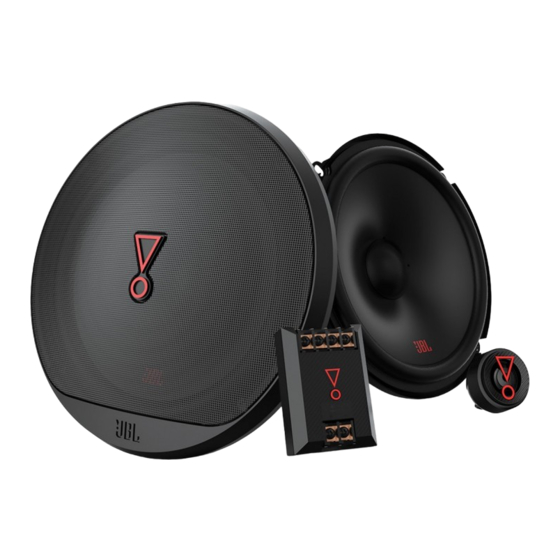

- Page 2 STAGE3 607C...
- Page 6 Specification Thiele-Small Parameters • BL (Tm): 3.316 • Type: 6-1/2” (165mm) 2-way component system car speaker • DCR (ohms): 2.45 • Power Handling: 50W RMS, 250W (Peak) • Mms (g): 14.017 • Sensitivity (@2.83V/1m): 92dB • Sd (cm2): 138.93 • Frequency Response: 55Hz - 20kHz •...
- Page 7 STAGE3 607CF...
- Page 11 Specification Thiele-Small Parameters • BL (Tm): 3.316 • Type: 6-1/2” (165mm) 2-way component system car speaker for • DCR (ohms): 2.45 factory upgrade without grille • Mms (g): 14.017 • Power Handling: 50W RMS, 250W (Peak) • Sd (cm2): 138.93 •...
- Page 12 STAGE3 427...
- Page 14 Specification Thiele-Small Parameters • BL (Tm): 2.467 • Type: 4” (100mm) 2-way coaxial car speaker • DCR (ohms): 2.74 • Power Handling: 30W RMS, 150W (Peak) • Mms (g): 5.501 • Sensitivity (@2.83V/1m): 90dB • Sd (cm2): 63.62 • Frequency Response: 75Hz - 20kHz •...
- Page 15 STAGE3 427F...
- Page 17 Specification Thiele-Small Parameters • BL (Tm): 2.467 • Type: 4” (100mm) 2-way coaxial car speaker for factory upgrade without • DCR (ohms): 2.74 grille • Mms (g): 5.501 • Power Handling: 30W RMS, 150W (Peak) • Sd (cm2): 63.62 • Sensitivity (@2.83V/1m): 90 dB •...
- Page 18 STAGE3 527...
- Page 20 Specification Thiele-Small Parameters • BL (Tm): 3.148 • Type: 5-1/4” (130mm) 2-way coaxial car speaker • DCR (ohms): 2.61 • Power Handling: 40W RMS, 200W (Peak) • Mms (g): 9.81 • Sensitivity (@2.83V/1m): 91dB • Sd (cm2): 102.07 • Frequency Response: 75Hz - 20kHz •...
- Page 21 STAGE3 527F...
- Page 23 Specification Thiele-Small Parameters • BL (Tm): 3.148 • Type: 5-1/4” (130mm) 2-way coaxial car speaker for factory upgrade without • DCR (ohms): 2.61 grille • Mms (g): 9.81 • Power Handling: 40W RMS, 200W (Peak) • Sd (cm2): 102.07 • Sensitivity (@2.83V/1m): 91dB •...
- Page 24 STAGE3 627...
- Page 26 Specification Thiele-Small Parameters • BL (Tm): 3.347 • Type: 6-1/2” (160mm) 2-way coaxial car speaker • DCR (ohms): 2.43 • Power Handling: 45W RMS, 225W (Peak) • Mms (g): 13.661 • Sensitivity (@2.83V/1m): 92dB • Sd (cm2): 138.93 • Frequency Response: 55Hz - 20kHz •...
- Page 27 STAGE3 627F...
- Page 29 Specification Thiele-Small Parameters • BL (Tm): 3.347 • Type: 6-1/2” (160mm) 2-way coaxial car speaker for factory upgrade without • DCR (ohms): 2.43 grille • Mms (g): 13.661 • Power Handling: 45W RMS, 225W (Peak) • Sd (cm2): 138.93 • Sensitivity (@2.83V/1m): 92dB •...
- Page 30 STAGE3 637F...
- Page 32 Specification Thiele-Small Parameters • BL (Tm): 3.347 • Type: 6-1/2” (165mm) 3-way coaxial car speaker for factory upgrade without • DCR (ohms): 2.43 grille • Mms (g): 13.661 • Power Handling: 45W RMS, 225W (Peak) • Sd (cm2): 138.93 • Sensitivity (@2.83V/1m): 92dB •...
- Page 33 STAGE3 6427...
- Page 36 Specification Thiele-Small Parameters • BL (Tm): 3.146 • Type: 4” x6” (100mm x 152mm) 2-way coaxial car speaker • DCR (ohms): 2.36 • Power Handling: 35W RMS, 175W (Peak) • Mms (g): 8.151 • Sensitivity (@2.83V/1m): 91dB • Sd (cm2): 86.59 •...
- Page 37 STAGE3 8627...
- Page 39 Specification Thiele-Small Parameters • BL (Tm): 3.736 • Type: 6” x8” (152mm x 203mm) 2-way coaxial car speaker • DCR (ohms): 2.63 • Power Handling: 50W RMS, 250W (Peak) • Mms (g): 17.369 • Sensitivity (@2.83V/1m): 93dB • Sd (cm2): 176.71 •...
- Page 40 STAGE3 9637...
- Page 42 Specification Thiele-Small Parameters • BL (Tm): 3.533 • Type: 6” x9” (152mm x 230mm) 3-way car speaker • DCR (ohms): 2.34 • Power Handling: 75W RMS, 375W (Peak) • Mms (g): 22.973 • Sensitivity (@2.83V/1m): 93dB • Sd (cm2): 237.79 •...
- Page 43 STAGE3 9637F...
- Page 45 Specification Thiele-Small Parameters • BL (Tm): 3.533 • Type: 6”x9” (152mm x 230mm) 3-way car speaker for factory upgrade • DCR (ohms): 2.34 without grille • Mms (g): 22.973 • Power Handling: • Sd (cm2): 237.79 75W (RMS), 375W (Peak) •...
- Page 46 Incorporated, 8500 Balboa Boulevard, Northridge, CA 91329 © 2018 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change...
