GENERAL INFORMATION

The EX90-series battery powered, insertion electromagnetic
flow meter is designed for use with conductive fluids in 4"–
12" pipe. The EX90's stainless steel body allows the meter
to operate in a wide range of temperatures, pressure, and
corrosive or dirty environments.
The EX90 is highly suitable for difficult applications. With
no moving parts, these meters can be used in "dirty water"
applications where debris would foul a mechanical meter. If
the EX90 meter is used with a programmable controller, the
output signal can be fed direct, with no other conditioning
required.

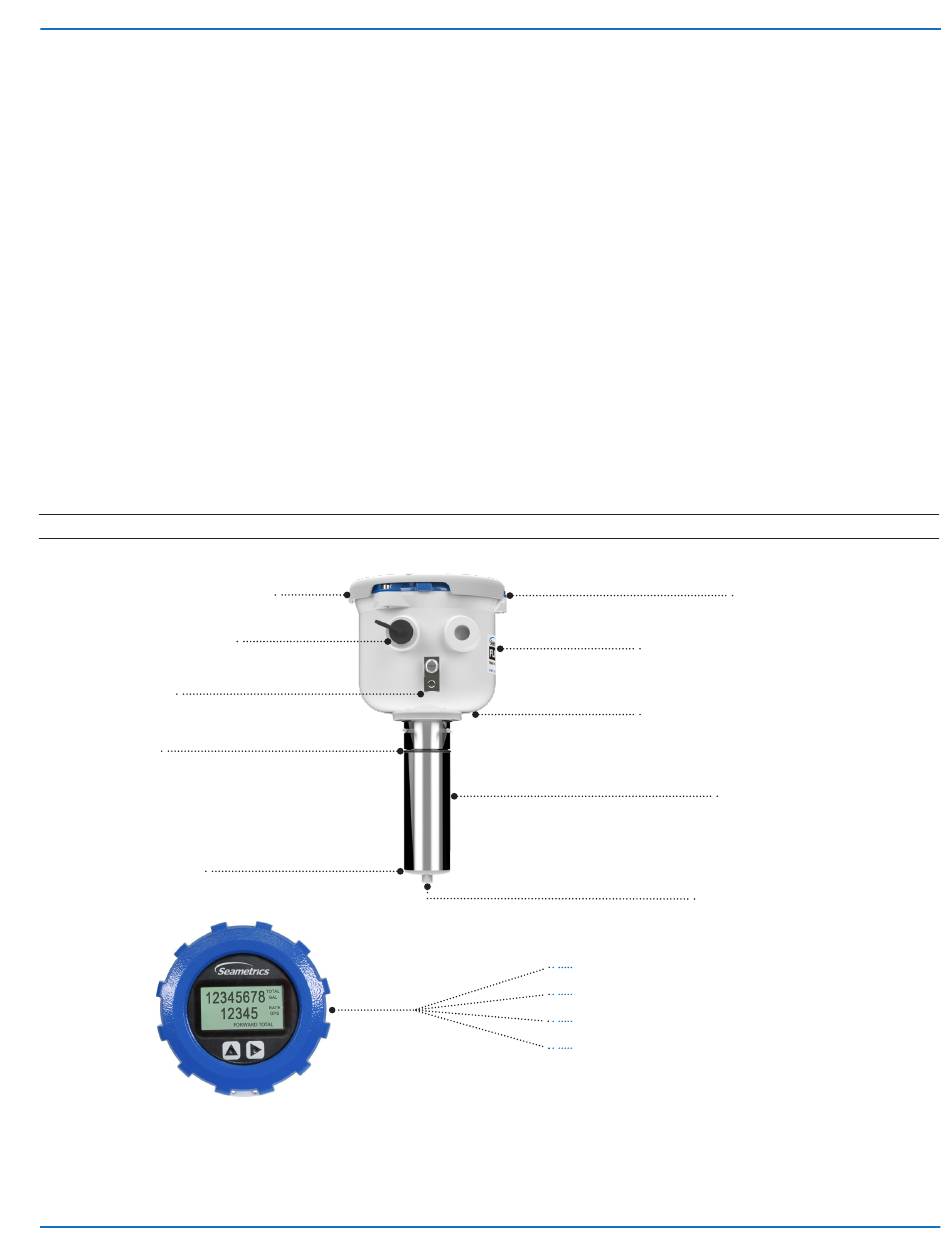

Features

Rate and total indicator with
light sensor button controls
Output cable connector
Equalization lug
O-ring, EPDM
PVDF electrode cap
Quickly and easily change Total Volume Units,
Flow Rate Units, Pulse Output Scaling, and many
other settings using the two light sensor button
controls on the display panel.
Seametrics • 253.872.0284
Rate and total units can be set via the front panel touch key
pad by the user. Bidirectional flow is standard with totals
available in forward, reverse, net, batch forward and batch
reverse.
The EX90 is battery powered with an output cable available
for transmitting the pulse signal to remote devices. The
EX90 can be ordered with a saddle or weld fitting designed
to accommodate a wide range of pipe sizes and types
while ensuring correct placement in the pipe. In addition,
an optional internal data logger allows local storage of
flow history.
The EX90 is also ideal for replacement of mechanical style
propeller meters.
Powder-coated diecast aluminum
Battery Powered
Bidirectional Flow Reading
Pulse Scaled Output
Built-in Data Logger
Page 3
EX90 - SERIES INSTRUCTIONS
Hinged Display Cover
Data logger connector (Optional)
(Not shown)
electronics housing
Sensor body (Stainless)
C276 Hastelloy electrodes
(Optional)
