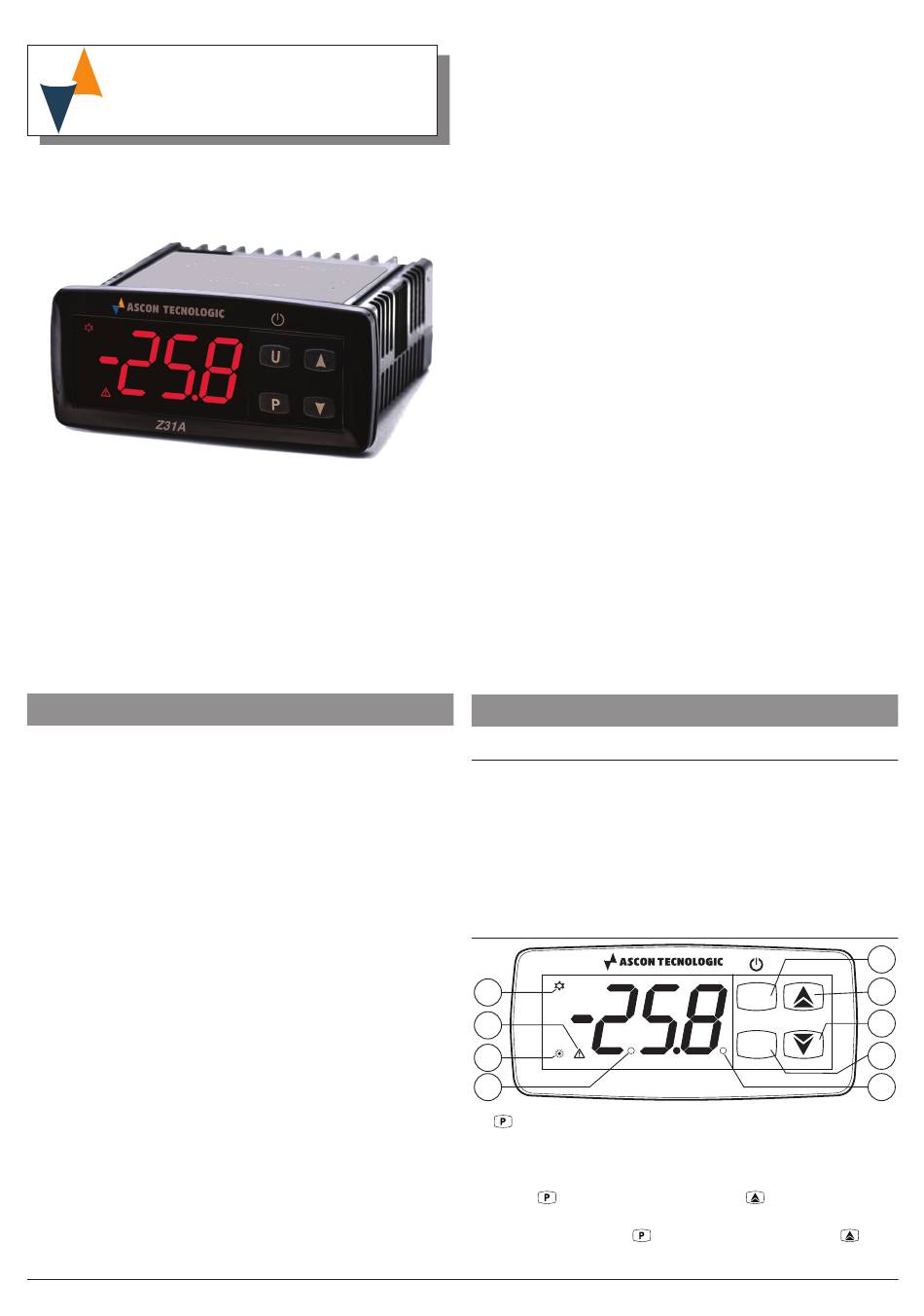

Ascon tecnologic Z31A Operating Instructions Manual

Z31A/Z31AS
DIGITAL ELECTRONIC
TEMPERATURE CONTROLLER
OPERATING INSTRUCTIONS
23/05 - Code: ISTR_M_Z31A_E_01_--
Ascon Tecnologic S.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
Tel.: +39 0381 69871 - Fax: +39 0381 698730
Sito: http:\\www.ascontecnologic.com
e-mail: info@ascontecnologic.com
PREfACE
m
This manual contains the information necessary for
the product to be installed correctly and also instruc-
tions for its maintenance and use; we therefore recom-
mend that the utmost attention is paid to the following
instructions and to save it.
This document is the exclusive property of Ascon Tecnologic
S.r.l. which forbids any reproduction and divulgation, even
partially, of the document, unless expressly authorized.
Ascon Tecnologic S.r.l. reserves the right to make any formal
or functional changes at any moment and without any notice.
Ascon Tecnologic S.r.l. and its legal representatives do not
assume any responsibility for any damage to people, things
or animals deriving from violation, wrong or improper use or
in any case not in compliance with the instrument features.
m
Whenever a failure or a malfunction of the device
may cause dangerous situations for persons, thing
or animals, please remember that the plant has to be
equipped with additional electromechanical devices
which will guarantee safety.
Ascon Tecnologic - Z31A - Operating Instructions - Pag. 1
Index
1 Instrument description ............................................. 1
1.1 General Description ........................................................ 1
1.2 Front Panel Description ................................................... 1
2 Programming ............................................................. 2
2.1 Fast Set Point Programming ........................................... 2
2.2 Standard Mode Parameters Programming ..................... 2
2.3 Parameter Protection Using a Password ........................ 2
2.4 Customized Mode Parameters Programming
(parameters programming level) ..................................... 2
2.5 Reset Parameters to Default Value ................................. 3
2.6 Keyboard Lock Function ................................................. 3
3 Usage Warnings ........................................................ 3
3.1 Admitted Usage .............................................................. 3
4 Installation warnings ................................................. 3
4.1 Mechanical Mounting ...................................................... 3
4.2 Dimensions [mm] ............................................................ 3
4.3 Electrical Connections .................................................... 4
5 functions ................................................................... 4
5.1 ON/STAND-BY Function ................................................. 4
5.3 Temperature Control ....................................................... 5
5.4 Compressor Protection Function and
Delay at Power-ON ......................................................... 5
5.5 Alarm Functions .............................................................. 6
6 Accessories ............................................................... 6
7 Programmable parameters table .............................. 7
8 Problems and Maintenance ...................................... 8
8.1 Error messages ............................................................... 8
8.2 Other messages .............................................................. 8
8.3 Cleaning .......................................................................... 8
8.4 Disposal .......................................................................... 8
9 Warranty and Repairs ............................................... 8
10 Technical Data ........................................................... 8
10.1 Electrical Data ................................................................. 8
10.2 Mechanical Data ............................................................. 8
10.3 Functional Features ........................................................ 8
11 How to order .............................................................. 9
1

INSTRUMENT DESCRIPTION

1.1

General Description

The model Z31A is a digital electronic temperature controller
with ON/OFF temperature control.
The instrument has one relay output and one input for PTC
or NTC temperature probes, in addition can be equipped
with an internal buzzer that is the sound system for alarms.
The model Z31SA have the "S-touch" capacitive sensor
keyboard system.
1.2

front Panel Description

6
8
7
Z31SA
9
1 : Used for setting the Set point (press and release)
and for programming the function parameters (pressed
for 5 s). In programming mode is used to enter in param-
eters edit mode and confirm the values. In programming
mode can be used together with
the programming level of the parameters. When the
keyboard is locked,
(pressed for 5 s) key to unlock the keyboard.
U
P
key to change
can be used together with
4
3
2
1
5
