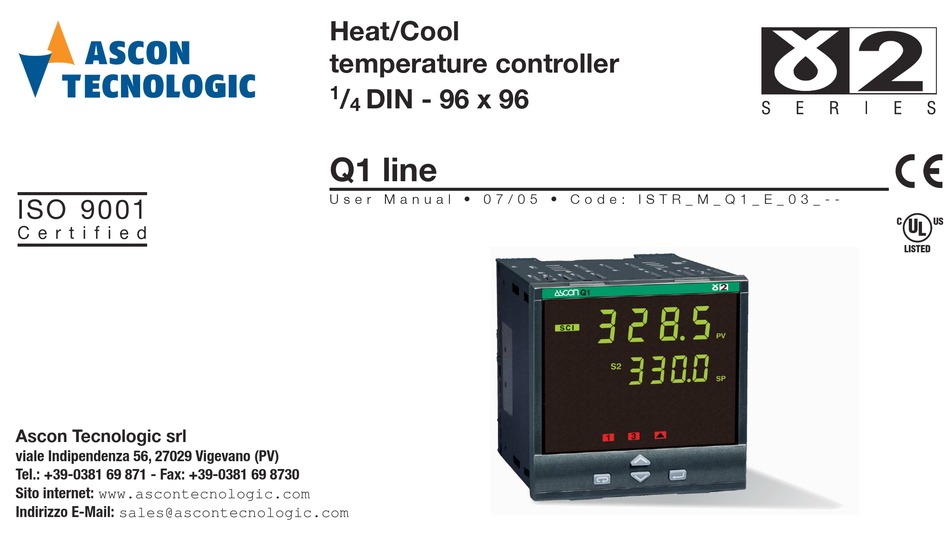

Heat/cool temperature controller 1/4 din - 96 x 96
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ISO 9001
C e r t i f i e d
Ascon Tecnologic srl
viale Indipendenza 56, 27029 Vigevano (PV)
Tel.: +39-0381 69 871 - Fax: +39-0381 69 8730
Sito internet: www.ascontecnologic.com
Indirizzo E-Mail: sales@ascontecnologic.com
Heat/Cool
temperature controller
1
/
DIN - 96 x 96
4
Q1 line
U s e r M a n u a l • 0 7 / 0 5 • C o d e : I S T R _ M _ Q 1 _ E _ 0 3 _ - -
c
c
C
US
U L
LISTED
