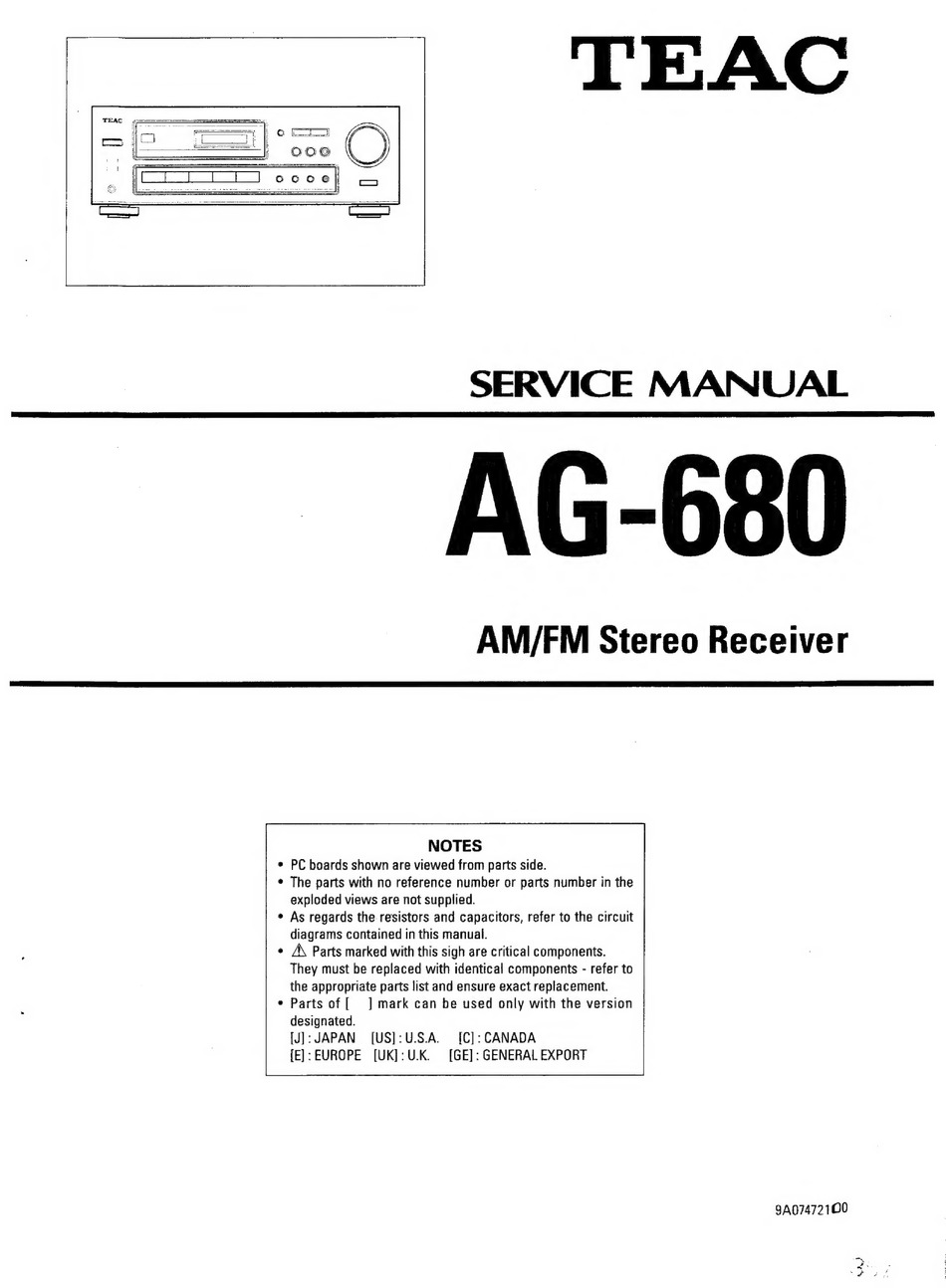

SERVICE MANUAL
AG-680

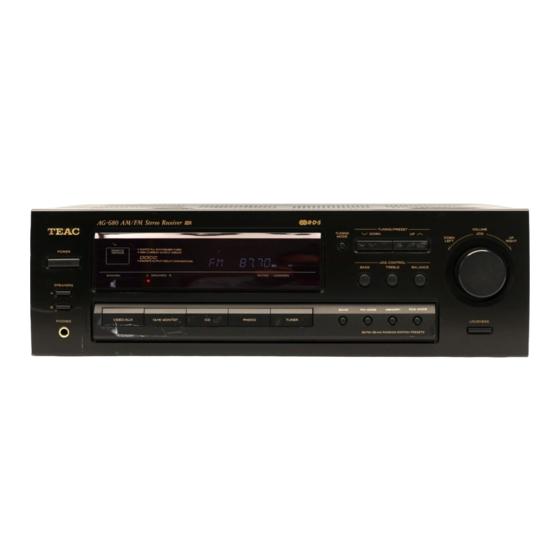

AM/FM Stereo Receiver
* PC boards shown are viewed from parts side.
¢ The parts with no reference number or parts number in the
exploded views are not supplied.
¢ As regards the resistors and capacitors, refer to the circuit
diagrams contained in this manual.
* A\ Parts marked with this sigh are critical components.
They must be replaced with identical components - refer to
the appropriate parts list and ensure exact replacement.
e Parts of [
] mark can be used only with the version
designated.
[J]: JAPAN
[US]:U.S.A.
[C]: CANADA
{E]: EUROPE
[UK]:U.K.
[GE]: GENERAL EXPORT
NOTES
9A07472100
