Release Date
February 2014
Add
our
Bluetooth®
incoming calls and place outgoing calls with compatible
phones — all without having to fumble around for your cell
phone. You can also stream music from any compatible
phone or tablet — use the dedicated keys to skip or replay
tunes. Built in USB 2.1 Amp charger. NFC simple pairing
function.
ANTIQUE AUTOMOBILE RADIO, INC.
700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733

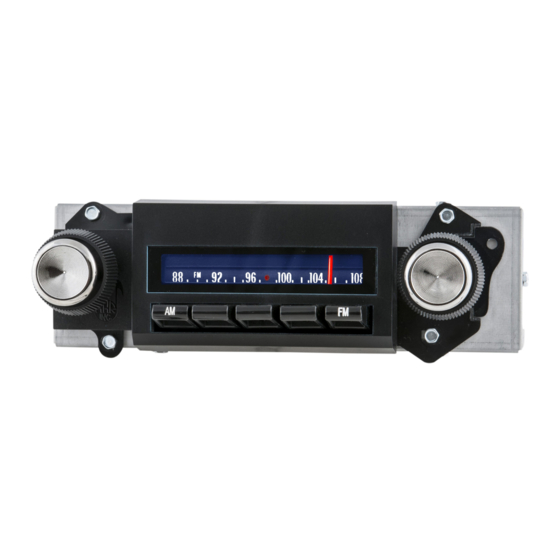

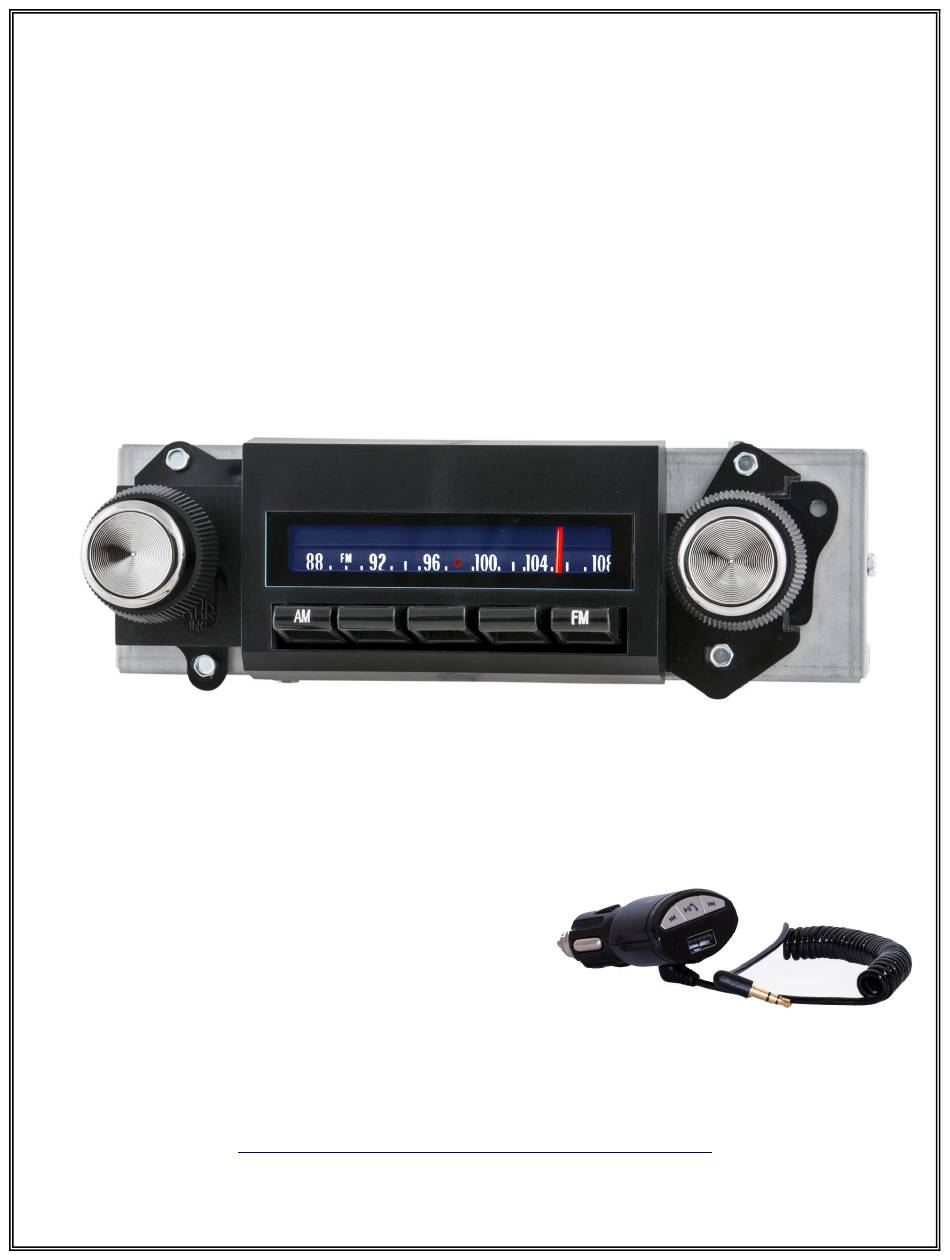

1969 - 70 FIREBIRD
AM/FM STEREO
RADIO INSTALLATION
OPERATING INSTRUCTIONS
Model 722201B
1
adapter
kit
For HELP, Questions or Comments email:
support@radiosforoldcars.com
AND
AM/FM9.2
option!
Answer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Antique Automobile Radio 722201B
Summary of Contents for Antique Automobile Radio 722201B
- Page 1 — use the dedicated keys to skip or replay tunes. Built in USB 2.1 Amp charger. NFC simple pairing function. ANTIQUE AUTOMOBILE RADIO, INC. 700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733 For HELP, Questions or Comments email:...
- Page 2 CONGRATULATIONS! You have one of the most unique and sophisticated radios ever built! It is designed for a long trouble free life and quality sound. Our objective is to preserve the original fit, functions and appearance of your radio while providing superior sound using the best of the latest digital technology.
- Page 3 Your radio has a 12 pin connector for the speakers, power, and options. See inset below for more details. There is one red (fused) wire. This is the main power input. It should be connected to the 12 volt Accessory circuit. There is a green wire that is used for the dial light.
- Page 4 INSTALLATION If you intend to use our Bluetooth® adapter kit install the extension cable provided with the kit. Refer to the Bluetooth® instructions The drawing below shows the correct mounting method for all Firebird dashes. Even though the radio is much smaller and lighter than the original, It will go into the dash the same way that the old one came out.
