SZ-WGS-1/2U COMPACT WIRELESS
GUITAR SYSTEM USER MANUAL

PRECAUTIONS

Power supply
Be sure to tum the power OFF when the unit is not in use.
Handling
To avoid breakage, do not apply excessive force to the switches or controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid
cleaners, or cleaning compounds, or polishes.
Keep this manual
After reading this manual, please keep it for later reference.

MAIN FEATURES

SZ-WGS-1/2U wireless audio transmission system consists of two units, including SZ-WGS-1/2U
Transmitter and SZ-WGS-1/2U Receiver, using UHF frequency and FM high fidelity coding
technology. The signal is high quality transmitted without compression or distortion.
1. Suitable for guitar, bass and all instruments with 6.35mm audio jack.
2. Transmitter and Receiver are with 6.35mm mono audio plug, 60°rotatable, compatible with
most different audio jack positions.
3. The Receiver uses true diversity receiving technology, making the signal transmission more
stable.
4. Transmitter and Receiver have built-in lithium batteries.
5. One button for all controls for ease of use.
6. 3 built-in channels , with 3 colour indicators to show each channel.
7. Digitally matched pairing, easy and simple to use from powering On.
8. Zero transmission delay (delay time < 1mS).

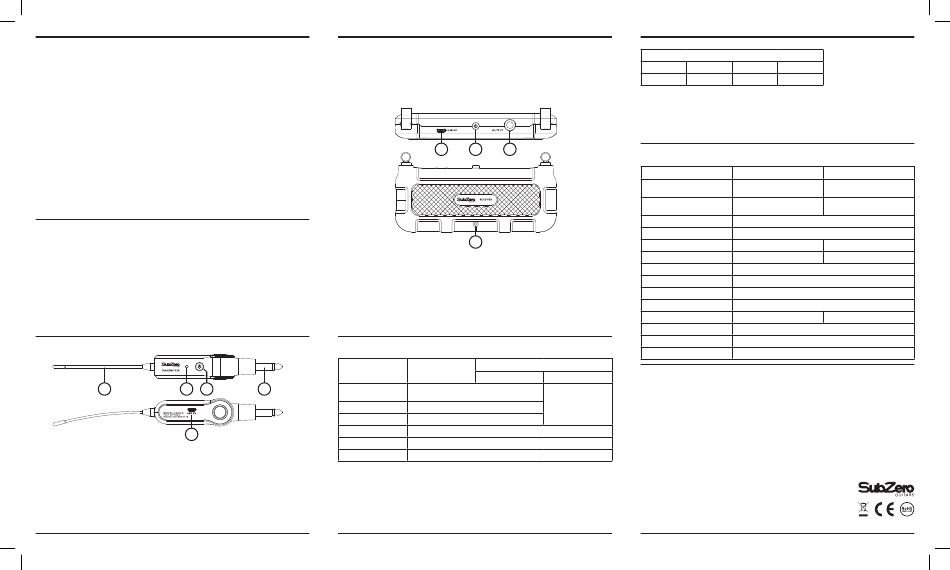

PARTS AND FUNCTIONS

4 3 2
5
1. 6.35mm jack audio connector, connecting to instruments or other products with same gauge
audio output jack.
2. Control Button - Long press and hold for 2 seconds to turn power On/Off. Short press once to
switch channels.
3. 3 colour indicators (one colour for each channel)
4. Antenna
5. Micro USB power recharging socket
Receiver
6. Micro USB power recharging socket
7. Control Button - Long press and hold for 2 seconds to turn power On/Off. Short press once to
switch channels.
8. Audio output connector (a standard 6.35mm gauge audio cable required to connect Receiver
to your amp, pedal or audio interphase)
9. 3 colour indicators (one colour for each channel)
6

HOW TO USE

1. Press the control buttons both on the Transmitter and Receiver and hold for 2 seconds to turn
ON power. The LED indicators will light up. Please make sure that both LED indicators colours
are the same. If the LED colours not the same, press one of the Control Buttons to make the
two LED indicators a same colour, which means Transmitter and Receiver connected at a same
frequency channel. The Receiver indicator will then turn from flashing to be solid.
2. Connect the Transmitter to your instrument, and connect the Receiver to your amp or other
audio input jack.
3. Play your instrument to adjust amp volume to your desired level.

LED INDICATOR WORK SITUATION

BATTERY
TRANSMITTER
CONDITION
1
Power ON / Power
Indicator color under current frequency channel
level upper 30%
Power level less 30% The current channel indicator flashes slowly
Power level less 10% The current channel indicator flashes rapidly
Power level less 5 %
Power recharging
Recharging finished Indicator flashes in 5 seconds, Receiver automatically turns Off
LED Colour
Frequency Point

REMINDER:

1. The fact of Transmitter and Receiver becoming warm after power On and using for a while,
which is normal.
2. Do not use the transmitter or the receiver when recharging.
3. Receiver turns Off automatically in 30 minutes in case no signal connected from Transmitter.
7 8

SPECIFICATIONS

Power
Audio Interface
Channel
Operating Frequency
9
Transmission power
Receiver sensitivity
Signal noise ratio
System frequency response
Delay
Distortion
Max. input signal amplitude
Max. transmission distance
Work hour after full recharged
Recharging time
RECEIVER
OTHER SPECS
Connection success Connection failure
WEIGHT & DIMENSIONS
The current channel
Transmitter
indicator color flashes
Weight . . . . . . . . . . . .50g
Dimensions . . . . . . . . 120x22x24mm
Green light On
Receiver
Weight . . . . . . . . . . . .130g
Green light breath
Dimensions . . . . . . . . 150x74x24mm
Set package box
Weight . . . . . . . . . . . .195g
Dimensions . . . . . . . .170x30x150mm

PACKAGE LIST

Transmitter x1, Receiver x 1, USB cable x 1
If you have any more questions about this product, please do not hesitate to contact the
Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com

LED Indicator Color and Frequency

Red Green Blue
863.7M 864.3M 864.7M
TRANSMITTER RECEIVER
Rechargeable 3.7V/380mAH Rechargeable 3.7V/760mAH
Li battery Li battery
6.35mm gauge mono audio plug, 6.35mm gauge mono audio plug,
60 degrees rotatable 60 degrees rotatable
3 UHF channels
863.7 - 864.7MHz
>10dBm --
-- <-110dBm
<-85dB
40Hz~18KHz ±3dB
<1ms
<0.5%
S00mV --
>20m (no obstacle)
4.5H
<2.5H
(excluding plug or antenna)
(excluding plug or antenna)
MADE IN CHINA
