Subzero SZ-WGS-1 User Manual

SZ-WGS-1 POCKET WIRELESS
GUITAR SYSTEM USER MANUAL

PRECAUTIONS

Power supply
Be sure to tum the power OFF when the unit is not in use.
Handling
To avoid breakage, do not apply excessive force to the switches or controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid
cleaners, cleaning compounds, or polishes.
Keep this manual
After reading this manual, please keep it for later reference.

MAIN FEATURES

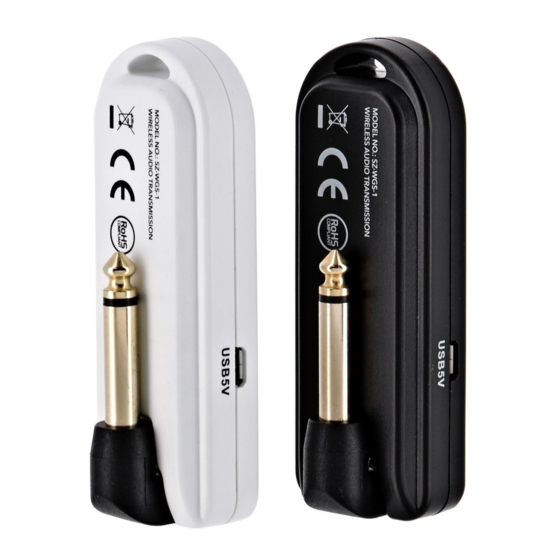

Wireless audio transmission system consists of two parts including Transmitter and
Receiver, using 5.8G frequency .
1. Suitable for guitar, bass and all instruments with 6.35mm audio jack.
2. Transmitter and Receiver are with 6.35mm mono audio plug, 120' rotatable , compatible for
most audio jack positions.
3. Both the Transmitter and Receiver have built-in lithium batteries.
4. Four built-in channels, with four colour indicators to indicate each channel.
5. Delay time less than 5.6 ms.

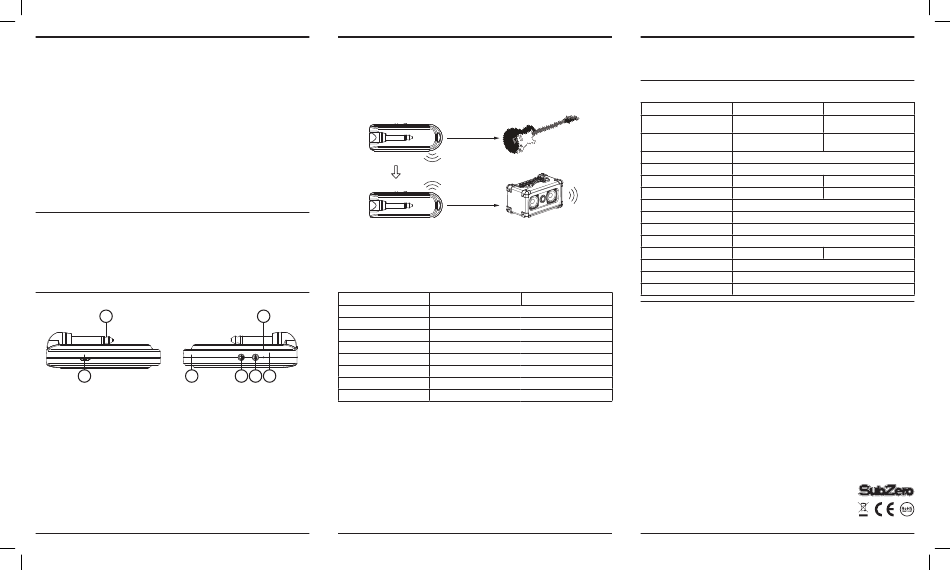

PANEL CONTROLS

1
6 4
Transmitter (black)
1. 6.35mm gauge audio connector, connecting to instruments or other devices with same gauge
audio output jack.
2. Indicator (orange)
3. Channel and power indicator
4. Power button
5. ID button
6. Micro USB power recharging jack
Receiver (white)
1. Audio output connector, connecting to amp or any other products with same gauge audio input
jack. (all the other parts and functions are the same as Transmitter).

HOW TO USE

1. Press and hold POWER buttons on Transmitter and Receiver to turn On.
2. If both ID indicators show a same colour and orange lights are Off, this means that Transmitter
and Receiver are paired successfully and ready to use.
3. If the orange indicator fl ashes, press and hold both Transmitter and Receiver ID buttons for 5 - 7
seconds to turn the ID lights the same colour. The orange indicators should now beOff.
4. Plug the Transmitter into your instrument, and the Receiver to you're amp or pedals.
TRANSMITTER
RECEIVER

NOTICE:

1. In case of failure paring, press the Transmitter POWER button fi rst (back to factory preset), and
then operate following step 2 above.
2. In case of interference through the wireless connection, press the Transmitter ID button to
change to another channel, the Receiver will change to the same channel automatically.
3. ID indicators 4 colours - red, green, blue and purple refer to 4 different channels. LED Indicator
Work Situation

BATTERY CONDITION

Power ON/ Power level upper 30%
3
Pairing
Paired
Power level less 30%
Power level less 10%
Power level less 5 %
5 4 2
Power recharging
Recharging fi nished
TO INSTRUMENT
TO AMP
TRANSMITTER RECEIVER
Power indicator ON
Power indicator fl ashes slowly
Power indicator fl ashes rapidly
Power indicator fl ashes in 5 seconds, and automatically turns off
Orange light fl ashes
Orange light off
Green lights breath
Green lights On

REMINDER:

1. Do not use the transmitter or the receiver when recharging.
2. Receiver turns Off automatically in 30 minutes in case no signal connected from Transmitter.

SPECIFICATIONS

TRANSMITTER
Rechargeable 3.7V/450mAH Li
Power
battery
6.35mm gauge mono audio plug,
Audio Interface
120° rotatable
Channel 4 Channels
Operating Frequency 5.729 – 5.820GHz
Transmission power >7dBm
Receiver sensitivity --
Signal noise ratio 140dB
Sound quality 24bt 48KHz
Delay 5.6ms
Distortion -100dB
Max. input signal amplitude S00mV
Max. transmission distance 35m (no obstacles)
Work hour after full recharged 4H
Recharging time <2H

OTHER SPECS

WEIGHT & DIMENSIONS
Transmitter
Weight . . . . . . . . . . . . . . . . . . . . . . 41g
Dimensions . . . . . . . . . . . . . . . . . . 88x32x27.3mm
Receiver
Weight . . . . . . . . . . . . . . . . . . . . . . 41g
Dimensions . . . . . . . . . . . . . . . . . . 88x32x27.3mm

PACKAGE LIST

Transmitter x1, Receiver x 1, Cloth Bag x1, Manual x1, USB Cable x 1
If you have any more questions about this product, please do not hesitate to contact the
Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com
RECEIVER
Rechargeable 3.7V/360mAH Li
battery
6.35mm gauge mono audio plug,
120° rotatable
--
<-81dBm
--
MADE IN CHINA
