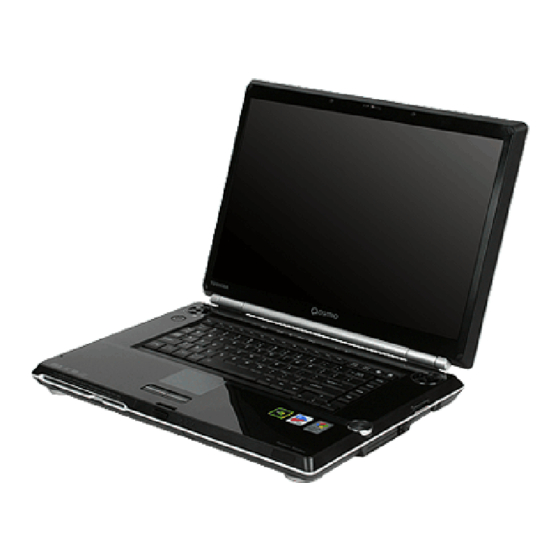

Toshiba Qosmio G25-AV513 Specifications

Qosmio®
Model Name Description
Qosmio G25-AV513 Intel ® Pentium® M processor 760, 1024MB (2x512MB) DDR SDRAM, 120GB HDD
[60GB HDD (5400RPM) + 60GB HDD (5400RPM)], 17" WXGA+, DVD SuperMulti
Double Layer, 802.11a/b/g, 128MB NVIDIA ® DDR SDRAM VRAM, Bluetooth®
Version 2.0, Microsoft® Windows® XP Media Center Edition 2005, TV Tuner,
TOSHIBA QosmioPlayer
System Characteristics
Operating System
•
Microsoft® Windows® XP Media Center Edition 2005
•
TOSHIBA® QosmioPlayer for quick access to CD, DVD and TV
Playback
2
CPU
Intel® Centrino™ Mobile Technology featuring
•
Intel Pentium® M processor 760 [2.00GHz, 2MB L2 cache,
533MHz FSB]
•
Mobile Intel 915PM Express Chipset
•
Intel PRO/Wireless LAN 2915ABG Mini (802.11a/b/g)
4
Memory
•
1024MB (2x512MB) DDR2 SDRAM, expandable to 2048MB
(both memory slots may be occupied at the time of purchase)
Dual channel supported (requires two memory
o
modules)
•
2 memory slots (both memory slots may be occupied at the time
of purchase); 2 user upgradeable SODIMM slots.
Mass Storage
•
120GB using two Serial ATA (SATA) Hard Disk Drives
Primary+Secondary - 60GB HDD (5400RPM) +
o
60GB HDD (5400RPM)
RAID 0 (Striping) and RAID 1 (Mirroring)
supported by TOSHIBA RAID Software*
•
HDD Interface – Serial ATA
•
Optical Disk Drive(s) – Slot Loading
Fixed DVD SuperMulti Double Layer drive
o
Maximum Speed
o
CD-ROM(24x:read), CD-R(24x:write), CD-
RW(10x:write), DVD-ROM(8x:read), DVD-
R(8x:write), DVD-RW(4x:write),
DVD+R(8x:write), DVD+R [Double Layer]
(2.4x:write), DVD+RW(4x:write), DVD-
RAM(5x:write)
Compatibility
o
CD-ROM(read), CD-R(read/write), CD-
RW(read/write), DVD-ROM(read), DVD-
R(read/write), DVD-RW(read/write),
DVD+R(read/write), DVD+R(Double
Layer)(read/write), DVD+RW(read/write),
DVD-RAM(read/write)
ODD Interface – Enhanced IDE
o
TV Tuner
•
TOSHIBA TV Tuner
Region/Standard – US/NTSC
o
Video-in – RF, AV-IN (Composite/S-Video/Line-IN)
o
•
Parental Control and Closed Caption – Yes
•
TV Tuner Enhancements: 3D Y/C separator, Digital Noise
Reduction, 10bit AD convert, Digital Noise reduction, Time base
corrector, Resolution (720x480)
o
7
Display
•
TOSHIBA Ultimate TruBrite™ 17.0" diagonal WXGA+ TFT
display
Resolution – 1440 x 900 internal LCD
o
Brightness Level
o
When Plugged into AC – Up to 500 Cd/m
When in Battery mode – Up to 220 Cd/m
Contrast – 500:1
o
Viewing angle
o
Horizontal – 130 degrees
Vertical – 110 degrees
© Copyright 2005 Toshiba America Information Systems Inc. ("TAIS"). All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Qosmio G25 Series Revision 1.02 25-Apr-05 DMD Source: CB V1.10 / Qosmio G25 SPD V1.00
1
3
5
6
8 2
– ( Cd/m )
•
Brightness Control – FN+F6/ F7, AV Button, TOSHIBA Power
Saver
QosmioEngine
•
In Windows OS: Digital sharpness, Black/White enhancer,
Digital over drive, Color adjustment
•
When using Monitor in function: De-Interlacing, Edge
Enhancement, 3D Y/C separator, Digital Noise Reduction, 10bit
AD convert
•
Picture Enhancement Utility
9
Graphics
•
NVIDIA® GeForce™ 6 GO 6600 with 128MB DDR SDRAM
VRAM
o
•
Internal LCD Support Resolution - 1440 x 900 WXGA+
Input Devices
•
Keyboard
o
o
o
o
•
Mouse:
o
o
•
Others:
o
o
o
•
Remote Control(s)
o
Expandability
•
2 available expansion memory slots (both slots may be
occupied depending on your configuration at the time of
purchase)
•
1 PCMCIA PC Card slot – supports 1 Type II PC Card slot
•
Bridge Media Adapter (Secure Digital®, Memory Stick™,
Memory Stick PRO™, Multi Media Card, xD Picture Card
[shared slots])
Communications
•
TOSHIBA Software Modem
(56K data, 14.4K fax) support
•
Intel® PRO/100 VE Network Connection - 10/100 Base-TX
Ethernet
•
Intel(R) PRO/Wireless LAN 2915ABG Mini PCI Adapter
•
Bluetooth® version 2.0+EDR with TOSHIBA Bluetooth Stack
software
Ports and Slots
•
RGB (monitor out port)
•
2
4 USB (v2.0) ports
•
2
TV-Out (2 ports): S-Video out and Component out via D-
connector port
•
RJ11 modem port/RJ45 w/LED LAN port
•
i.LINK™ 1394
•
S/P DIF (shared with headphone jack)
Part Number
PQG20U-10K00E
PCI Express x16 interface
84 key US keyboard, 2.7mm key stroke, 6mm
keyboard height, 19.05mm key pitch
Hot Key Functions (FN); please see electronic User's
Guide for more information
Windows Key Function
Application Key Function
TouchPad™ pointing device
TouchPad Enable/Disable (FN+F9 or by help of
software)
AV Button, TV Button
CD Control Buttons
Skip to Previous Track, Play, Stop, Skip to
Next Track
Presentation Button
Microsoft® Windows® Media Center Edition 2005
remote control – external USB RC-6 IR Blaster
receiver
Power On/Shut Down, CD/DVD/Digital
Audio play control, Volume control, TV
button
10
AMR - V.90/V.92 Data + Fax
UPC Code
032017339248
