1. Intended use:
The RACK 19" cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in medium and big companies. It
is intended for devices manufactured in enclosures of the 19'' standard. Due to the RACK cabinets, the devices are aesthetically
mounted and protected against mechanical damage.
2. Specifications:
SPECIFICATIONS
Mounting dimensions:
External dimensions:
Net/gross weight:
Materials:
Static load:
Use:
Notes:
Certificates, declarations:

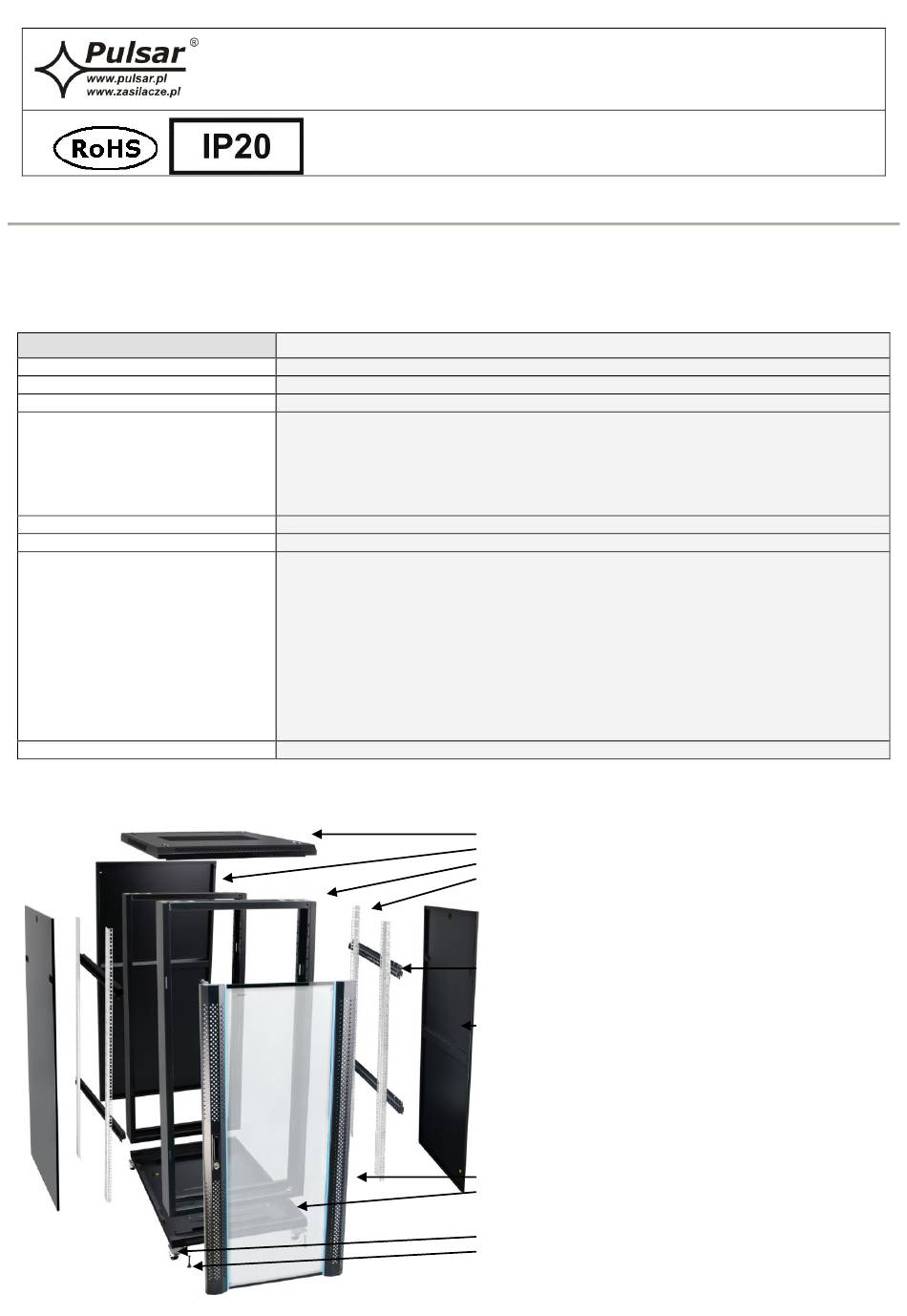

3. Structure of the RACK cabinet.
Name:
RACK cabinet, floor standing, ready-to-assemble
- RACK mounting rails: cold-rolled steel SPCC 2mm RAL 9004 - bolted
- horizontal mounting rails: cold-rolled steel SPCC 1,5mm RAL 9004 - bolted
- frame: cold-rolled steel SPCC 1,2mm RAL 9004 - welded
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004 - hinged
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004 - removable
- rear door: cold-rolled steel SPCC 1,2mm RAL 9004 - hinged
- adjustable distance between front and rear RACK rails
- ventilation holes in the front door, top and bottom panel
- possible mounting of a 2-fan tray in the top panel – RAWP1000
- cable ducts in the top and bottom panel
- 4 casters without locks and 4 leveling feet included
- possible assembly of a 100mm high plinth - RAC1610
- lockable front door (2 keys in set)
- lockable rear door (2 keys in set)
- side panels - lock assembly possible - RAZB16
- the possibility of installing a set of RAPU-S grounding wires in the rack
- ready-to-assemble
INSTALLATION GUIDE
ENGLISH
code: RS4261GD
Edition: 2 from 18.10.2013
Supersedes: 1 from 20.11.2012
W=19", H=42U
W=600, H=2055, D=1000 [mm, +/-2]
124,1 / 132,3 [kg]
800 kg (with leveling feet)
inside, IP20
RoHS
top panel
rear door
frame
RACK rail
horizontal rail
side panel
front door
bottom panel
2" caster without lock
leveling foot
42U/600x1000
IM RS4261GD
EN*
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pulsar RS4261GD
Summary of Contents for Pulsar RS4261GD
- Page 1 INSTALLATION GUIDE ENGLISH code: RS4261GD Name: RACK cabinet, floor standing, ready-to-assemble 42U/600x1000 IM RS4261GD Edition: 2 from 18.10.2013 Supersedes: 1 from 20.11.2012 1. Intended use: The RACK 19” cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in medium and big companies. It is intended for devices manufactured in enclosures of the 19'' standard.
- Page 2 4. Assembling instructions: The free standing, ready-to-assemble RACK cabinet is delivered in 5 separate packages. 4.1) Lay two frames of the RACK cabinet (package 2/5 and 3/5) Fig.1 4.2) Attach the bottom panel to the cabinet’s frames from the left, and the top panel from the right (package 1/5). Bolt with screws with nuts (16pcs - package 1/5).
- Page 3 4.4) From the inside of the cabinet’s frames (at front and back), mount two cage nuts on ¼ and ¾ of cabinet’s height, accordingly to the figure below. Fig.4 4.5) In horizontal rails (package 1/5), mount two cage nuts at front and back, as shown in Fig.4. back front Fig.5...
- Page 4 4.7) Mount the RACK rails from the inside, as in Fig.7. Fig.7 4.8) Mount the side panels, front and rear doors - Fig.8. Fig.8 MANUFACTURER Pulsar K.Bogusz Sp.j. Siedlec 150, 32-744 Łapczyca Tel. 14-610-19-40, Fax. 14-610-19-50 e-mail: biuro@pulsar.pl www.pulsar.pl www.zasilacze.pl WARRANTY 12 months from the date of purchase.
