Pulsar RW1266GD Installation Manual

1. Intended use:
The RACK 19" cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies
or households. It is intended for devices manufactured in enclosures of the 19'' standard. Due to the RACK cabinets, the
devices are aesthetically mounted and protected against mechanical damage.
2. Specifications:
SPECIFICATIONS
Mounting dimensions:
External dimensions:
Net/gross weight:
Materials:
Static load:
Use:
Notes:
Certificates, declarations:

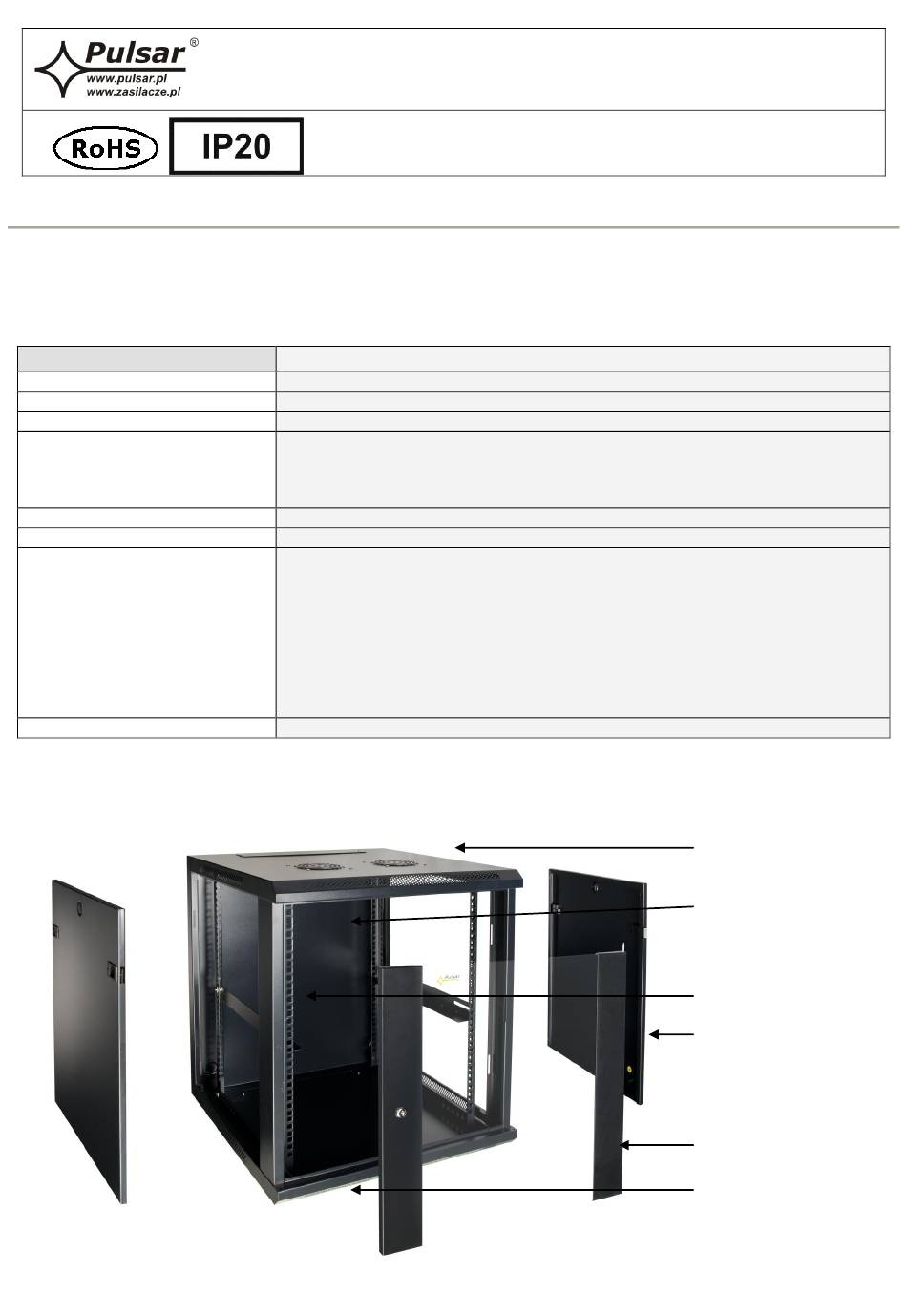

3. Structure of the cabinet.
INSTALLATION GUIDE

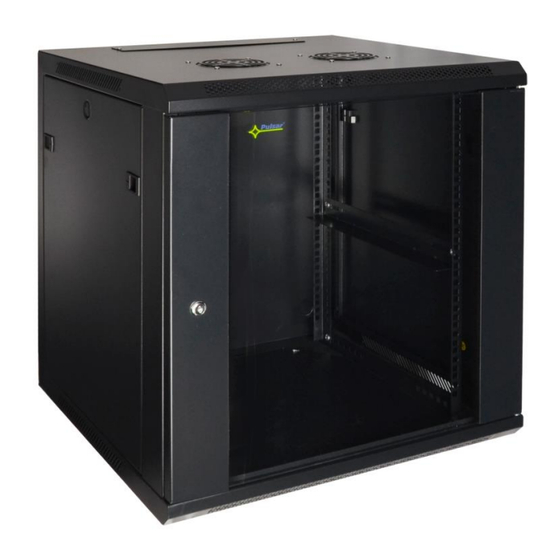

Name: RACK cabinet, wall monted, fully assembled 12U/600x600
W=600, H=635, D=600 [mm, +/-2]
- RACK mounting rails: cold-rolled steel SPCC 1,5mm RAL 9004 - bolted
- frame: cold-rolled steel SPCC 1,2mm RAL 9004 - welded
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004 - hinged
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004 - removable
- adjustable distance between front and rear RACK rails
- ventilation holes in the top and bottom panel
- possible mounting of 1 or 2 fans in the top panel - RAW1 / RAW2
- cable ducts in the rear, top and bottom panel
- wall-mounting - 4 bolts (not included)
- lockable front door (2 keys included)
- side panels - lock assembly possible - RAZB16
- the possibility of installing a set of RAPU-W grounding wires in the rack
- fully assembled
ENGLISH
code: RW1266GD
Edition: 2 from 18.10.2013
Supersedes: 1 from 20.11.2012
W=19", H=12U
28 / 29 [kg]
60 kg
inside, IP20
RoHS
IM RW1266GD
top panel
rear panel
RACK rail
side panel
front door
bottom panel
EN*
