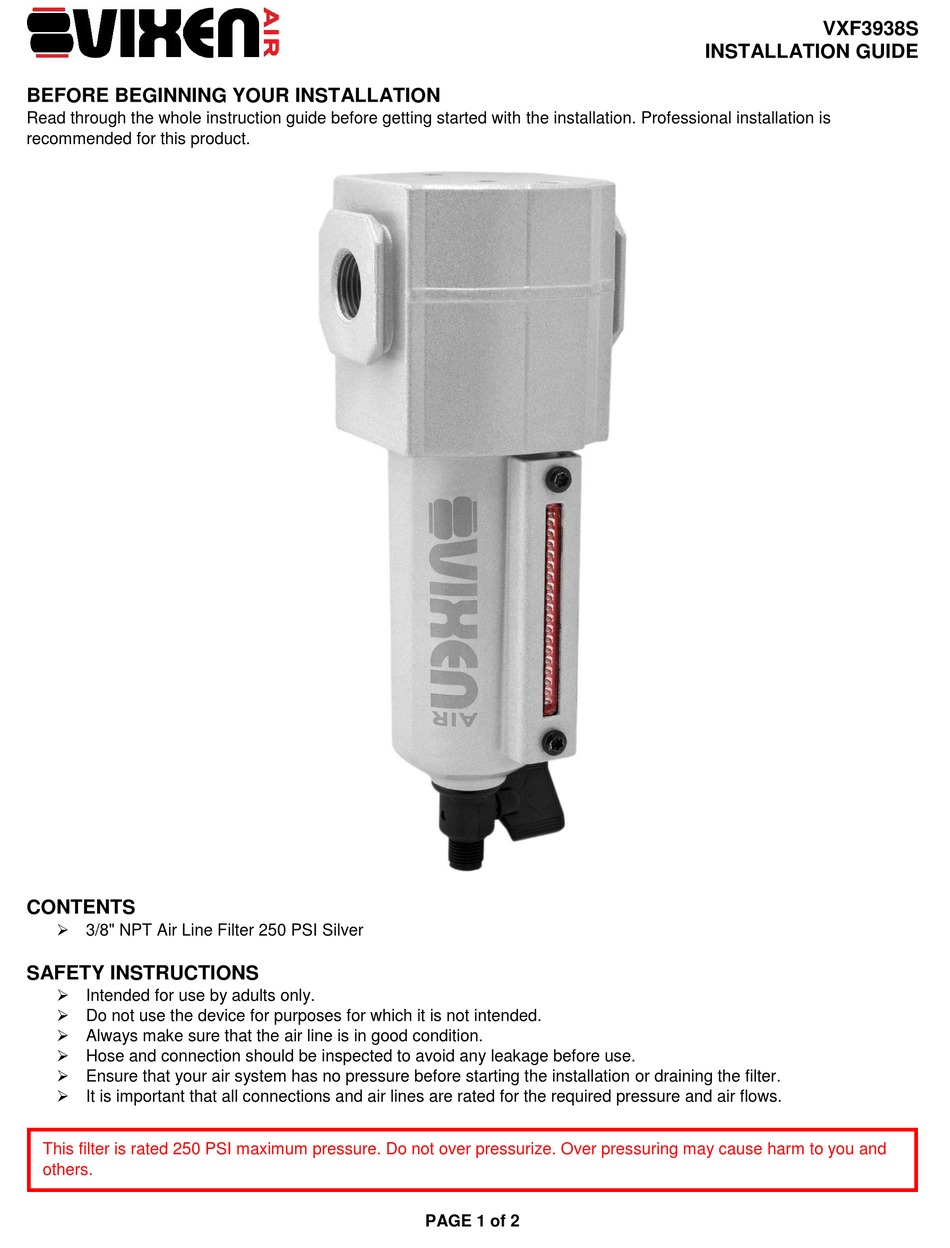

BEFORE BEGINNING YOUR INSTALLATION
Read through the whole instruction guide before getting started with the installation. Professional installation is
recommended for this product.
CONTENTS
 3/8" NPT Air Line Filter 250 PSI Silver

SAFETY INSTRUCTIONS

 Intended for use by adults only.
 Do not use the device for purposes for which it is not intended.
 Always make sure that the air line is in good condition.
 Hose and connection should be inspected to avoid any leakage before use.
 Ensure that your air system has no pressure before starting the installation or draining the filter.
 It is important that all connections and air lines are rated for the required pressure and air flows.
This filter is rated 250 PSI maximum pressure. Do not over pressurize. Over pressuring may cause harm to you and
others.
PAGE 1 of 2
VXF3938S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VXF3938S and is the answer not in the manual?

Questions and answers

Summary of Contents for Vixen Air VXF3938S

  • Page 1 VXF3938S INSTALLATION GUIDE BEFORE BEGINNING YOUR INSTALLATION Read through the whole instruction guide before getting started with the installation. Professional installation is recommended for this product. CONTENTS  3/8" NPT Air Line Filter 250 PSI Silver SAFETY INSTRUCTIONS  Intended for use by adults only.
  • Page 2 VXF3938S INSTALLATION GUIDE INSTALLATION  Before installation, check whether the connections used match the maximum pressure of the filter.  Shut off air pressure from air system. Install the filter vertically with the bowl down in the air line. Ensure that the filter is installed with inlet/outlet air flow in the proper direction of arrow on the unit.
