P1AM-200 Arduino
Compatible CPU

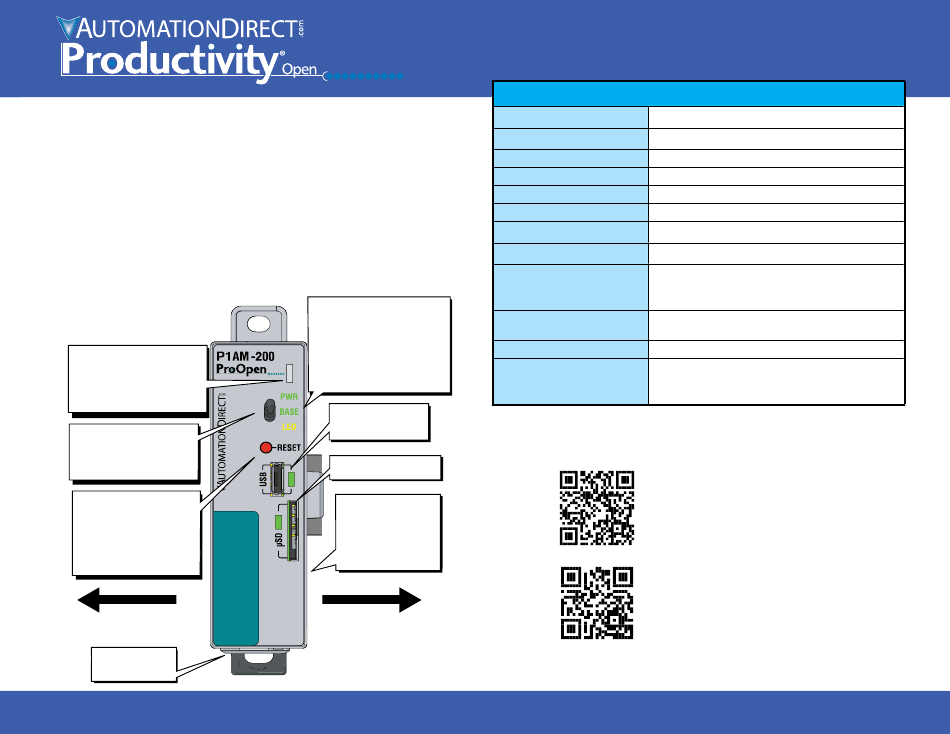

The P1AM-200 is an Arduino-compatible CPU. It uses
the Atmel SAMD51P20 and can be programmed in
C++ using the Arduino IDE or in CircuitPython using
any text editor. It interfaces with all P1000 Series
I/O modules connected to the right side and most
Arduino MKR form factor shields connected to the
left side.
Neopixel Compatible
Single-wire LED
- Connected to
NEOPIXEL_PIN or Digital
Pin 49 (Arduino),
board.NEOPIXEL (CircuitPython)
Toggle switch
- Connected to
SWITCH_BUILTIN or Digital
Pin 31(Arduino),
board.SWITCH (CircuitPython)
RESET Button
- Press once to manually
reset code execution,the Base
Controller, and all P1000
Series modules.
-Press twice quickly to put the
P1AM CPU into bootloader
mode.
Arduino MKR shields &
Productivity Open shields
External Power
- 24VDC on bottom
connector
MKR
®
CPU Status Indicators
- PWR LED indicates
power applied
- BASE LED indicates when
base controller is powered
and initialized
- LED connected to LED_BUILTIN
or Digital Pin 32 (Arduino),
board.LED (CircuitPython)
USB Micro Interface
- Programming
- Online monitoring
microSD Port
- removable flash memory
Additional Features
- ATECC608A Crypto
co-processor
- 2kb EEPROM with
unique MAC address
- 16MB QSPI Flash
- Supercap backed RTC
P1000 I/O Modules
General Specifications
Operating Temperature
0° to 60°C (32° to 140°F)
Storage Temperature
-20° to 70°C (-4° to 158°F)
Humidity
5 to 95% (non-condensing)
Environmental Air
No corrosive gases permitted
Vibration
IEC60068-2-6 (Test Fc)
Shock
IEC60068-2-27 (Test Ea)
Heat Dissipation
4W
Enclosure Type
Open Equipment
Productivity1000 I/O modules connect on the right
Module Location
side of module. Power supply, P1AM Shields and MKR
Shields connect on the left side on the module.
Number of Supported
8
Modules
Weight
82g (2.89 oz)
UL 61010-1 and UL 61010-2-201 File E139594, Canada
Agency Approvals
& USA
CE*
*See CE Declaration of Conformance for details.
Link to GitHub
Link to full additional resources
