DELEX DSI ES8302 Dual Arm Installation And Operation Instruction Manual

Barrier arm optical turnstile

Advertisement

Quick Links

ES8302 Dual Arm
BARRIER ARM OPTICAL TURNSTILE
INSTALLATION AND OPERATION
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSI ES8302 Dual Arm and is the answer not in the manual?

Questions and answers

Summary of Contents for DELEX DSI ES8302 Dual Arm

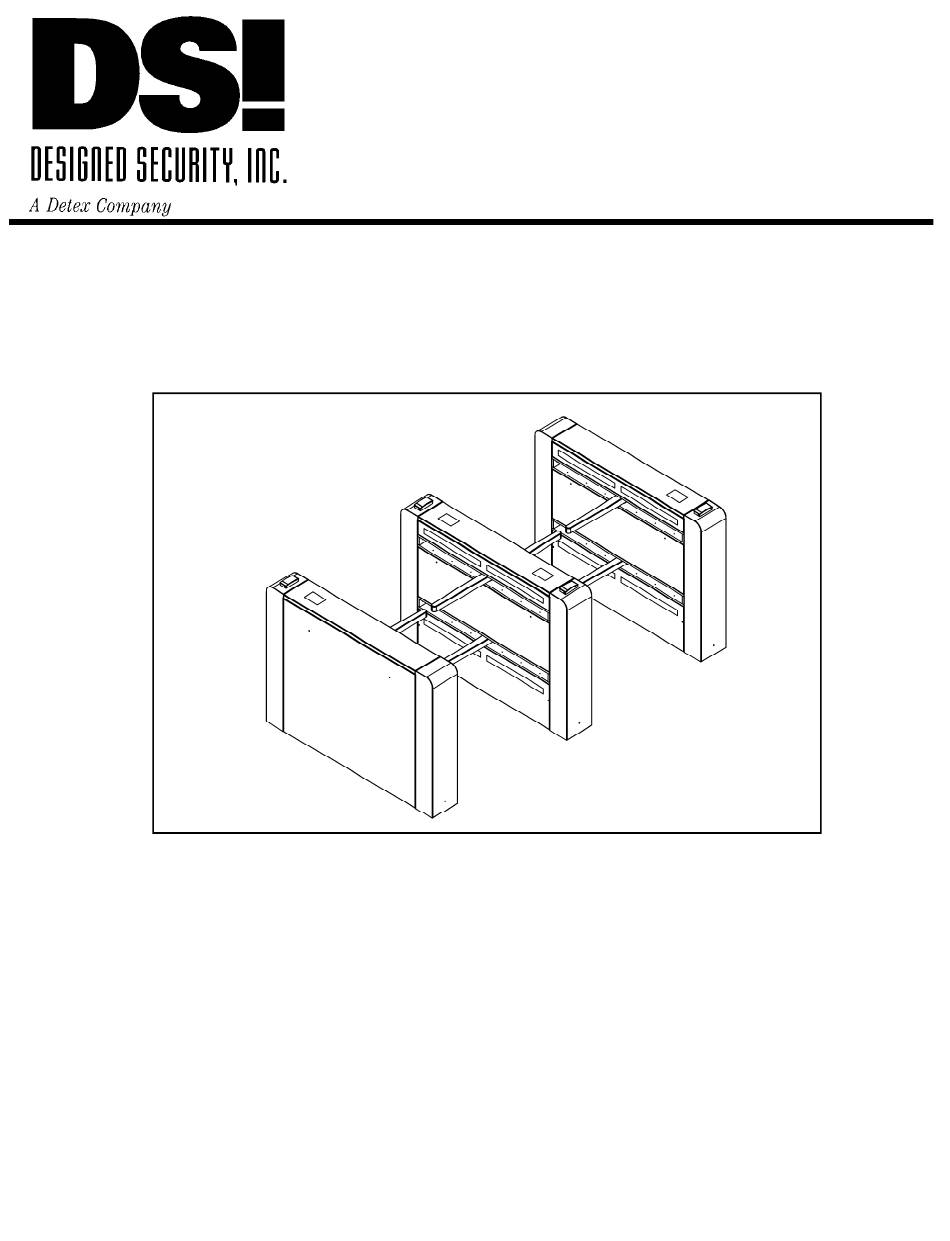

  • Page 1 ES8302 Dual Arm BARRIER ARM OPTICAL TURNSTILE INSTALLATION AND OPERATION INSTRUCTIONS...
  • Page 3 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com CUSTOM NOTES INS8302...
  • Page 5: Site Preparation

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com SITE PREPARATION INS8302...
  • Page 7: Pre-Installation Requirements

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com Refer to LANE PLACEMENT ERGONOMICS in the Appendix for information regarding planning considerations which can maximize efficient traffic flow and minimize nuisance alarms. Taking into consideration any installation from the perspective of providing access control while minimizing the impact on the user’s daily routine may allow security goals to be met more effectively.
  • Page 9: Installation

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com INSTALLATION INS8302...
  • Page 11 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com INITIAL LAYOUT Placement : The bollards are designed to be placed in a parallel arrangement, not to exceed 48 inches between  bollards. Spacing of 36”...
  • Page 12 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com BOLLARD ORIENTATION SECURE SIDE ELECTRONICS LOCATION Secure Side End ENTRANCE SIDE (UNSECURE) SECURE (EXIT)/UN-SECURE (ENTRY) SIDES— DEFINED In the above illustration the orientation of the bollards is shown to help installers understand the proper placement of the Turnstiles in reference to the direction of traffic.
  • Page 13 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com BOLLARD INTERNAL ACCESS PANEL REMOVAL STEPS Insert “T-Handle” Hex-key wrench into small hole near the top, side edge of panel.  Turn 3/4 turn Counter-Clockwise to release latch. ...
  • Page 14: Vertical Alignment

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com LAYOUT AND MOUNTING BOLLARD LAYOUT  Using a chalk line, or equivalent method, lay out the bollard arrangement. Bollard’s positions should be parallel and square with each other.
  • Page 15: Component Location

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com COMPONENT LOCATION B & A SENSORS ENCODER BARRIER ARM ELECTRONICS PACKAGE BARRIER ARM C SENSORS D SENSORS MOUNTING MOTOR MOUNTING POINTS & POINTS & CABLE ACCESS CABLE ACCESS END VIEW...
  • Page 16: Electronics Package

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com ELECTRONICS PACKAGE N/O OR N/C OUTPUT JUMPER JUMPER LOCATED BESIDE EACH OUTPUT RELAY MAY BE CONFIGURED FOR N/O OR N/C OPERATION (DEFAULT IS N/O) Move Jumper to 831 RELAY CONTROLLER...
  • Page 17: Component Description

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com COMPONENT DESCRIPTION Electronics Package The Electronics are found in the right-hand pedestal as seen when facing the B-Side of the bollard. (A-side holds the #2 Motor and reflectors for the lane.) The Motor Controllers control the local arm and the remote arm.
  • Page 18: Motor/Gearbox Assembly

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com BARRIER ARM DRIVE ASSEMBLY “B” & “A” SENSORS ENCODER BARRIER ARM BARRIER ARM LOCKING ARM SOLENOID (optional) MOTOR/GEARBOX ASSEMBLY COUPLER The Motor/Arm Assembly is the center section of the bollard, located between the two pedestals. Located above the Barrier Arm housing is the Encoder.
  • Page 19 WIRING...
  • Page 20: Cable Routing

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com WIRING CABLE ROUTING The Motor 2 and Encoder 2 cables must be routed between the “A” and “B” Sides of each  lane. (15 ft. cables included) Optional Locking Arm: Additional Locking Solenoid cable is required to be pulled along with the standard ...
  • Page 21 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com ENCODER 2 CONNECTOR DETAIL ENCODER 2 PIN-1 TAB COLOR Shield Black Vacant White Green MOTOR 2 CONNECTOR DETAIL MOTOR 2 PIN-1 TAB COLOR White Black Shield...
  • Page 22 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com INPUT AND OUTPUT CONNECTION REQUIREMENTS Inputs from Access Control System include: Dry contact closure indicating valid Entry card read Entry Valid Card Read (Momentary Closure of .5 Second or Less recommended) Exit Valid Card Read Dry contact closure indicating valid Exit card read...
  • Page 23 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com BRIDGE PANEL DETAIL POWER CONNECTOR  Connect 4 Amp 24 VoltDC Power Supply to the “24VDC POWER INPUT” connector. Pin 1 is “+”. See page 34 for Power Wire Gauge ...
  • Page 25: Setup And Operation

    SETUP & OPERATION...
  • Page 27: Sensor Alignment

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com SENSOR ALIGNMENT If necessary, you may adjust Sensor alignment by applying a slight twist and/or bend to the sensor bracket until the sensor reflects directly off the opposing reflector. Check for Alignment by following these steps: Enable Bypass mode by shorting the Bypass Input terminals.
  • Page 28: Final Testing Procedure

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com FINAL TESTING PROCEDURE Provide Input or State from Left Column, Look for responses marked with OUTPUTS POSITION INPUTS VALID INVALID ALARM TIMEOUT BYPASS AUDIBLE ENTRY EXIT CLOSED...
  • Page 29 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com GUIDELINES FOR EVERYDAY USE (PROVIDE COPIES TO ALL TURNSTILE USERS) Optical Turnstiles are provided for greater security in your workplace. They help ensure that only authorized individuals will be allowed into the secure areas of your facility. You may find daily use of Optical Turnstiles becomes routine as you follow these basic guidelines: USER VALIDATION “ID”...
  • Page 30: Training Users

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com GUARD/OPERATOR - OPTICAL TURNSTILE GUIDELINES (LEAVE COPY AT GUARD OR OPERATOR DESK FOR REFERENCE) Making an optical turnstile installation work well depends upon a number of factors being present. Users must be provided adequate instruction.
  • Page 31 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com APPENDIX INS8302...
  • Page 33: Specifications

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com SPECIFICATIONS Power: 24-26 VDC @ 4 Amps per walkway Wiring: Power- Less than 50 feet; -14 Gauge 50 to 100 feet; -12 Gauge (See Power Wire Gauge calculator on page 34 for detail) Signal- 50 to 200 feet;...
  • Page 34 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com POWER WIRE GAUGE CALCULATOR WORKSPACE EXAMPLE STEP BY STEP COLUMN Specify total Current load, in Amps, of all devices sharing this trunk. 4 Amps ...
  • Page 35 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com OPTICAL TURNSTILE ERGONOMICS Prior to laying out the lanes, some information should be understood, regarding efficient placement of the bollards, traffic flow and minimizing nuisance-alarms, in order to make your installation effective at providing security with the least amount of intrusion into the user’s daily routine.
  • Page 36 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com When planning for an elevator lobby consider the maximum number of users that may need to be accommodated while waiting for the elevator. Allow adequate space for the users to congregate beyond the turnstiles while not restricting traffic flow through the lane(s).
  • Page 37: Care And Cleaning

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com CARE AND CLEANING Congratulations on your purchase of a DSI Optical Turnstile system. This guide provides information for cleaning and maintaining the finishes, materials and optical paths of DSI’s standard finishes on our turnstile line.
  • Page 38: Troubleshooting Tips

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Email: dsi@dsigo.com TROUBLESHOOTING TIPS The following are a few of the most common questions the Customer Support group answers. Symptom: Erratic Arm Behavior The Barrier Arms bump several times at the end of travel, or do not line up with one another properly when centering.
  • Page 39 WARRANTY The DSI Optical Turnstile Product you have purchased is warranted to be free of defects in material and workmanship when properly installed, used and maintained according to instructions. DSI will, for a period of three (3) years from date of purchase, repair or replace any part which, upon our examination, proves to be defective under normal use.
